Preliminary Inspection

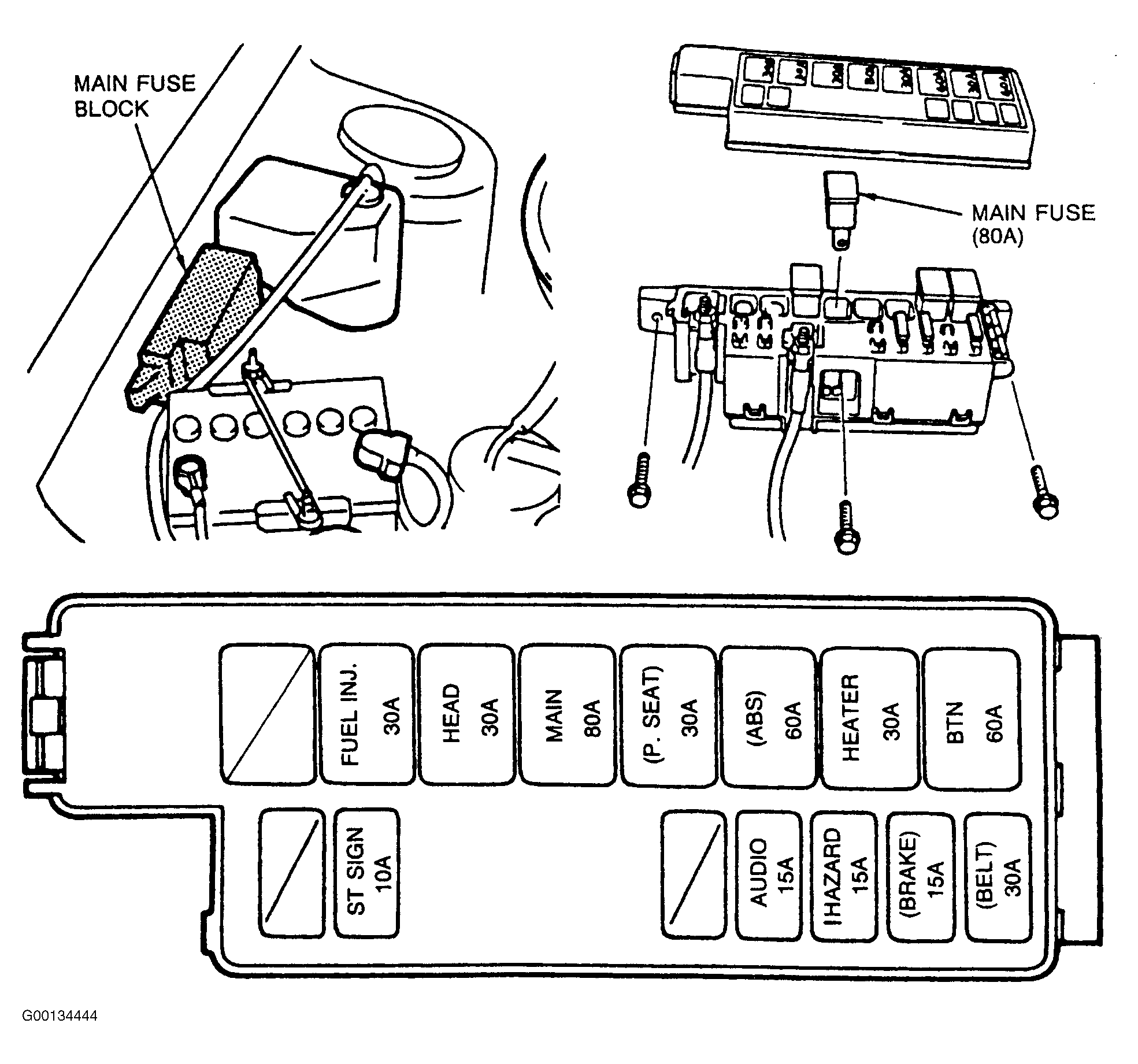

Verify customer complaint by operating suspected system. Visually inspect for obvious signs of mechanical and electrical damage. Inspect for blown fuses. For fuse identification, see Fig 1 and Fig 2 . Inspect for loose or corroded connections, damaged wiring harnesses and/or switches. Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Ensure any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. If no faults are found, diagnose by symptom. See SYMPTOM INDEX table under SYSTEM TESTS.
