Ignition Advance Curves (MPV)

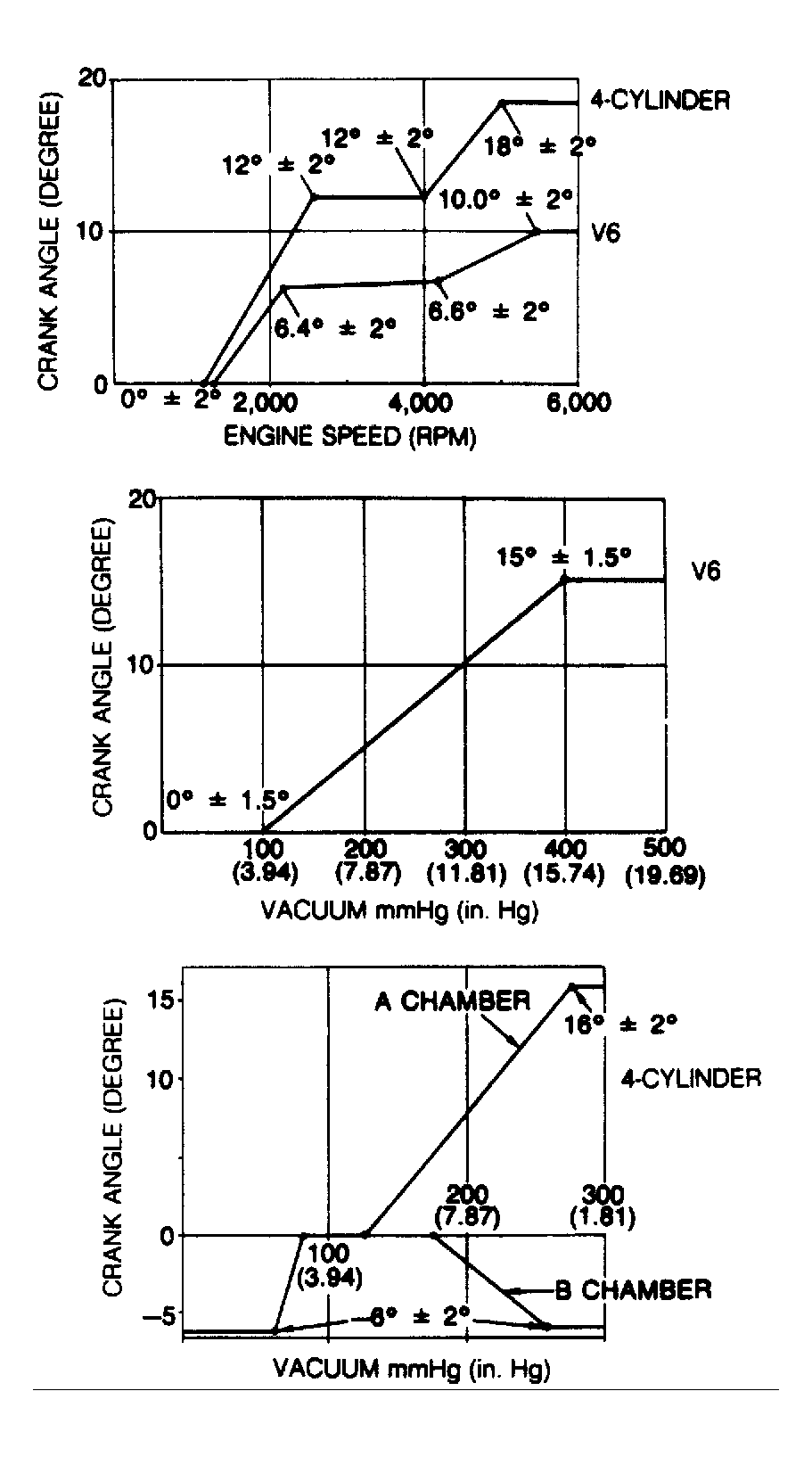

Fig 1: Ignition Advance Curves (MPV)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
