Code 17: SOHC Feedback System

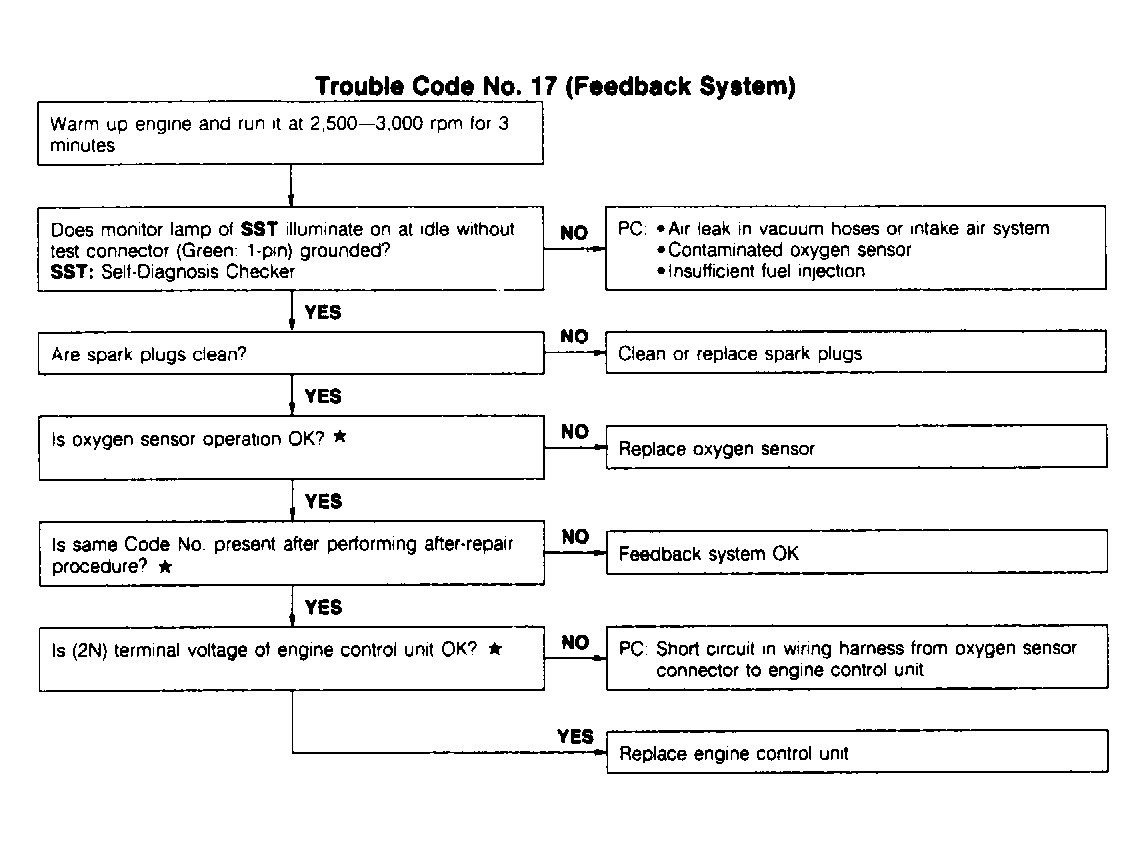

Fig 1: Code 17: Feedback System Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
