P/S 3: Failure Of Angle Sensor Or Wiring Harness Control Unit To Angle Sensors); P/S 2: Failure Of Speed Sensor Or Wiring Harness (Control Unit To Meter)

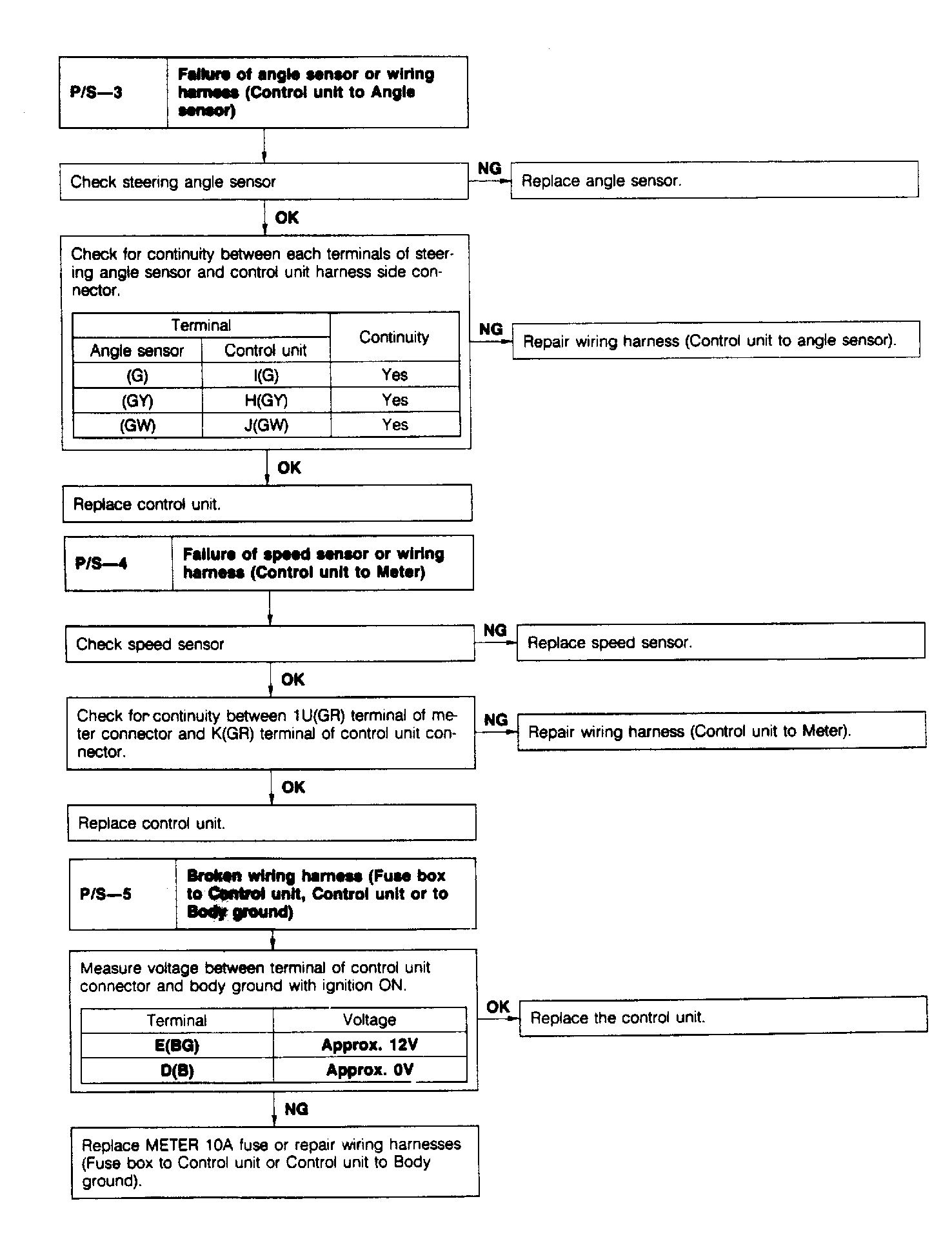

Fig 1: P/S 3 & 4 Flow Chart

Courtesy of MAZDA MOTORS CORP.
