Emergency Jacking

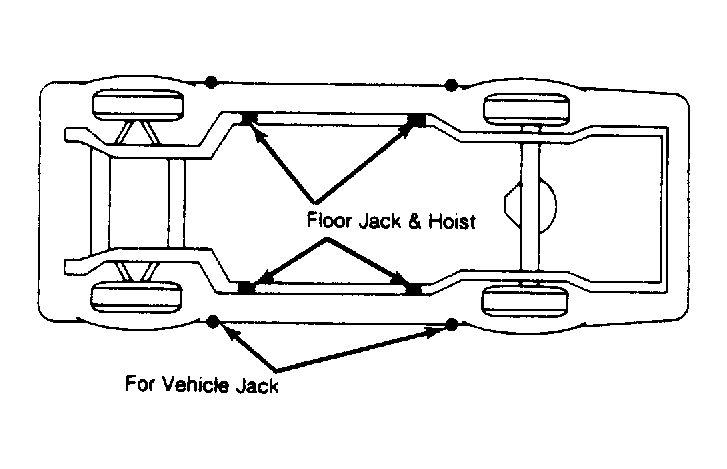

Points designated on outline of body were specifically designed to facilitate use of vehicle's own jack. Jacking points are indicated by circular dots on outline of body. See Figure-6.

If floor jack or hoist is employed, exercise extreme care to avoid damaging the outer body shell. On Navajo, jack should be positioned under front axle or shock absorber as near to wheels as possible.
