Diagnostic Code Access

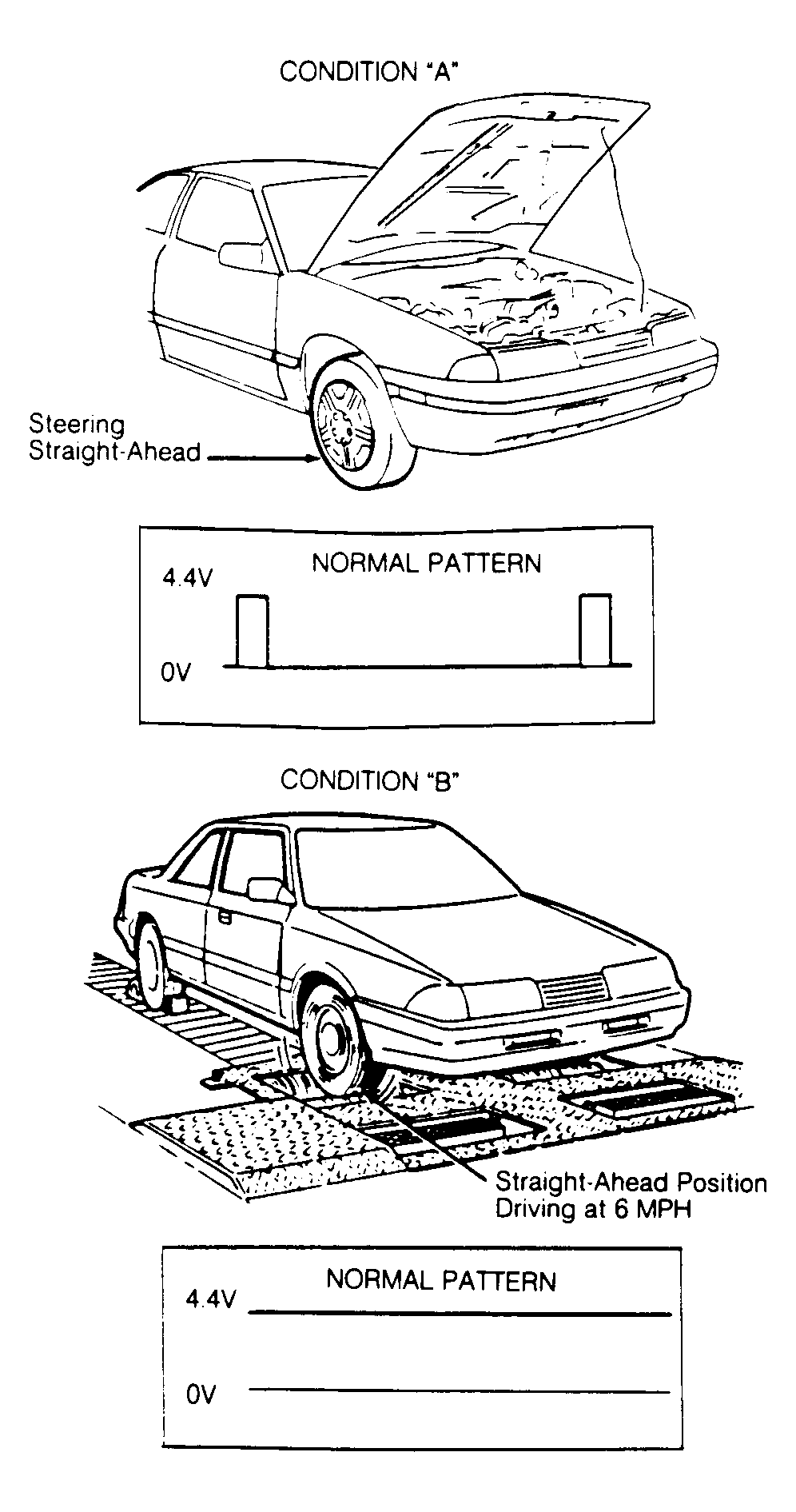

To access self-diagnostic codes, connect a voltmeter between test connector Yellow/Green wire and ground. Diagnostic codes are displayed as voltage output pulses. Test system as indicated in CONDITION "A" and CONDITION "B". See Figure .
