Code 34: Idle Speed Control

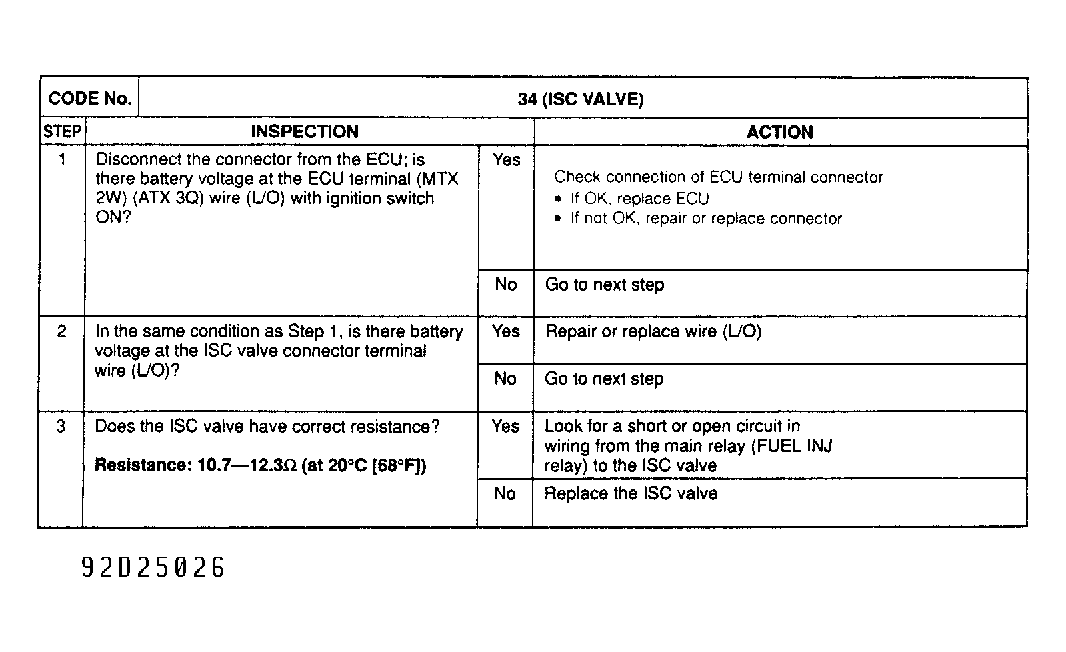

Fig 1: Trouble Code No. 34 Idle Speed Control
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
