Test Procedures

For test procedures, see Fig 1 and Fig 2 .

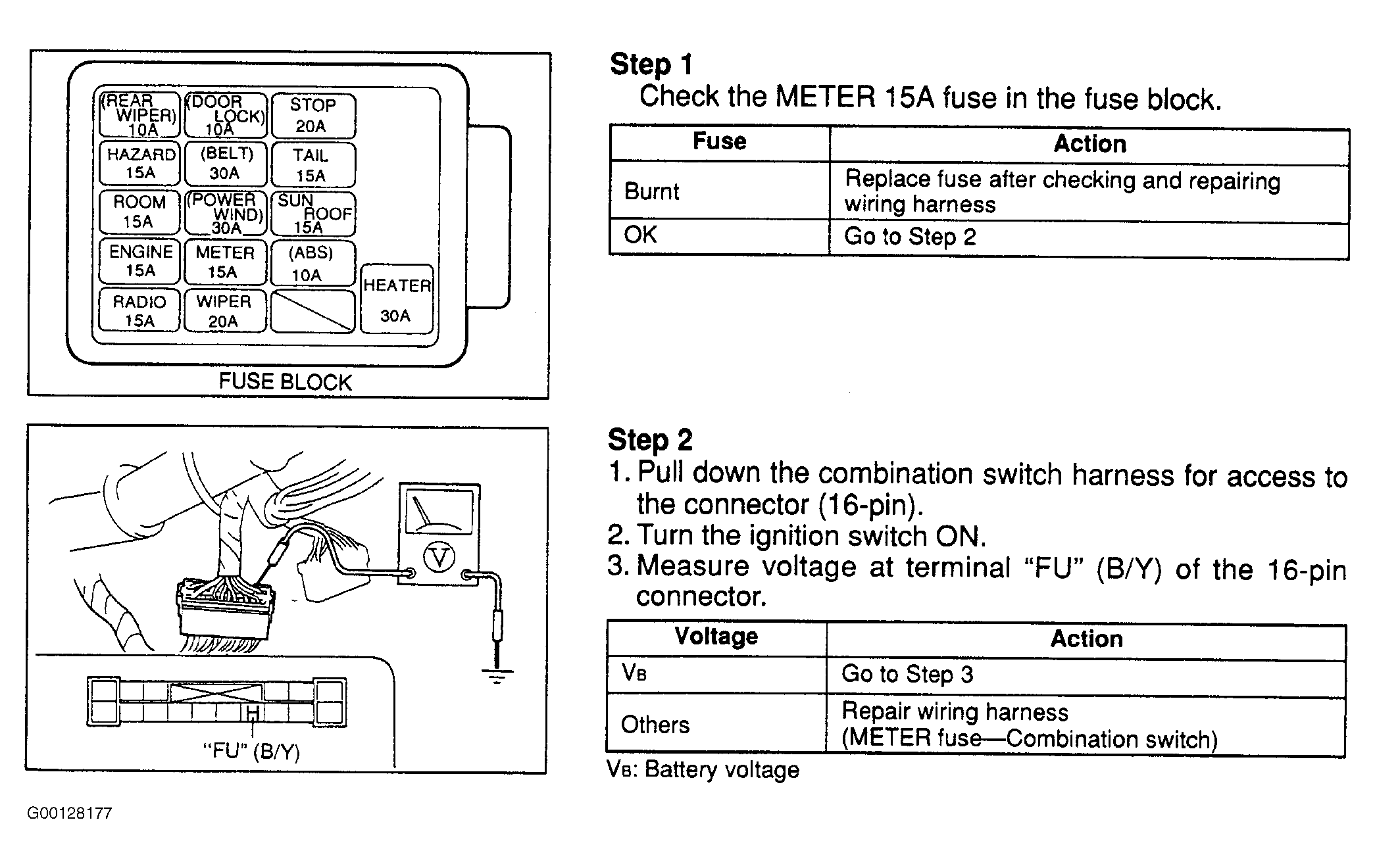

Fig 1: Flowchart No. 2 (1 Of 2)
G00128177Courtesy of MAZDA MOTORS CORP.

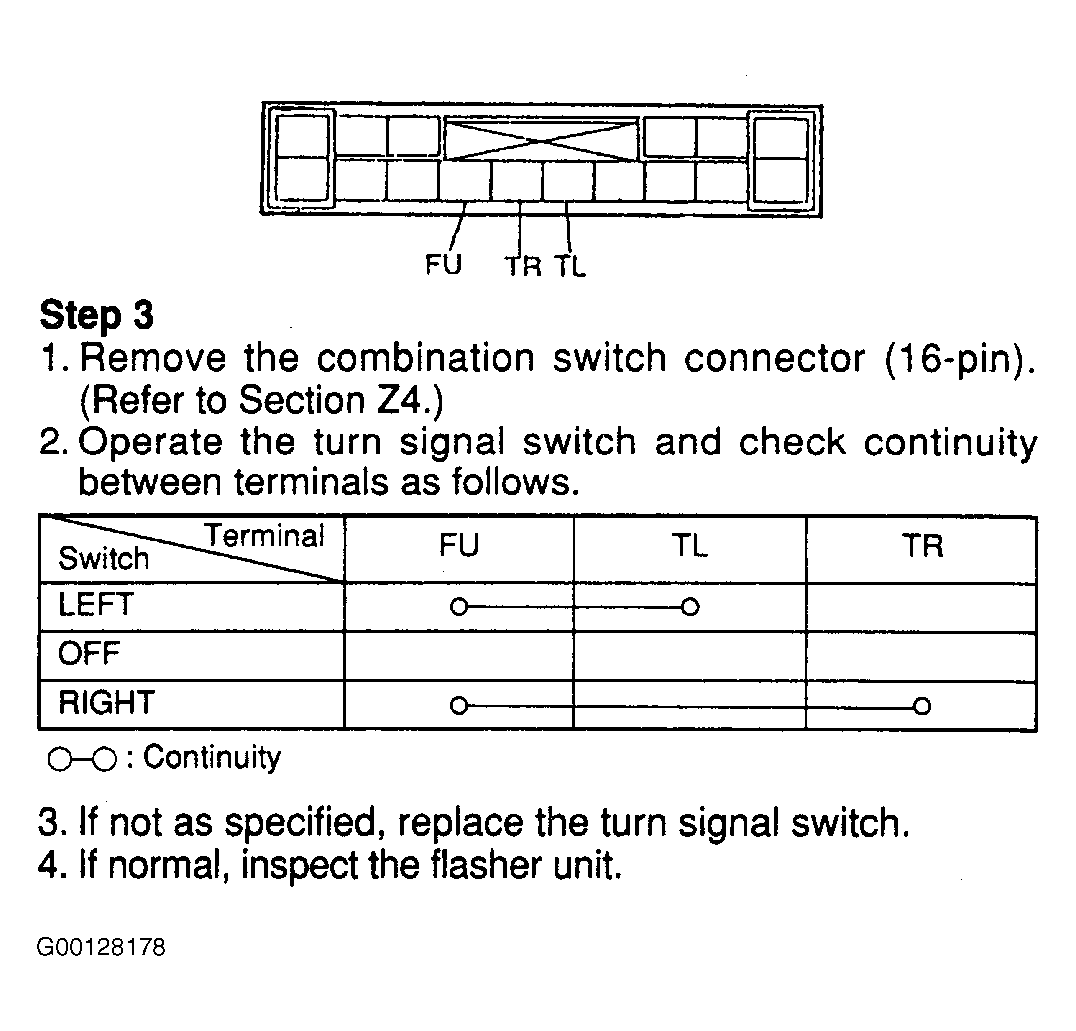

Fig 2: Flowchart No. 2 (2 Of 2)
G00128178Courtesy of MAZDA MOTORS CORP.
