Code 2: Ne2 Signal-Distributor

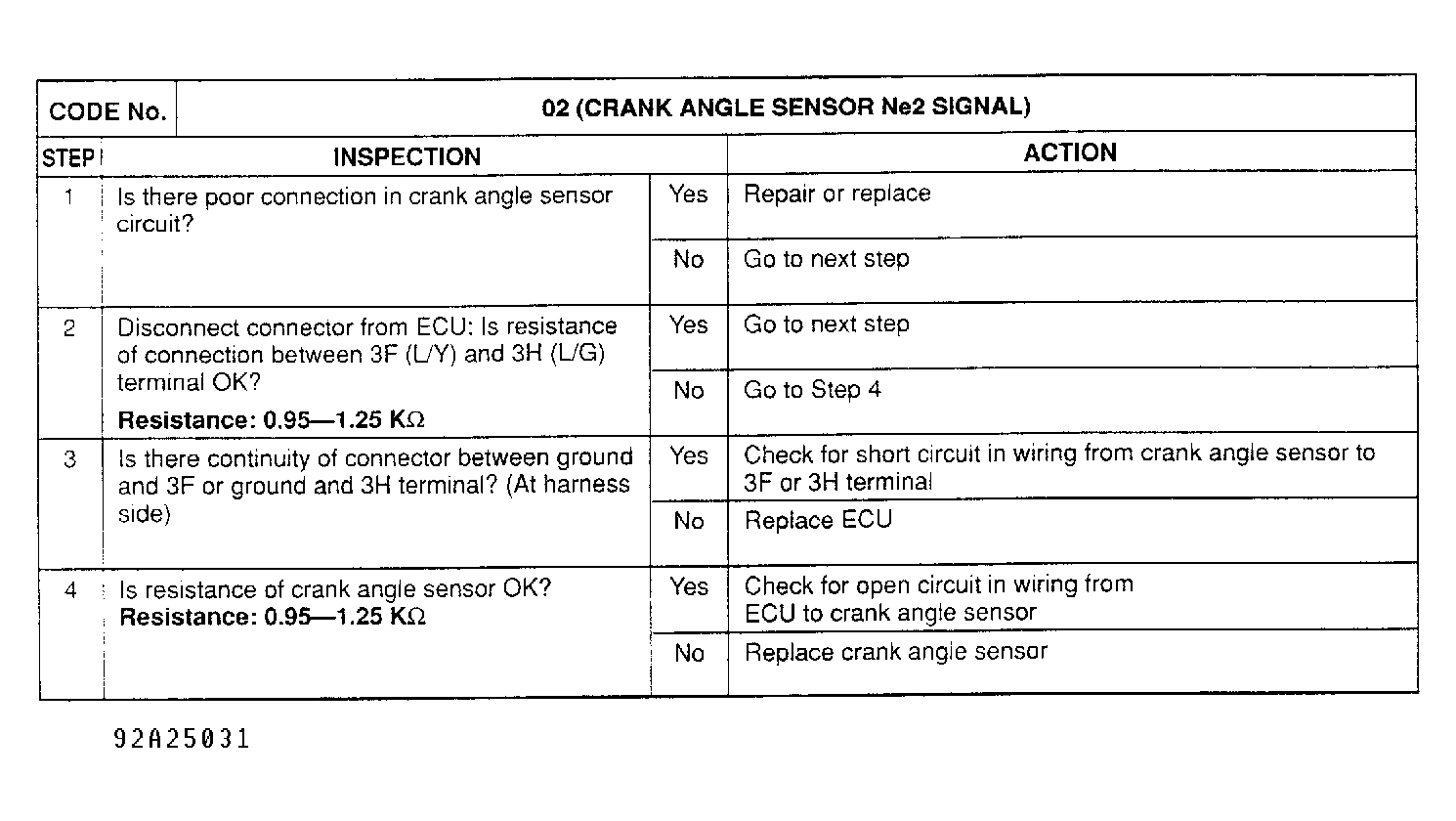

Fig 1: Trouble Code No. 2, Ne2 Signal-Distributor
G92A25031Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Ne2 Signal-Distributor
G92B25032Courtesy of MAZDA MOTORS CORP.
