Timer/Control Unit: Locations

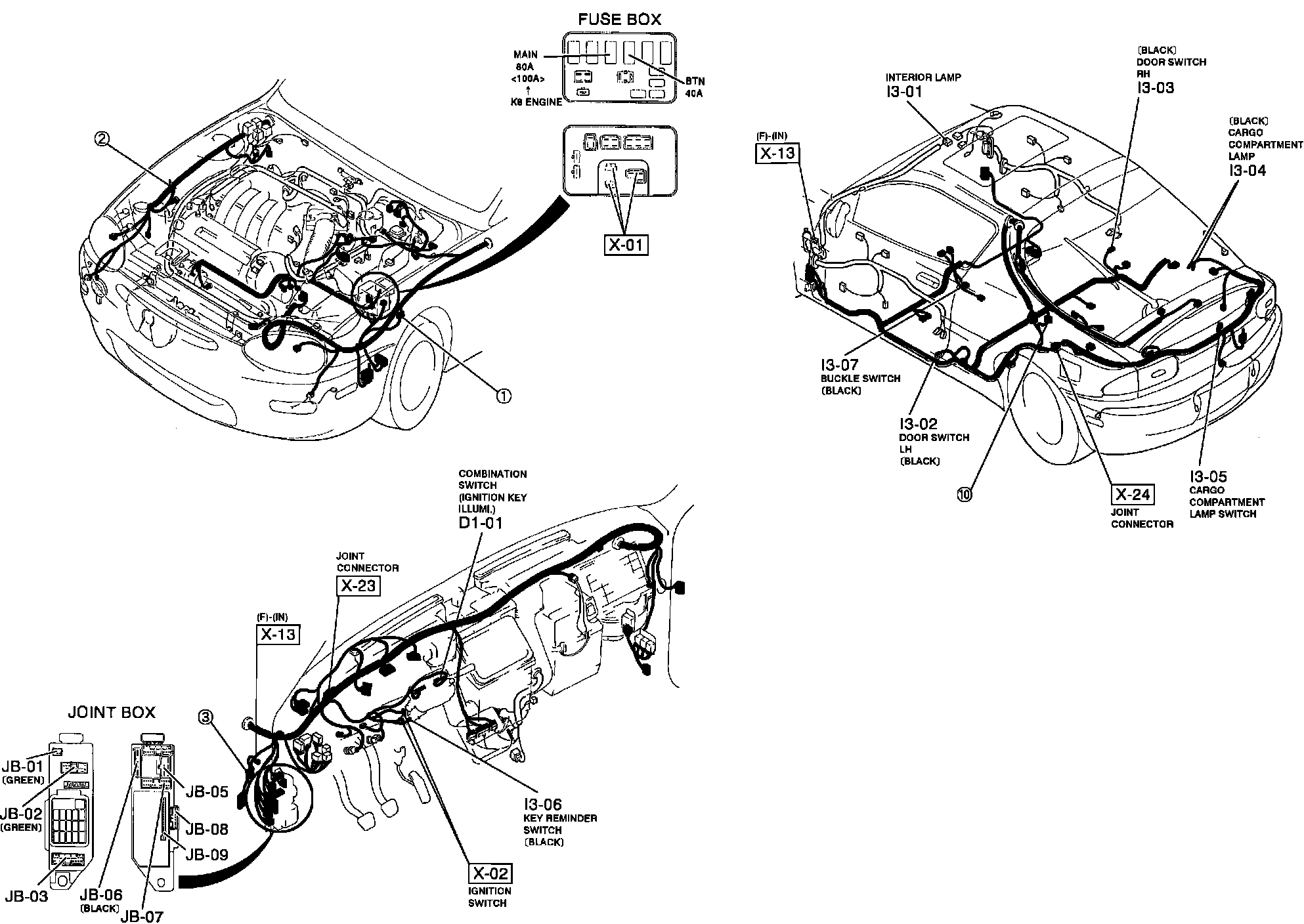

Central Processing Unit (CPU), Interior Lamps And Cargo Compartment Lamps. Harness And Connector Locations:
