Code 34: (Idle Air Control Valve)

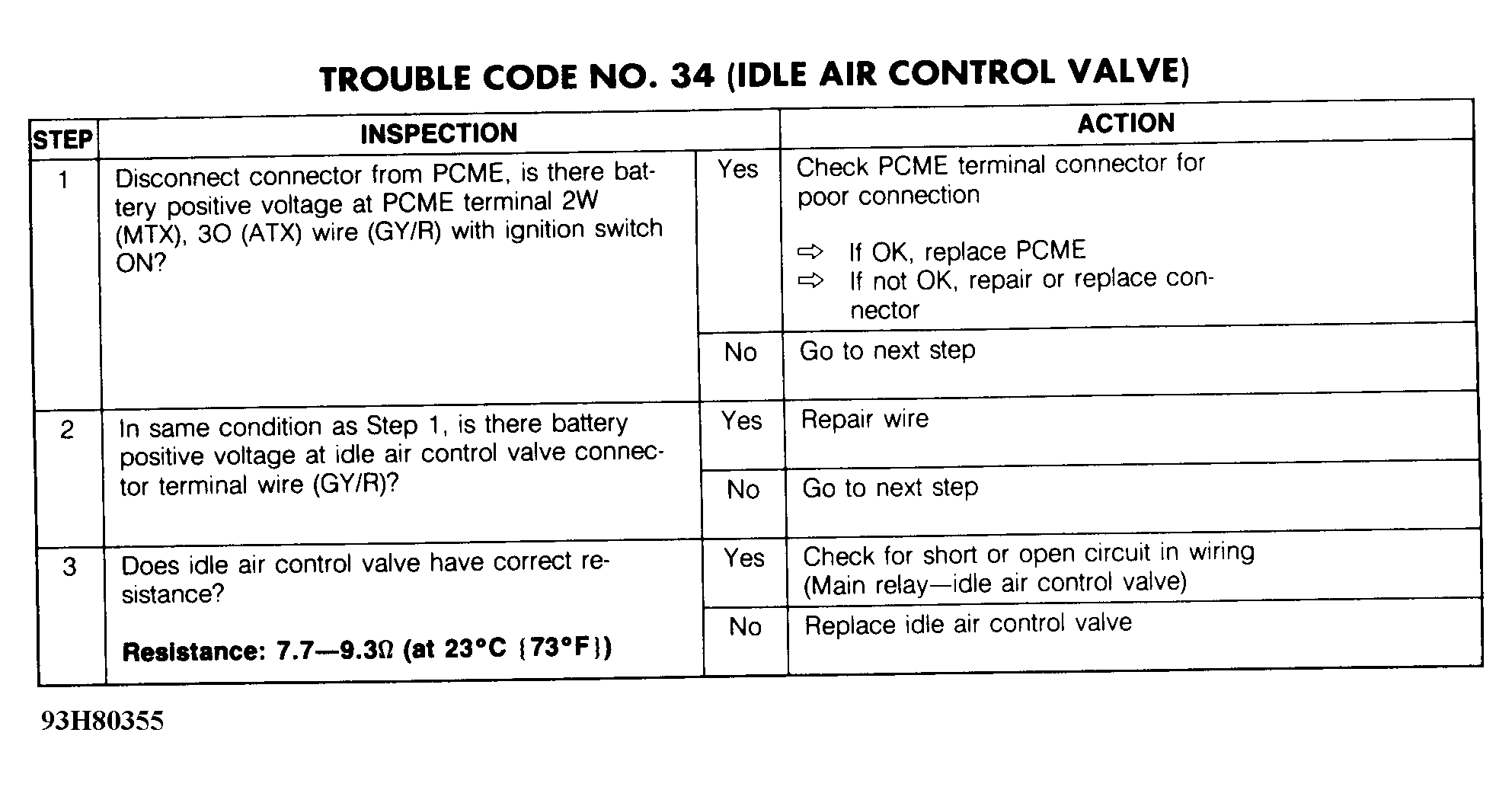

Fig 1: Trouble Code No. 34 - Diagnostic Flowchart
G93H80355Courtesy of MAZDA MOTORS CORP.

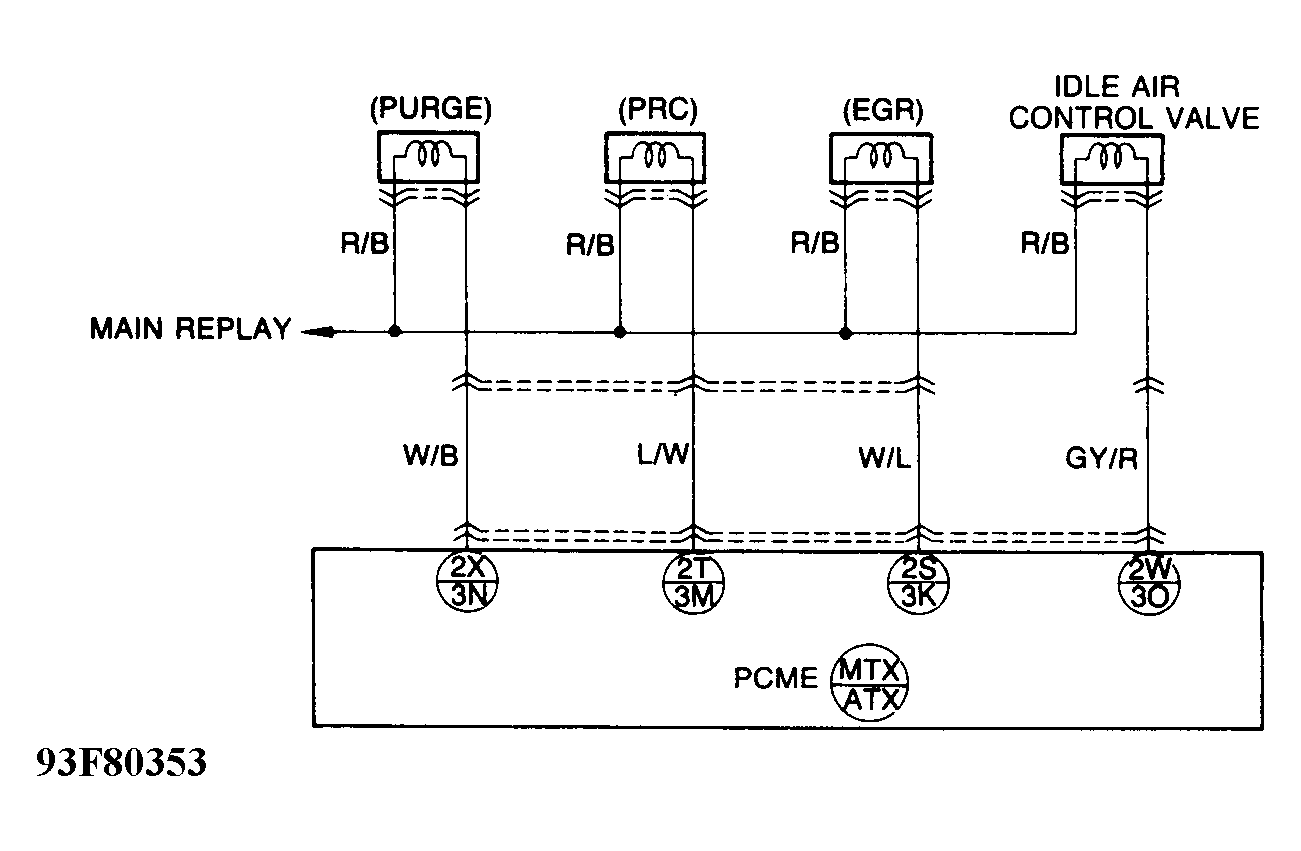

Fig 2: Trouble Code No. 34 - Schematic
G93F80353Courtesy of MAZDA MOTORS CORP.
