Code 26: (Solenoid Valve, Purge Control)

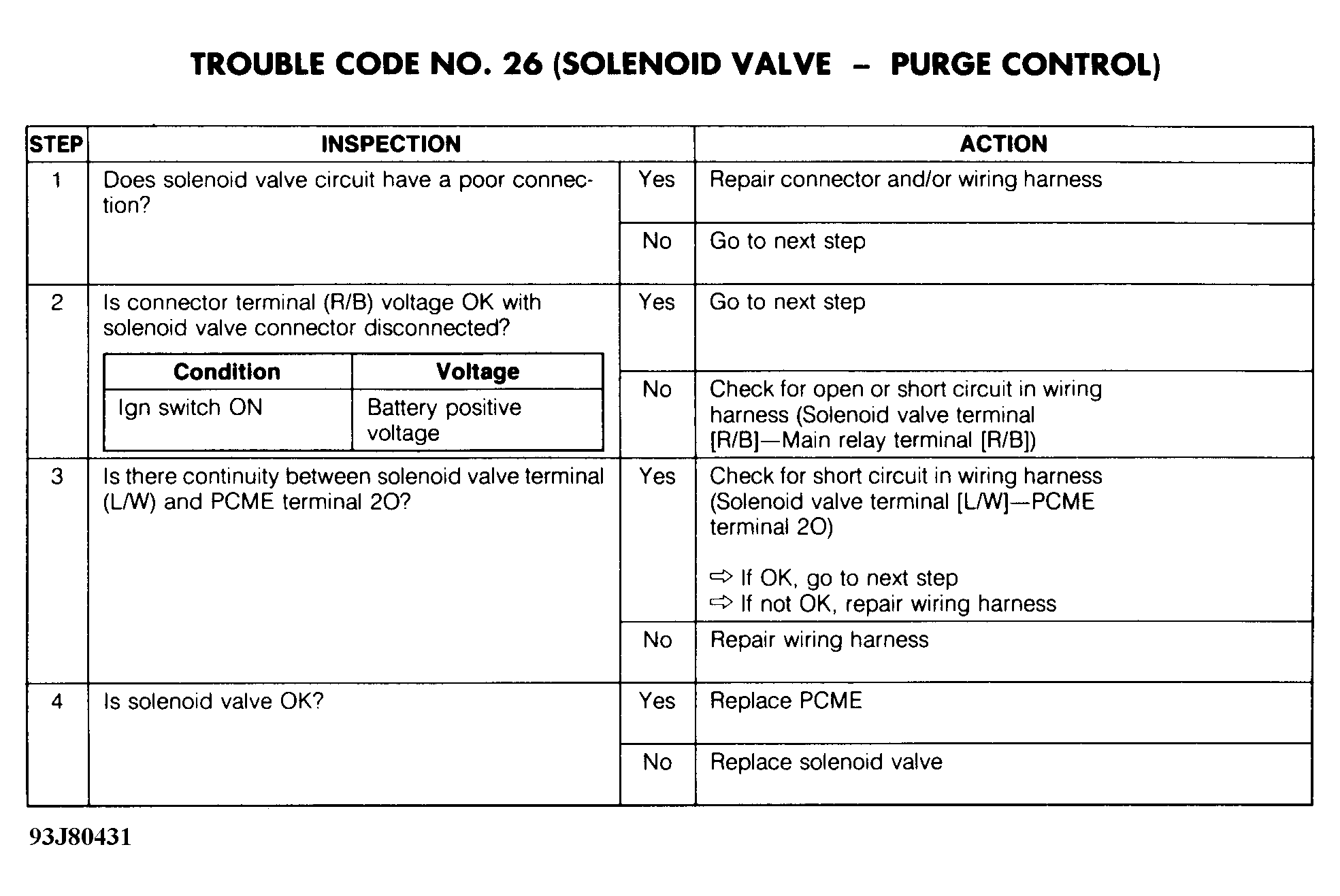

Fig 1: Trouble Code No. 26 - Diagnostic Flowchart
G93J80431Courtesy of MAZDA MOTORS CORP.

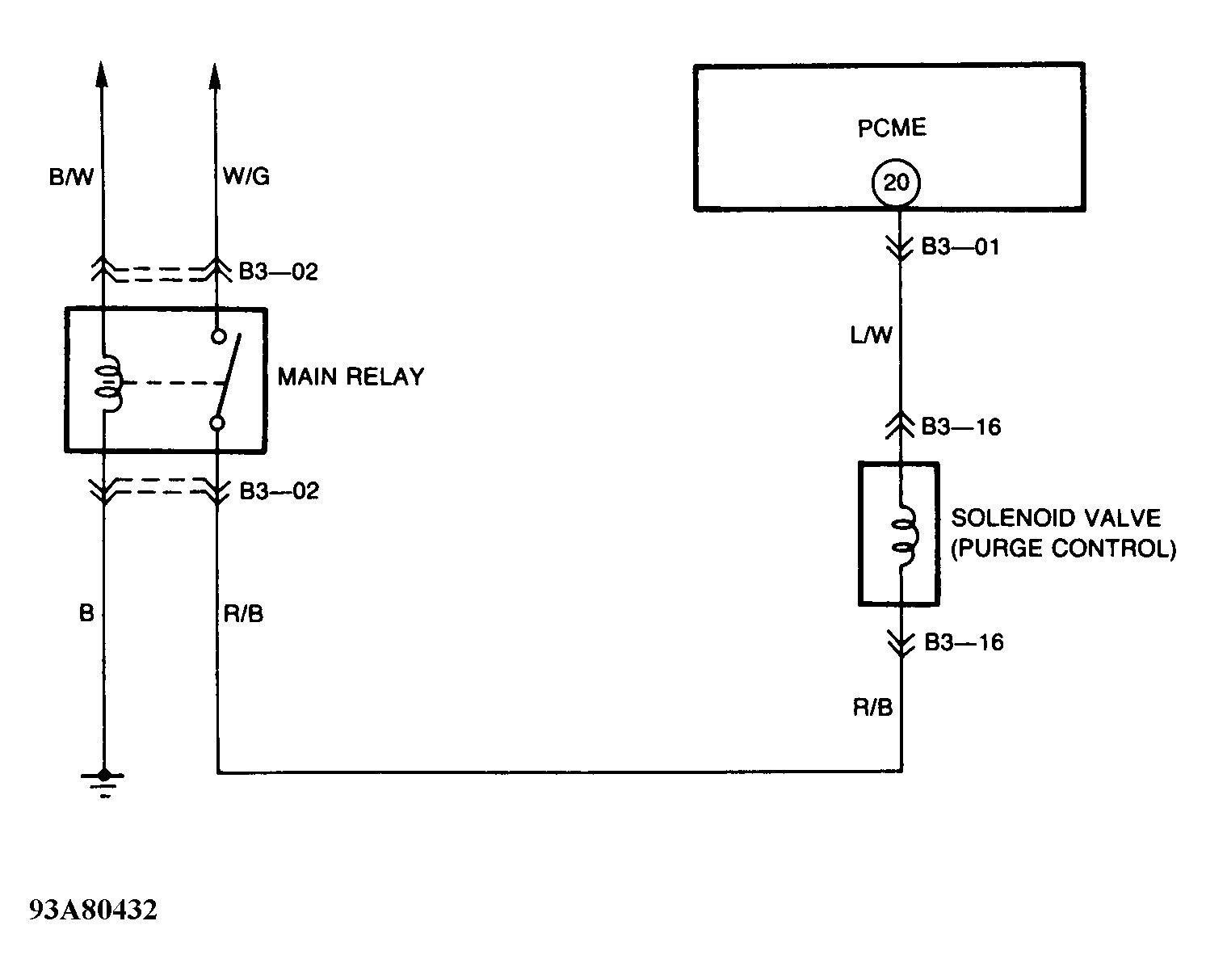

Fig 2: Trouble Code No. 26 - Schematic
G93A80432Courtesy of MAZDA MOTORS CORP.
