Code 9: (Engine Coolant Temperature Sensor, Cis)

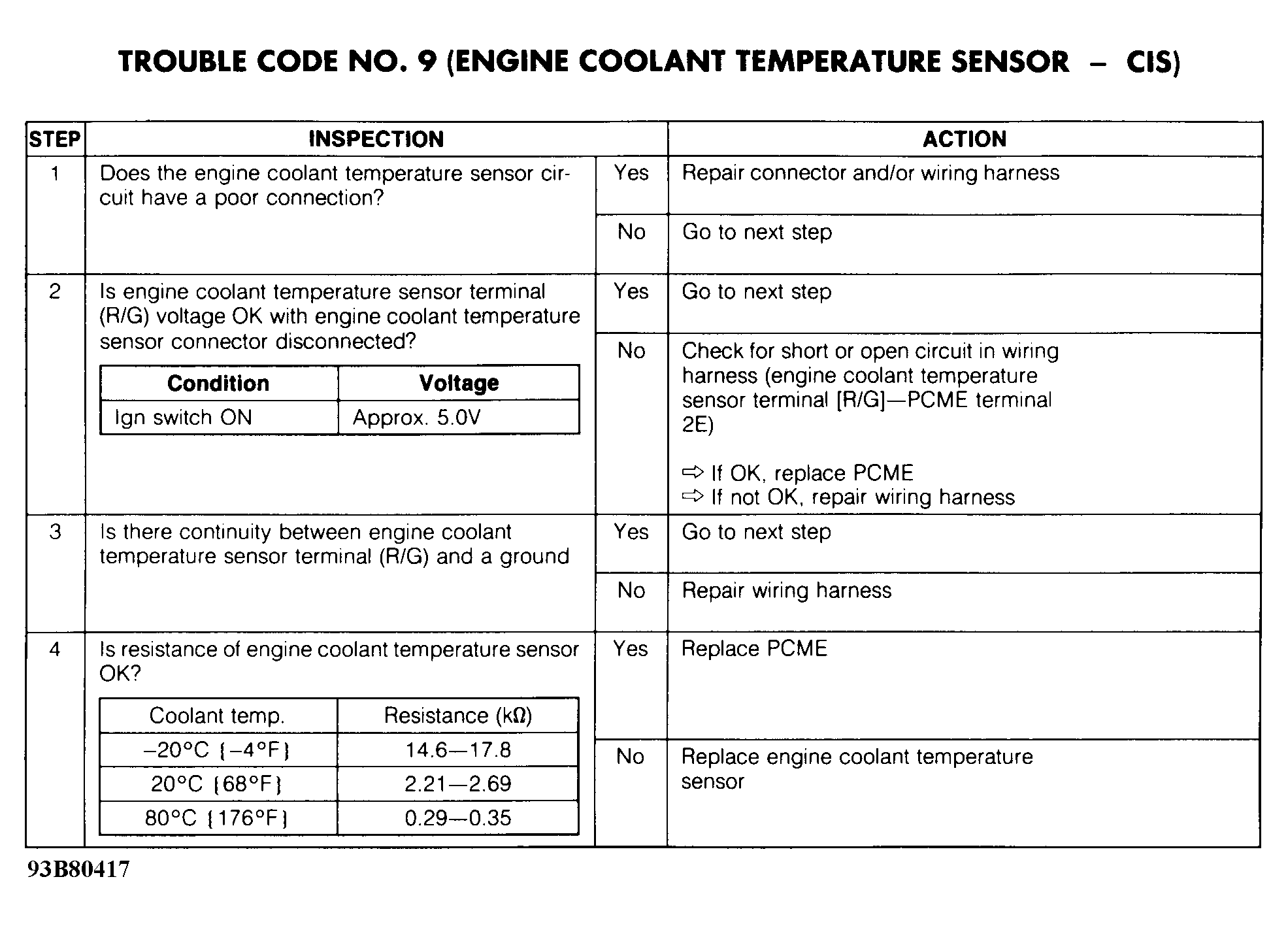

Fig 1: Trouble Code No. 9 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

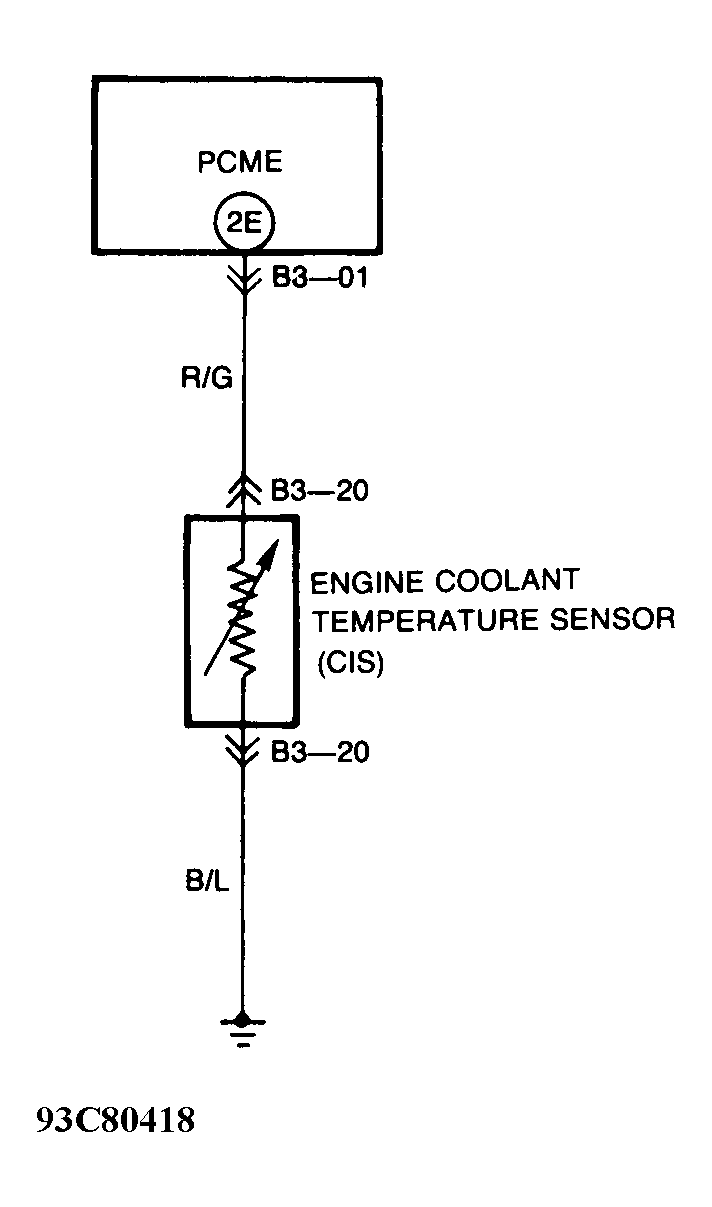

Fig 2: Trouble Code No. 9 - Schematic

Courtesy of MAZDA MOTORS CORP.
