Starting System
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

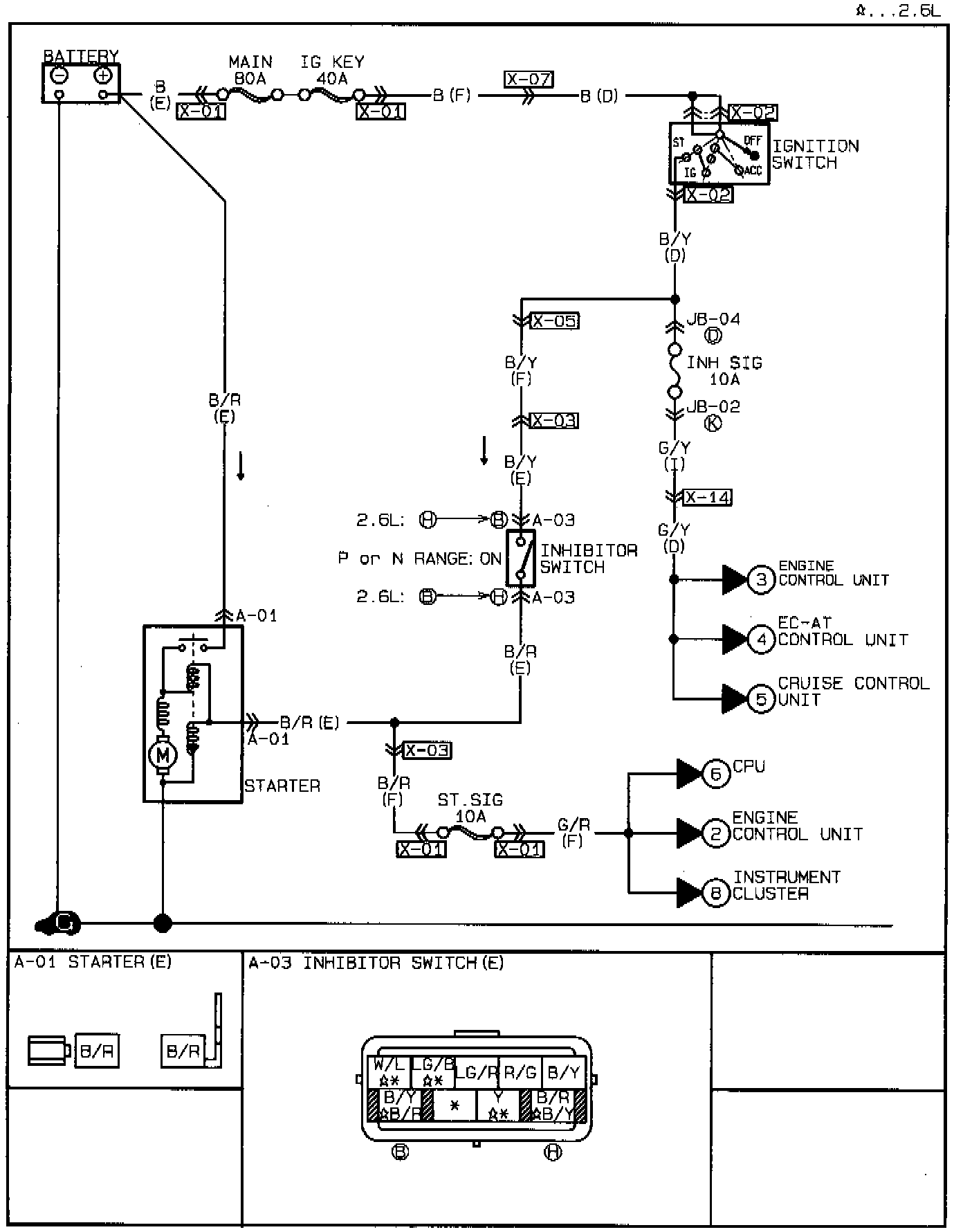

Starting System
Starting System And Connector Identification:
