Code 11: (Intake Air Temperature Sensor)

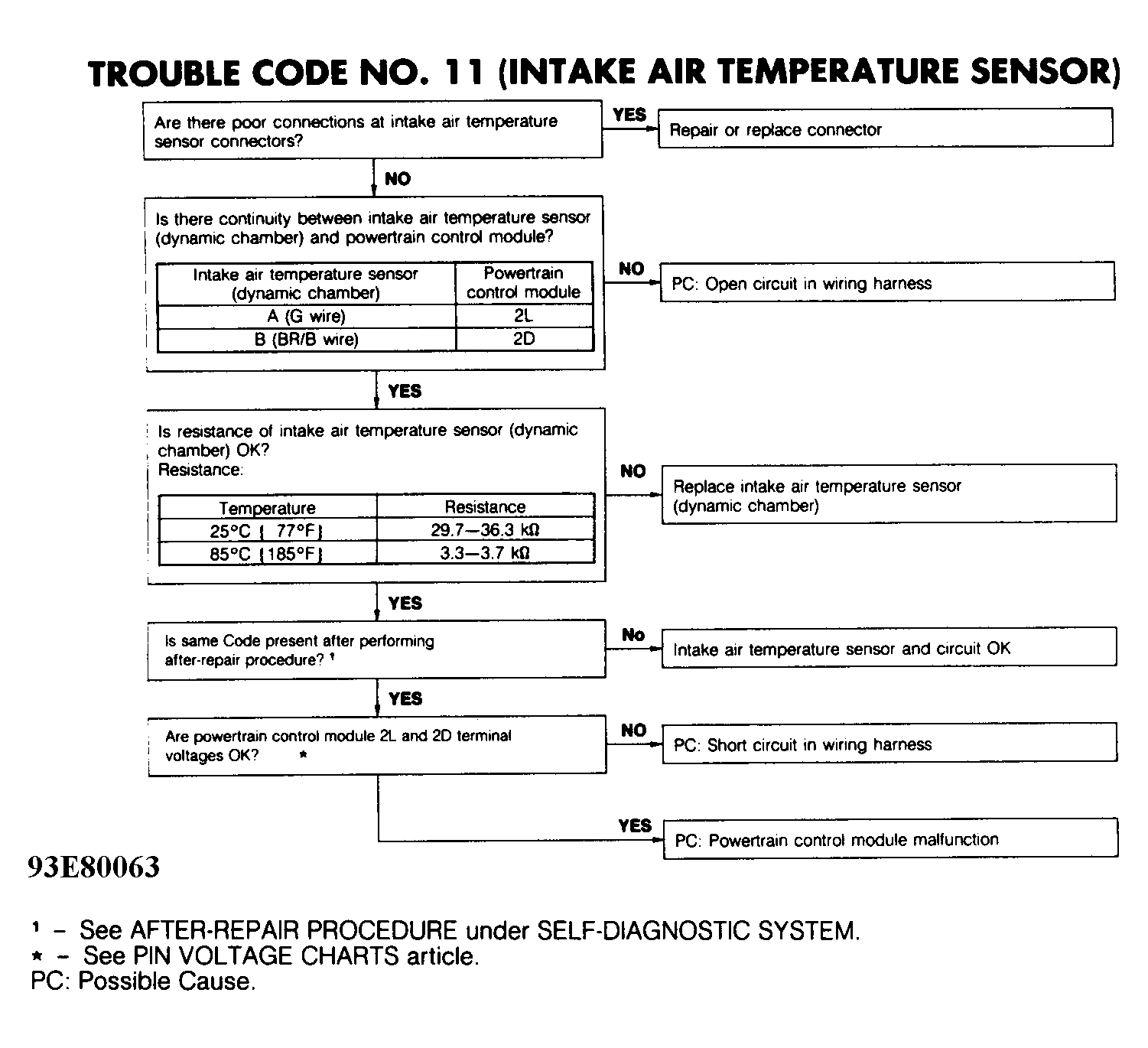

Fig 1: Trouble Code No. 11 (Intake Air Temperature Sensor)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
