Code 34: (Idle Speed Control - ISC)

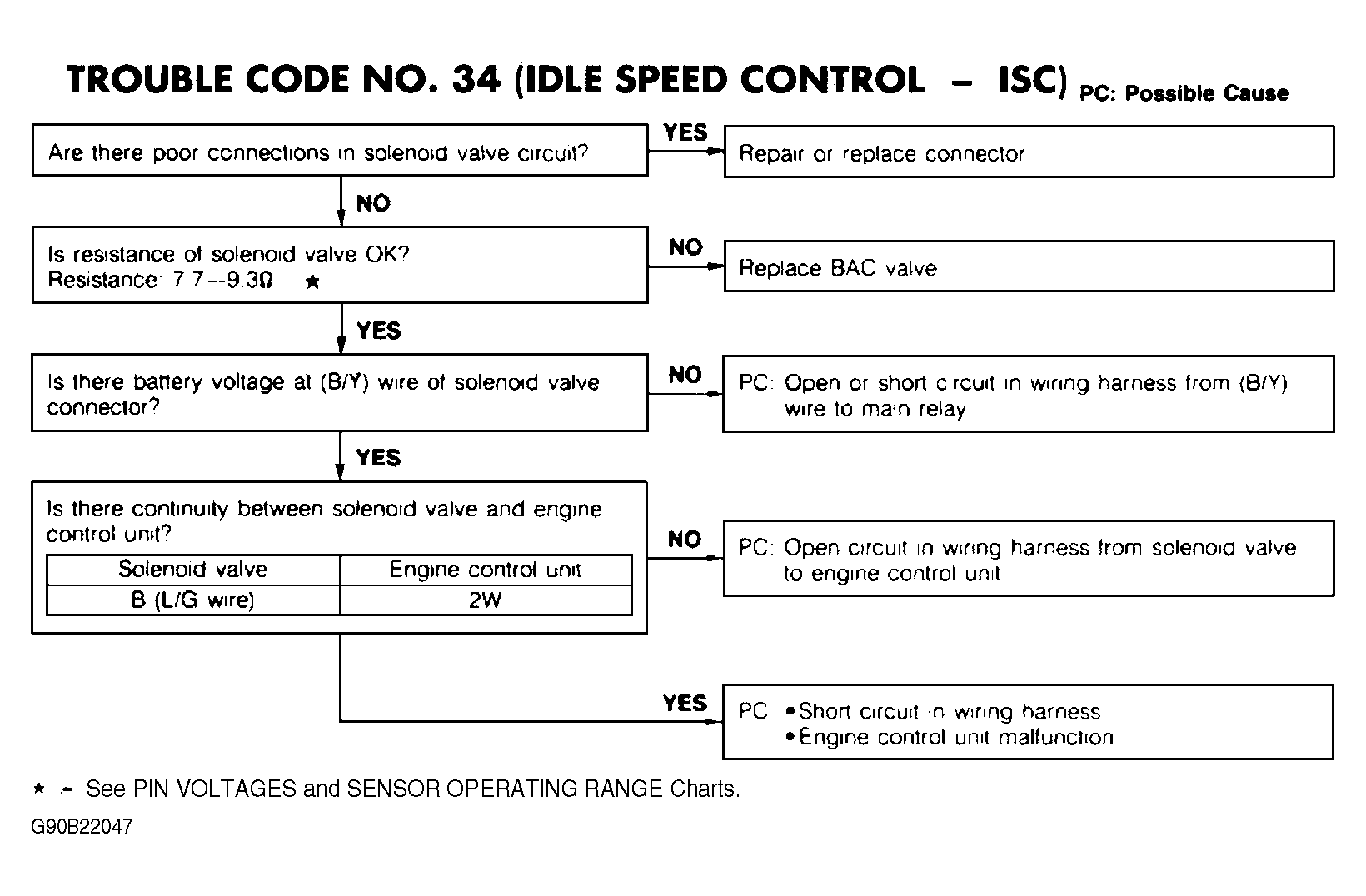

Fig 1: Trouble Code No. 34 (Idle Speed Control - ISC)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
