Trouble Code Identification: Notes

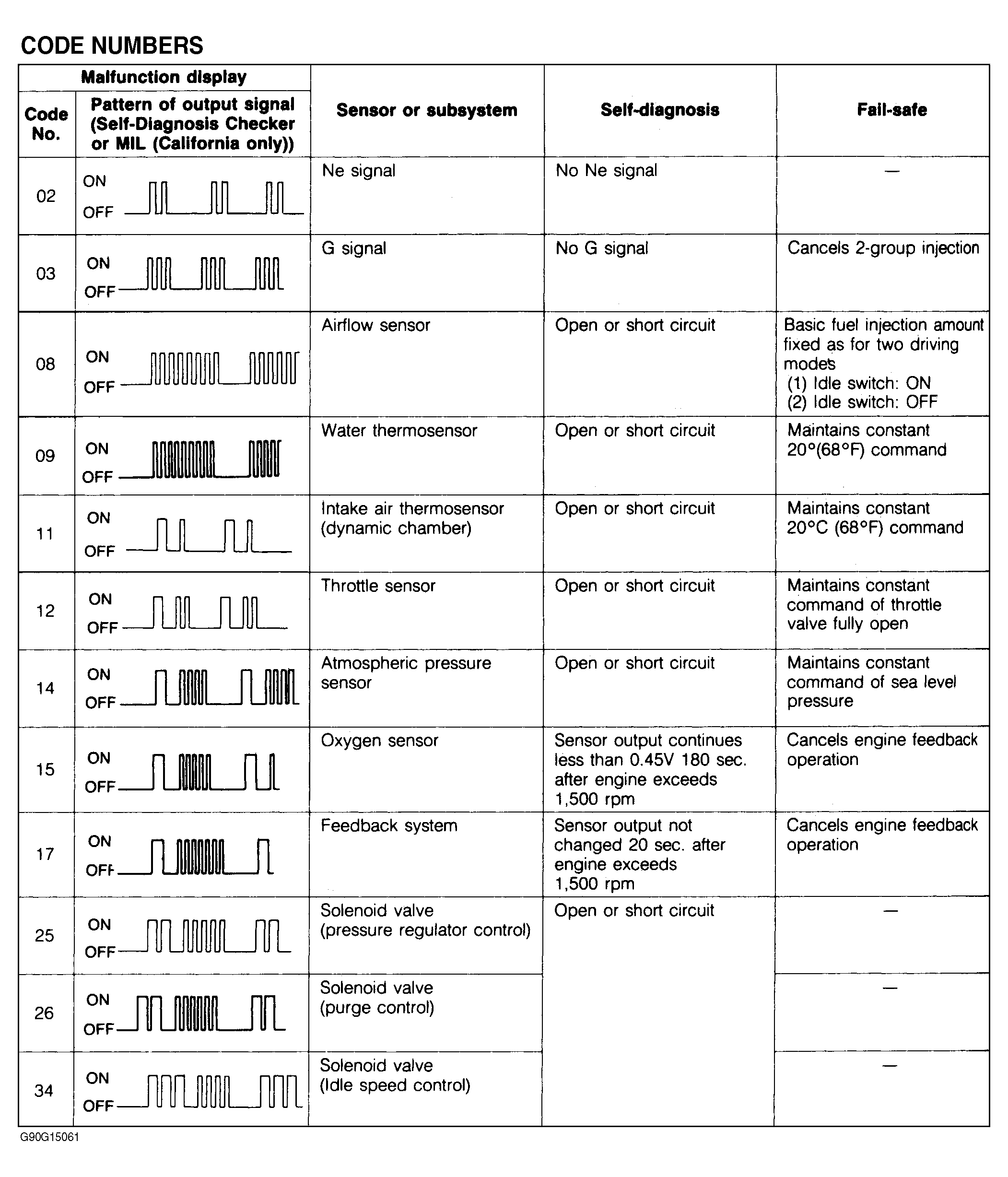

Fig 1: Trouble Code Identification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
