Code 08: (Airflow Meter)

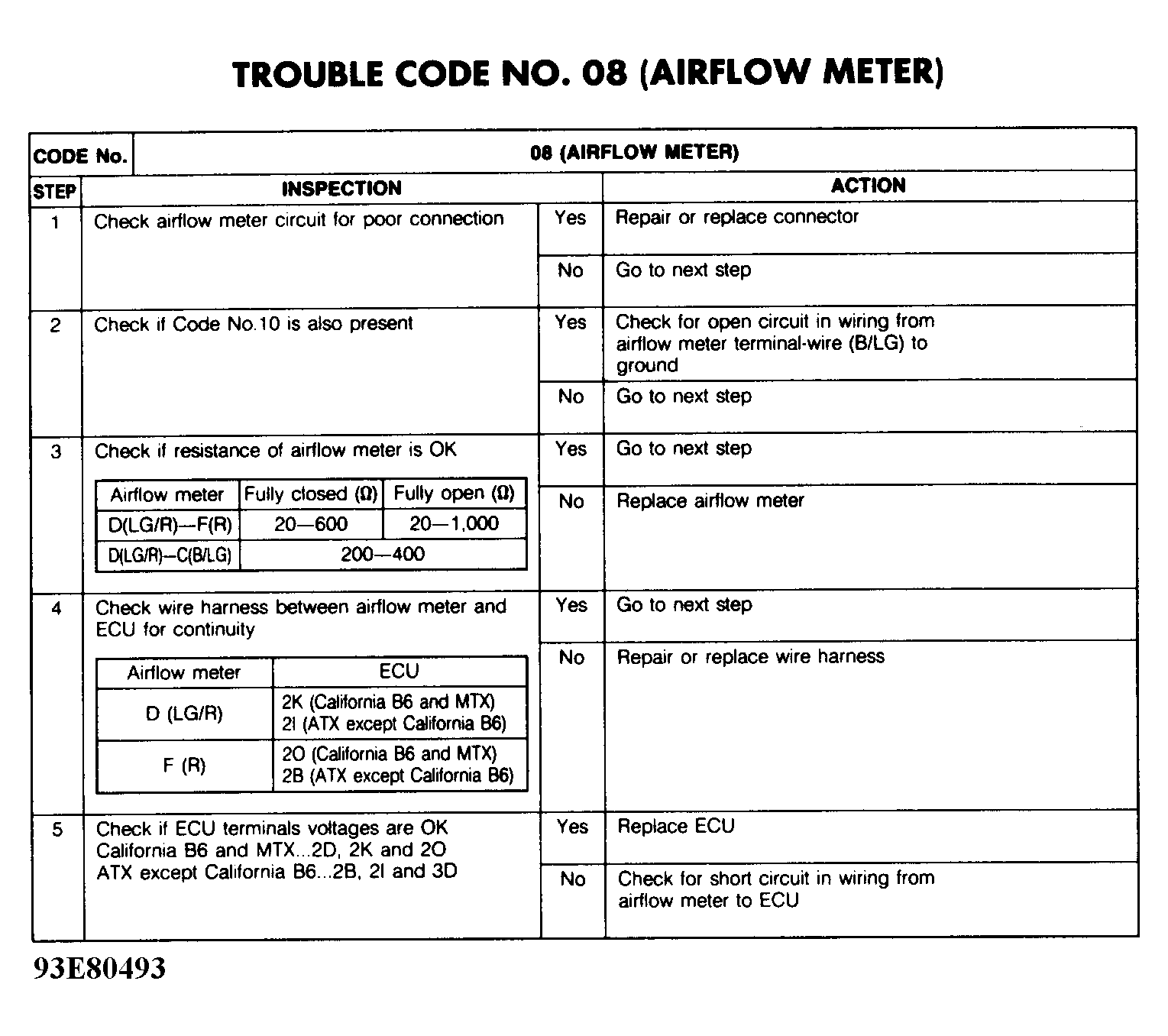

Fig 1: Trouble Code No. 08 (Diagnostic Flowchart)
G93E80493Courtesy of MAZDA MOTORS CORP.

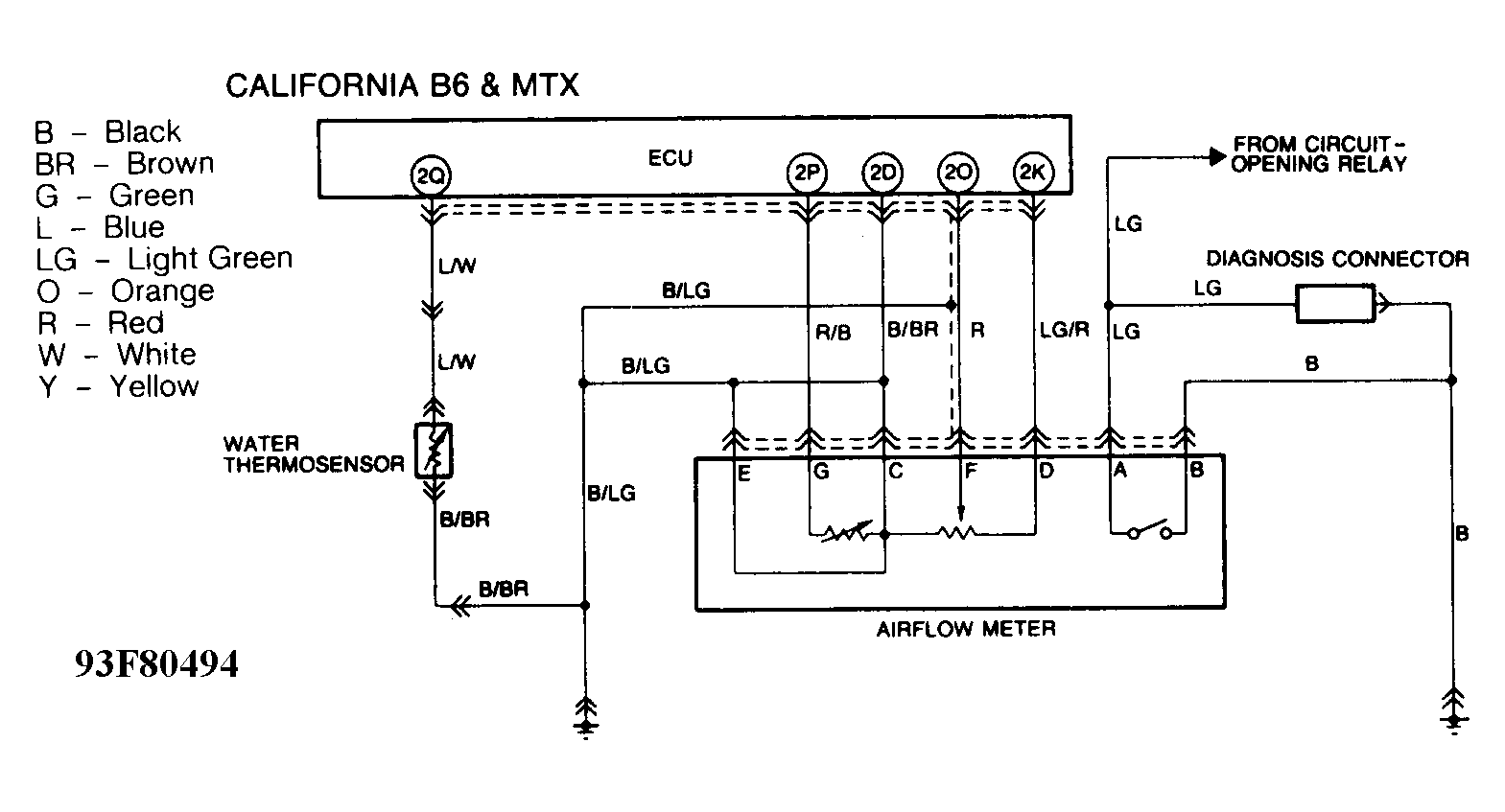

Fig 2: Trouble Code No. 08 (Schematic - CA B6 & MTX)
G93F80494Courtesy of MAZDA MOTORS CORP.

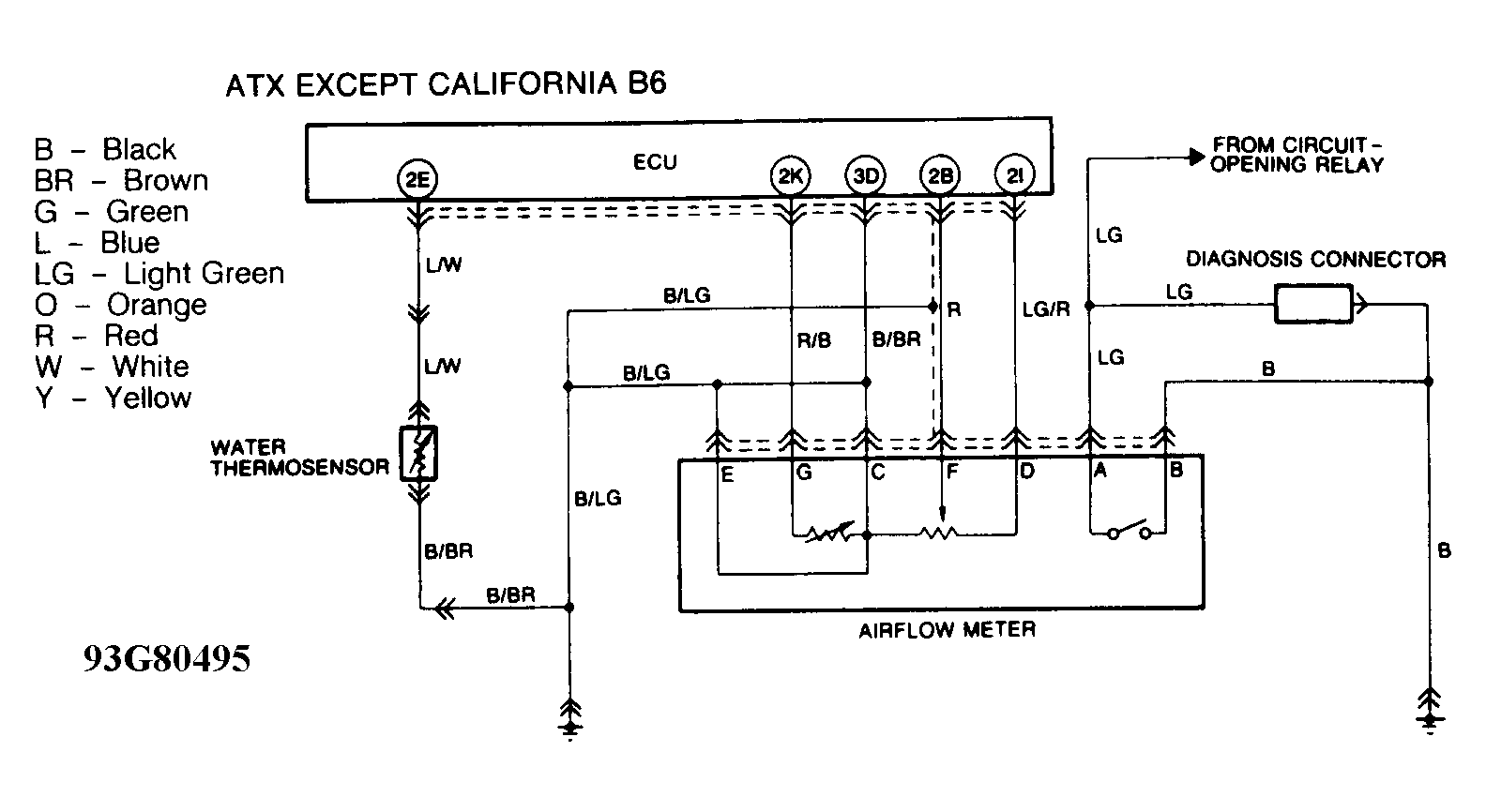

Fig 3: Trouble Code No. 08 (Schematic - ATX Except CA)
G93G80495Courtesy of MAZDA MOTORS CORP.
