Code 12: (Throttle Sensor)

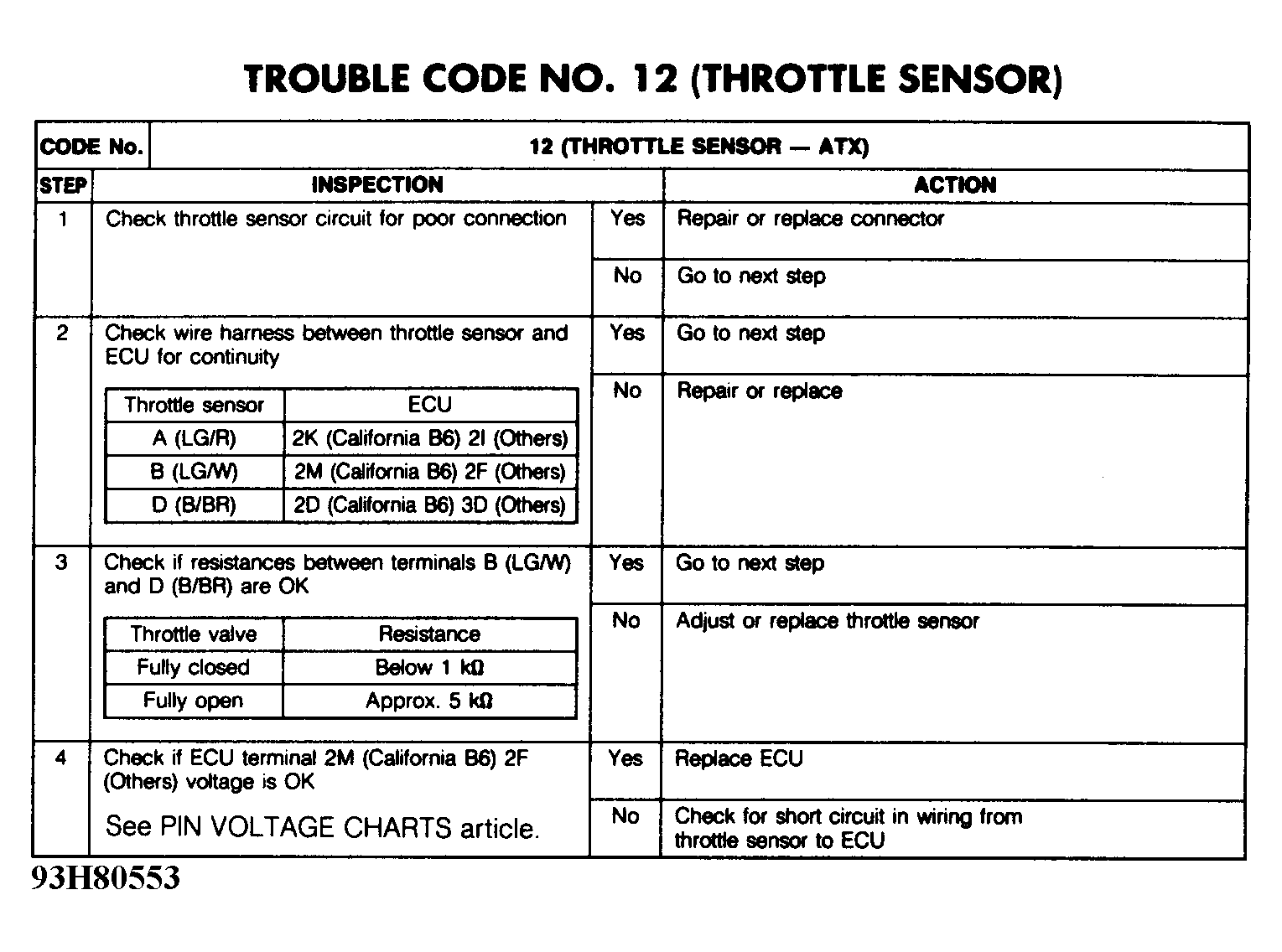

Fig 1: Trouble Code No. 12 (Diagnostic Flowchart)

Courtesy of MAZDA MOTORS CORP.

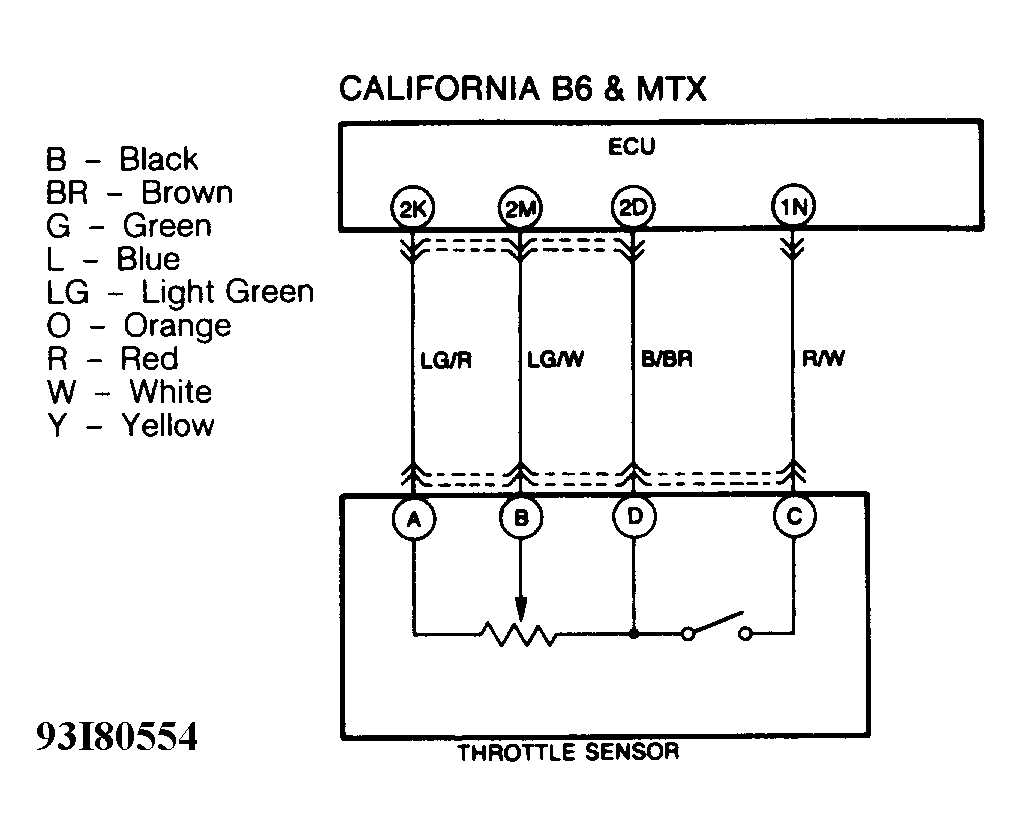

Fig 2: Trouble Code No. 12 (Schematic - CA B6 & MTX)

Courtesy of MAZDA MOTORS CORP.

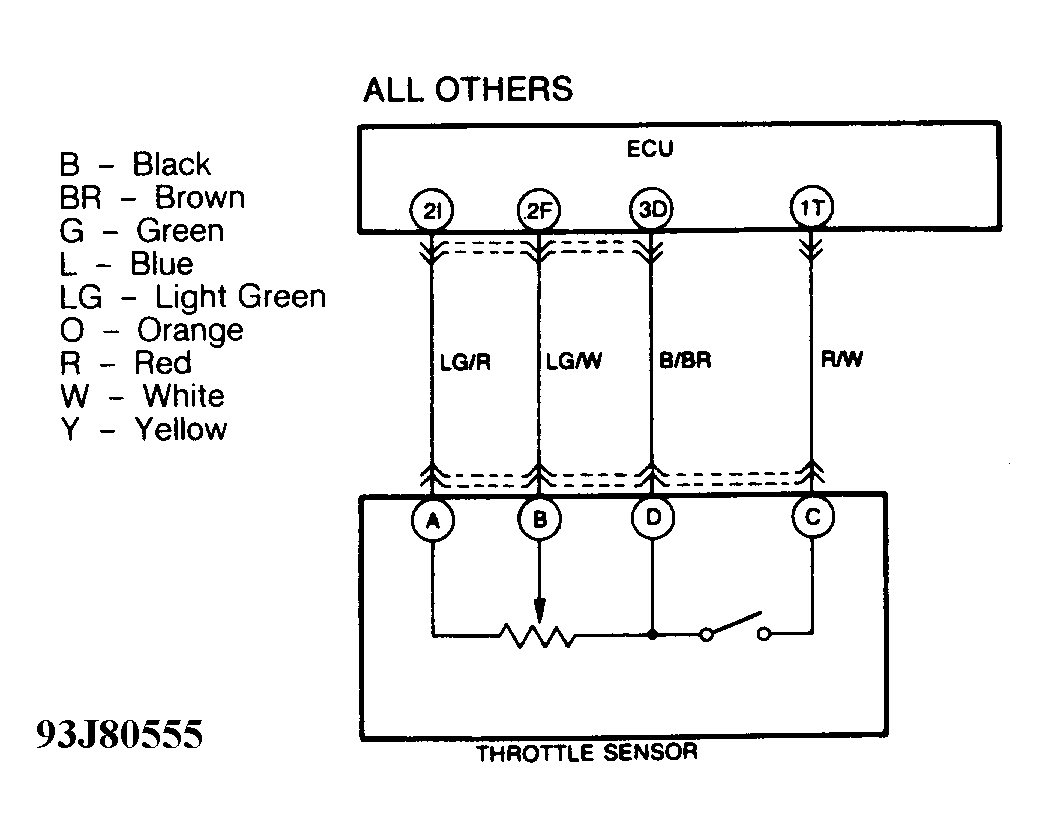

Fig 3: Trouble Code No. 03 (Schematic - All Others)

Courtesy of MAZDA MOTORS CORP.
