Steering Column: Reassembly

To reassemble, reverse disassembly procedure. Grease steering shaft, bushings and bearings. Use NEW shear screws.

STEERING SHAFT DIMENSIONS ⁽¹⁾

Application

Length - In. (mm)

MX-3, Protege & 323

21.24-21.31 (539.3-541.3)

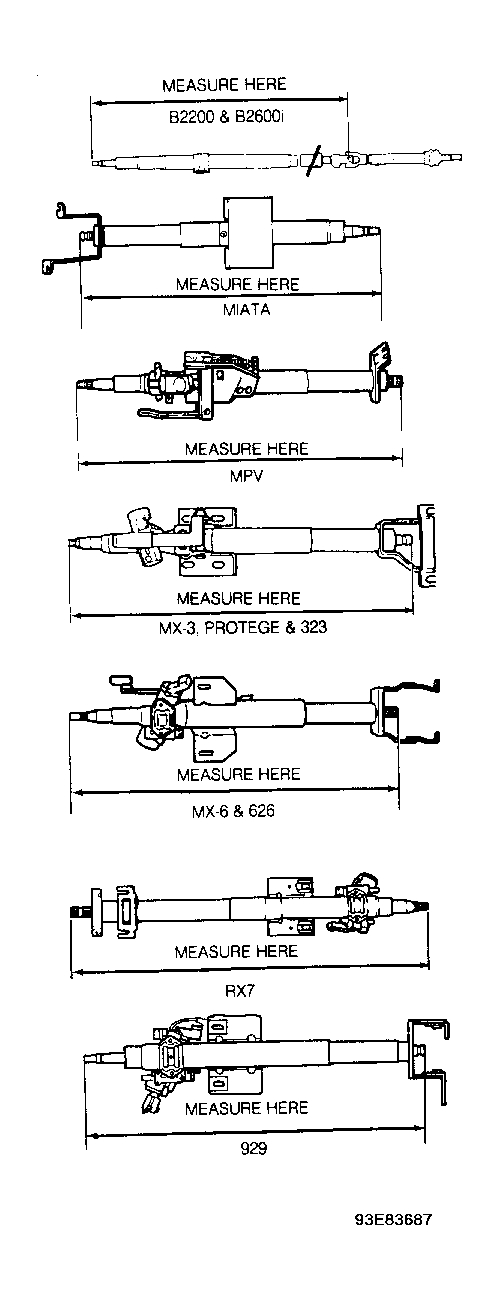

⁽¹⁾	For measuring points, see illustration. See Fig 1 .

Fig 1: Measuring Steering Shaft Dimensions

Courtesy of MAZDA MOTORS CORP.
