Code 25: (Solenoid Valve - Pressure Regulator Control)

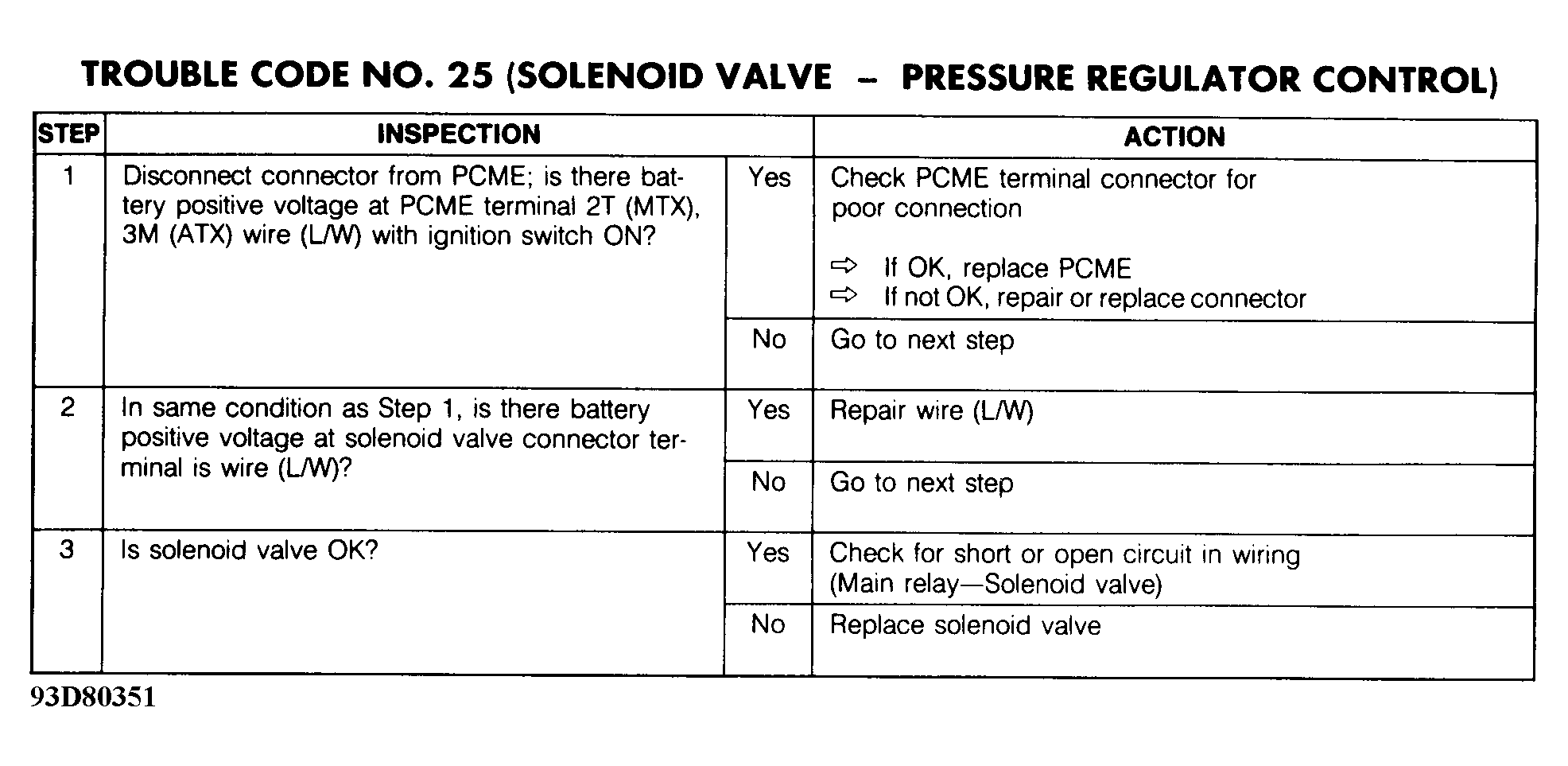

Fig 1: Trouble Code No. 25 - Diagnostic Flowchart
G93D80351Courtesy of MAZDA MOTORS CORP.
