Code 56: (ATF THERMOSENSOR - ATX)

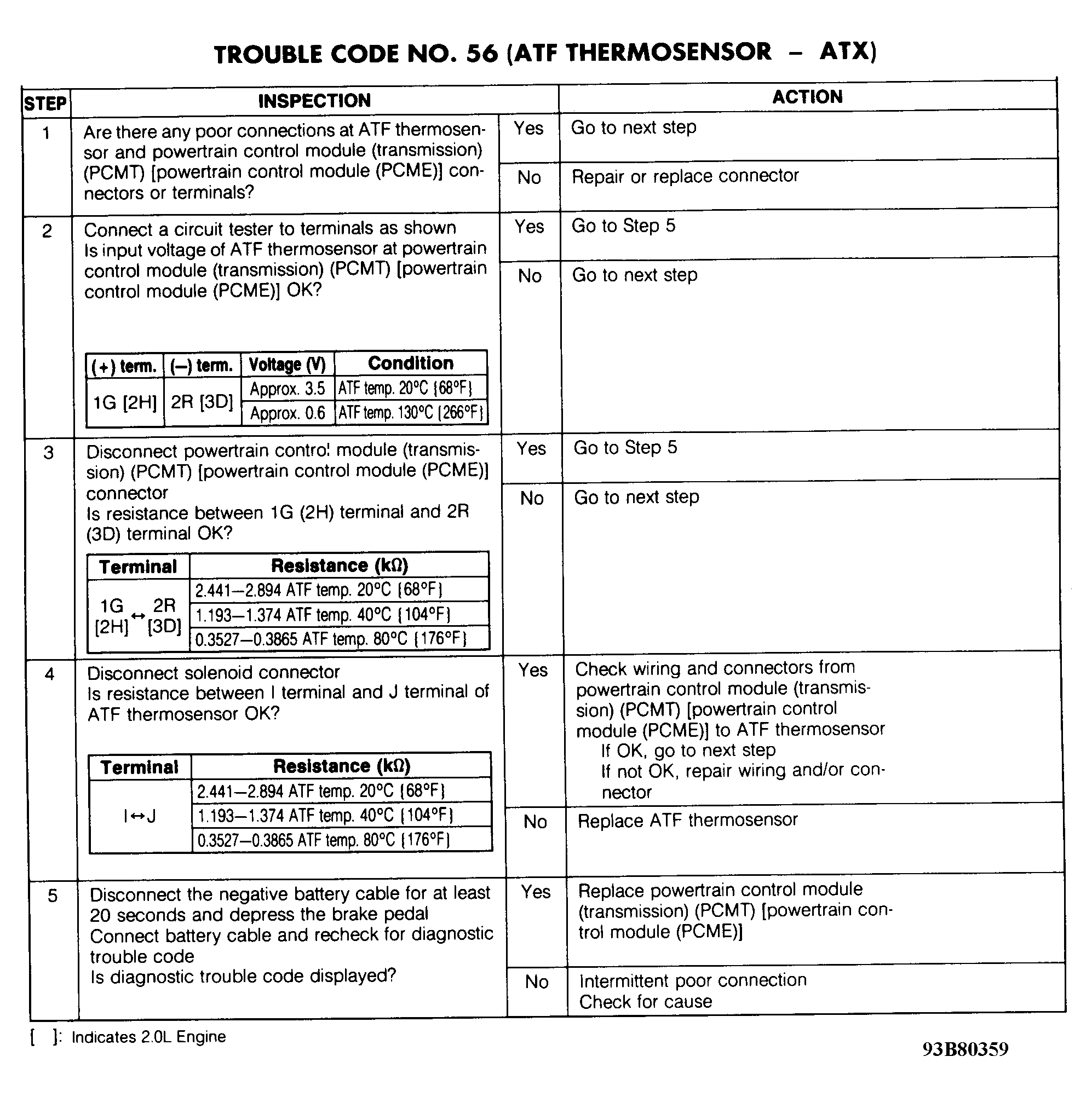

Fig 1: Trouble Code No. 56 - Diagnostic Flowchart
G93B80359Courtesy of MAZDA MOTORS CORP.

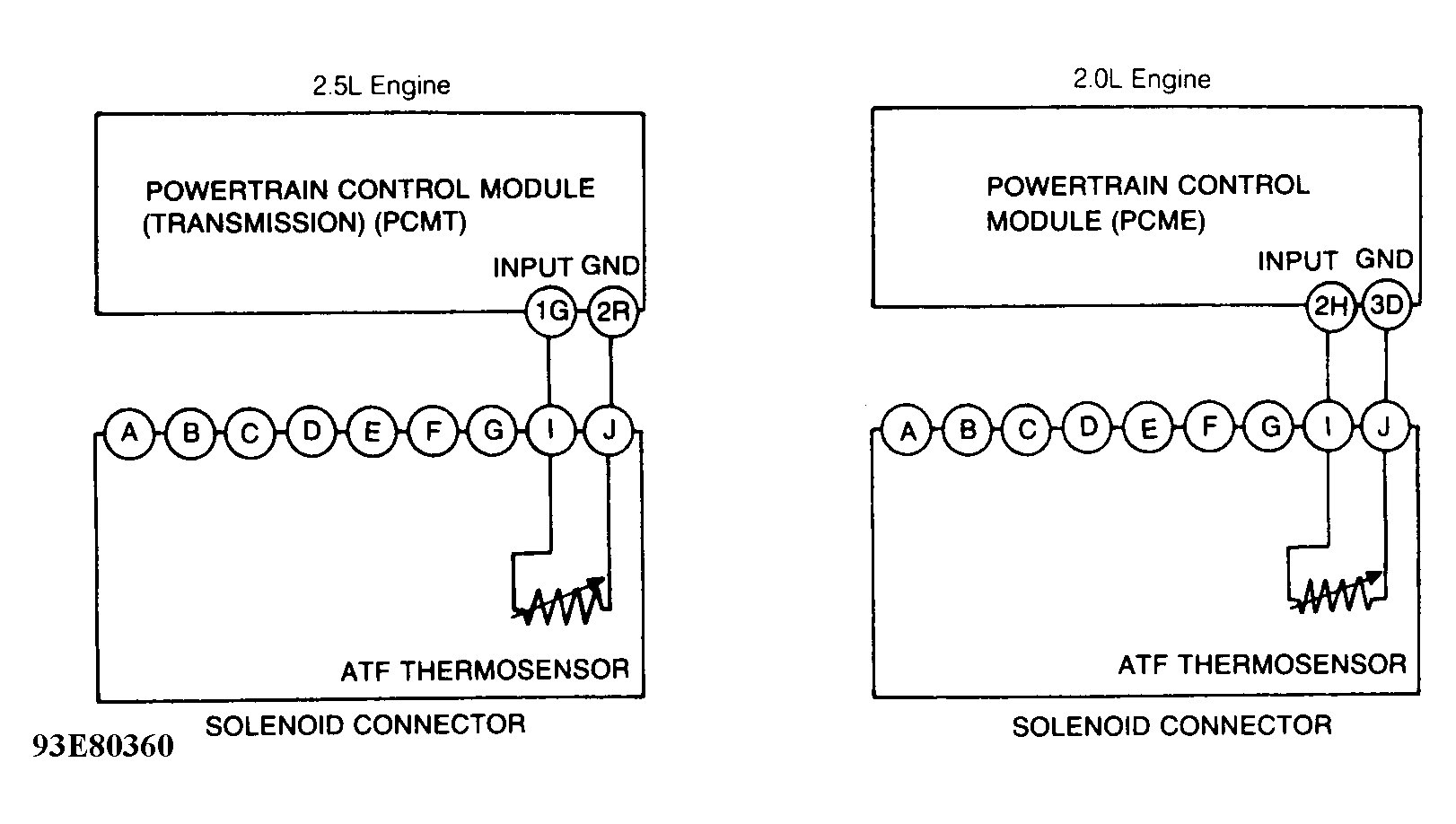

Fig 2: Trouble Code No. 56 - Schematic
G93E80360Courtesy of MAZDA MOTORS CORP.
