Code 14: (Barometric Absolute Pressure Sensor/ATX)

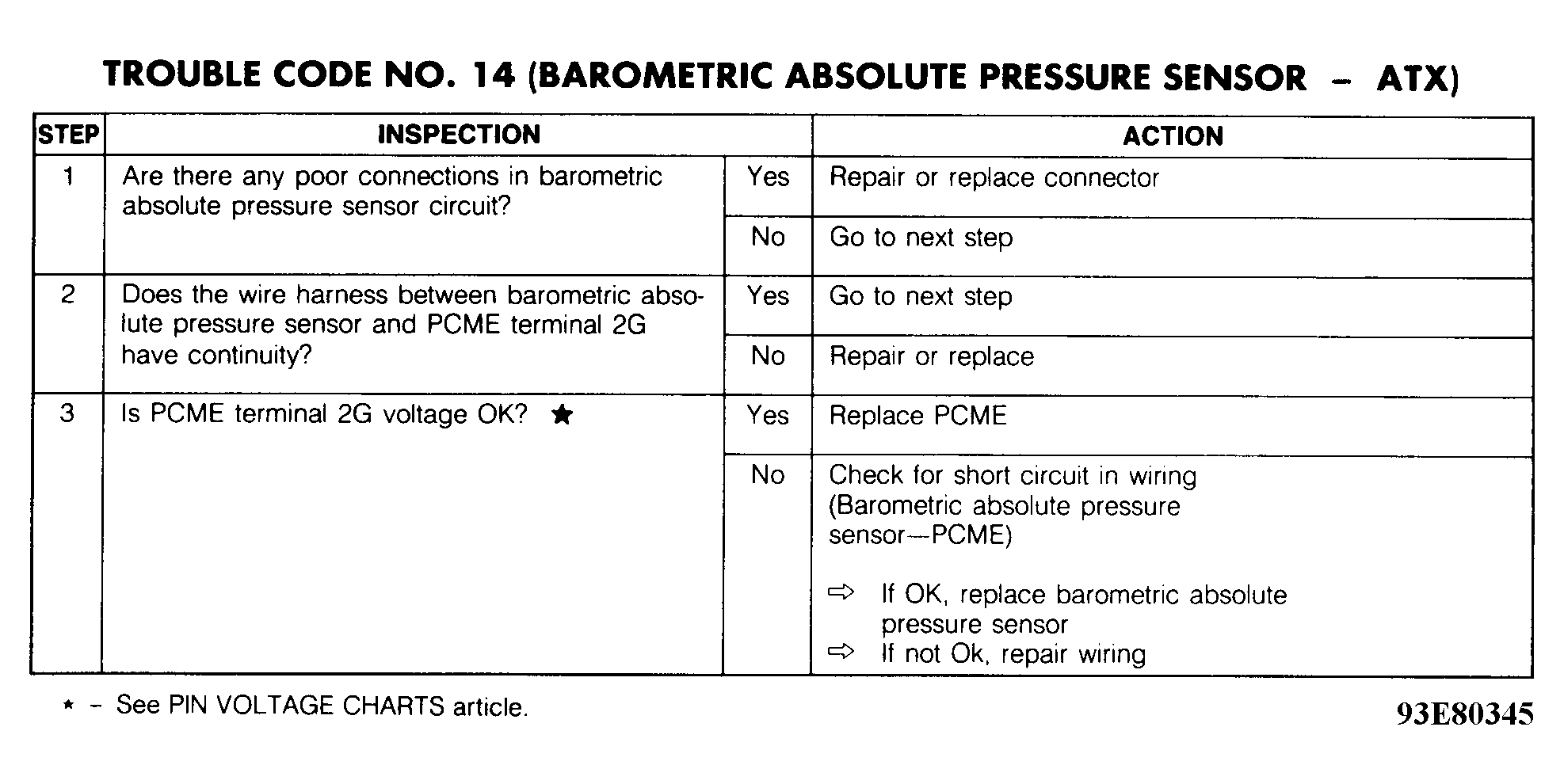

Fig 1: Trouble Code No. 14 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 14 - Schematic
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
