Code 16: (EGR Function Sensor - CALIFORNIA)

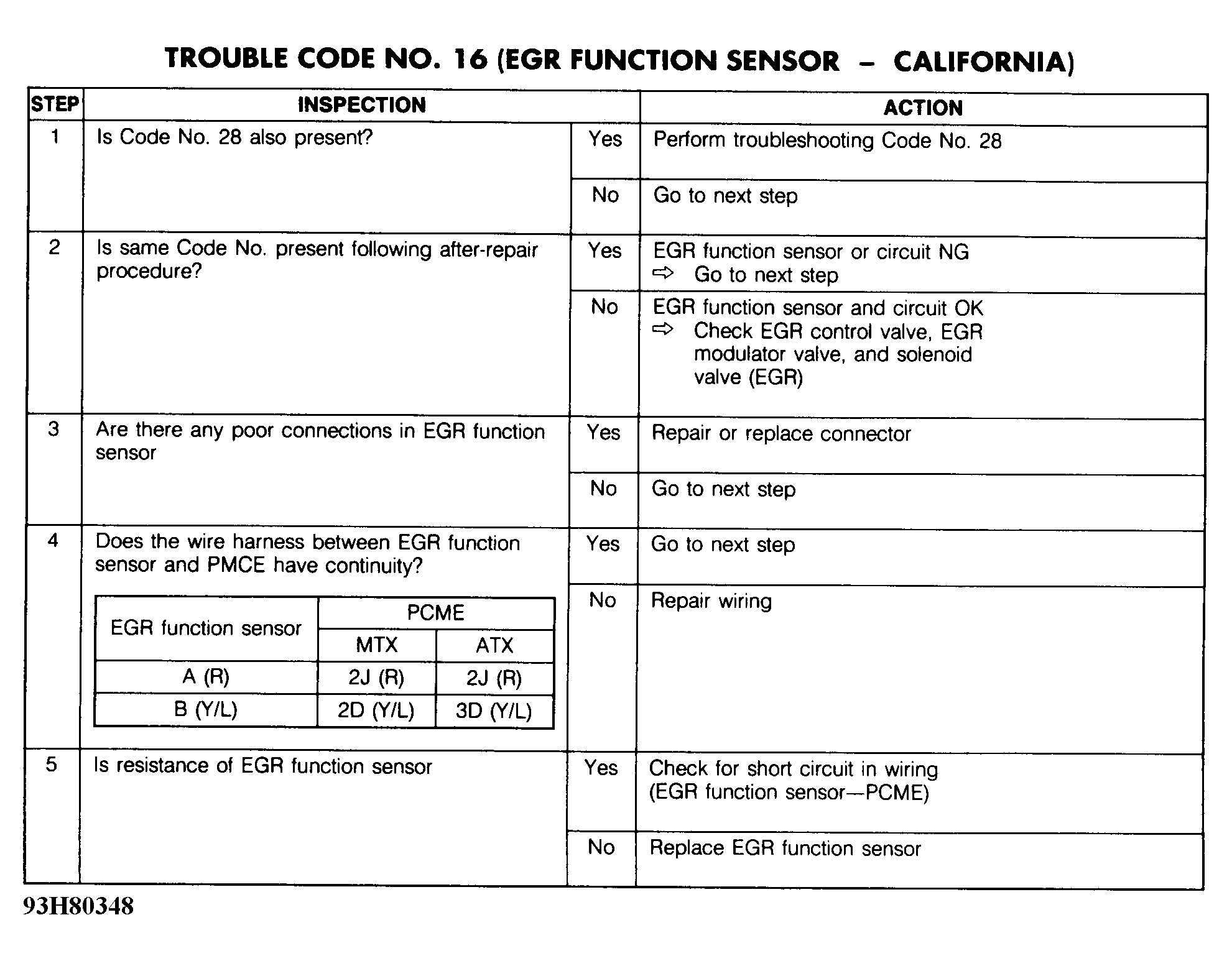

Fig 1: Trouble Code No. 16 - Diagnostic Flowchart
G93H80348Courtesy of MAZDA MOTORS CORP.

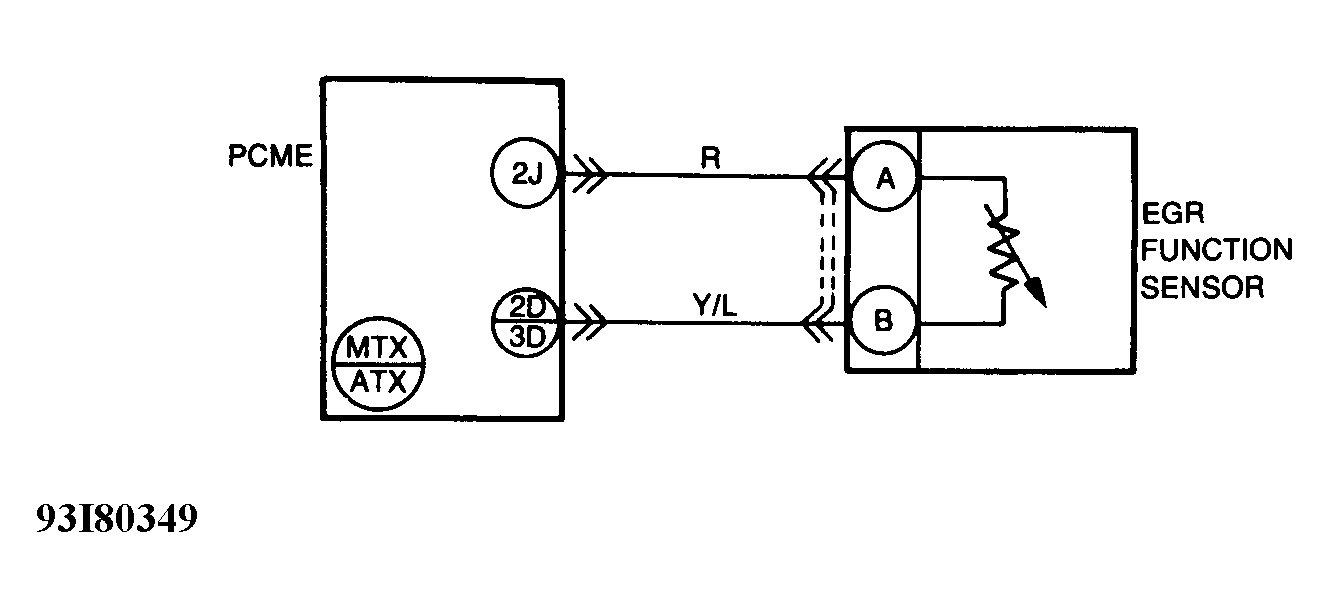

Fig 2: Trouble Code No. 16 - Schematic
G93I80349Courtesy of MAZDA MOTORS CORP.
