Engine Controls - Tests W/Codes - 2.0L
>>
Trouble Code Identification
>>
Code 17: (Closed Loop System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 17: (Closed Loop System)

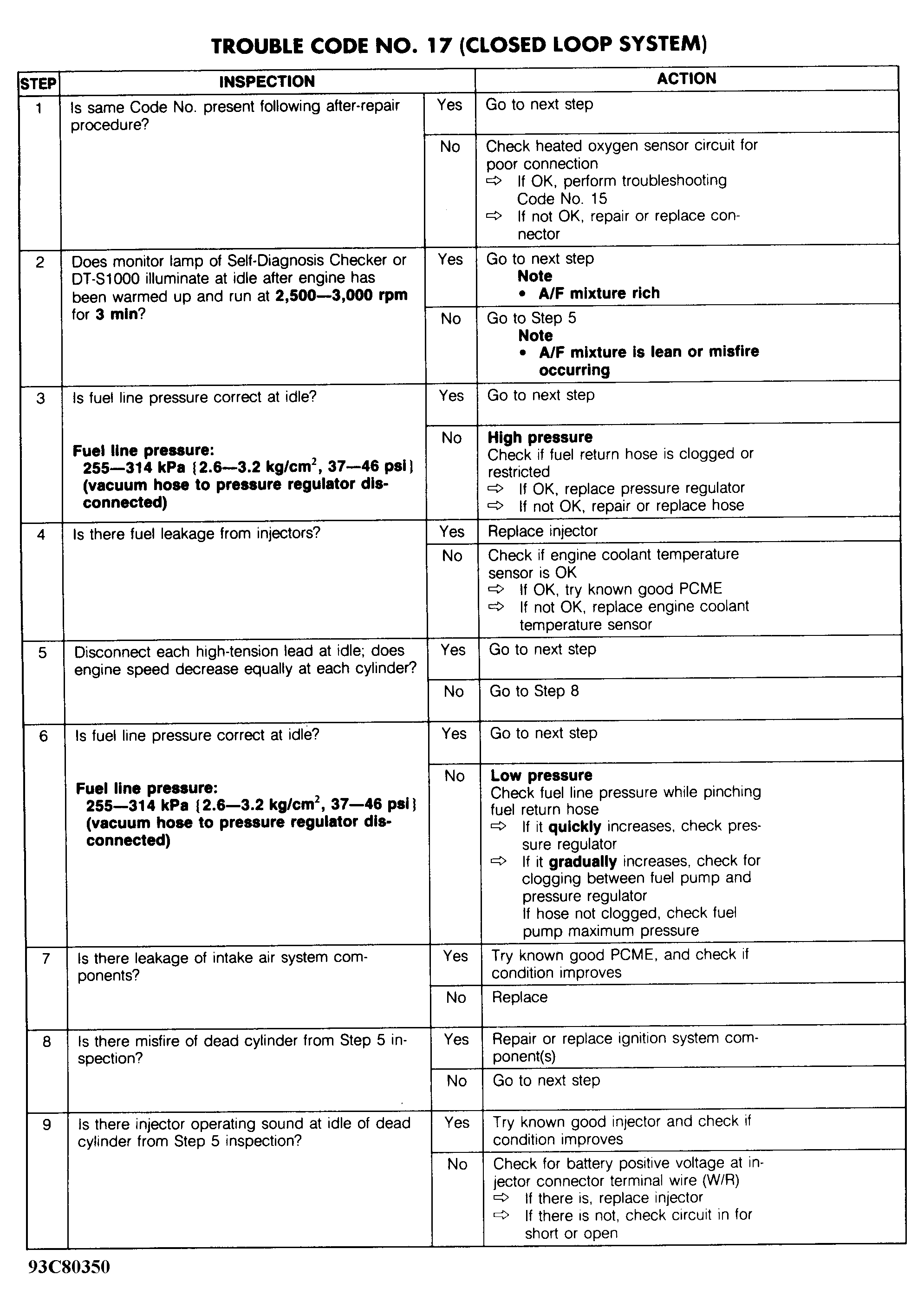

Fig 1: Trouble Code No. 17 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
