Code 6: (Vehicle Speed Sensor)

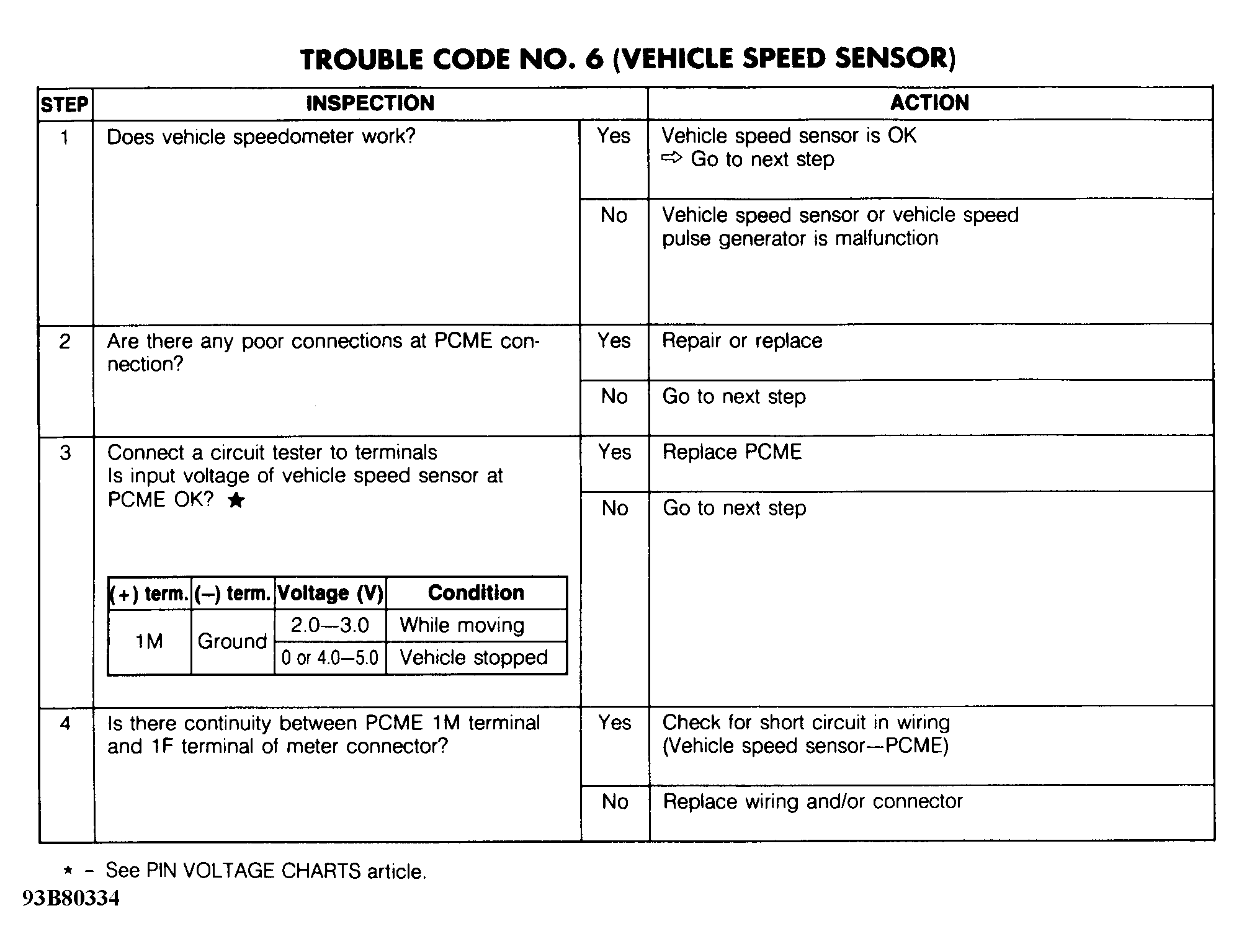

Fig 1: Trouble Code No. 6 - Diagnostic Flowchart
G93B80334Courtesy of MAZDA MOTORS CORP.

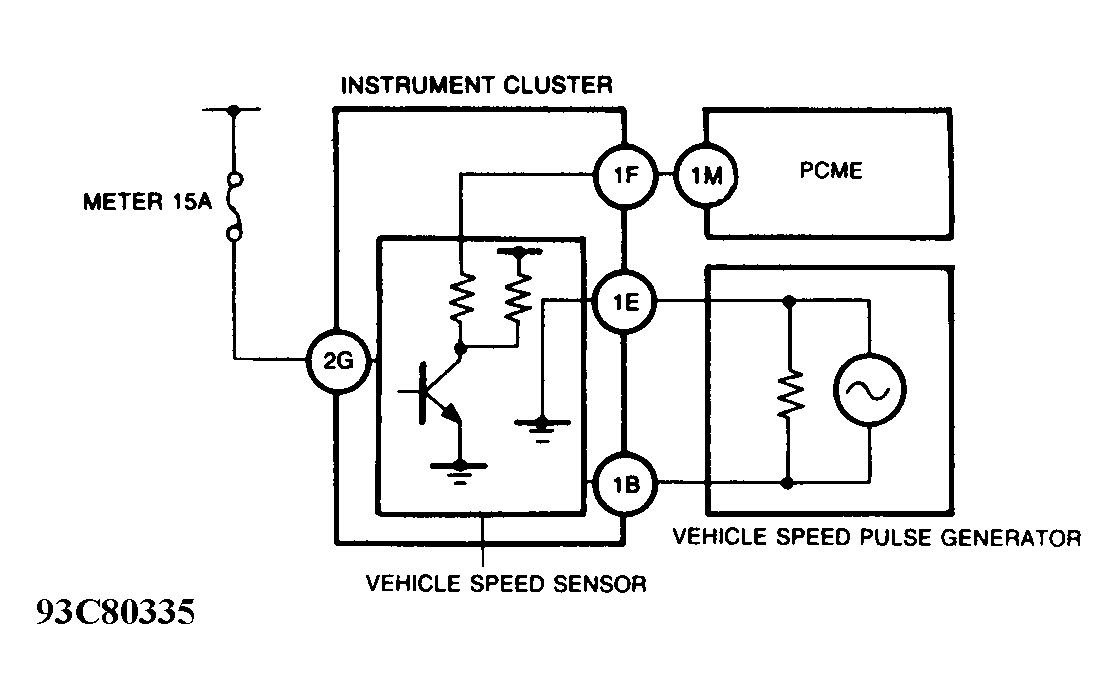

Fig 2: Trouble Code No. 6 - Schematic
G93C80335Courtesy of MAZDA MOTORS CORP.
