Trouble Code Identification: Notes

CAUTION: * If there is more than one failure present, lowest number malfunction code is displayed first, and remaining codes are displayed sequentially.

After repairing a failure, turn ignition switch off. Disconnect negative battery cable, and depress brake pedal for at least 20 seconds to erase malfunction code from PCME memory.

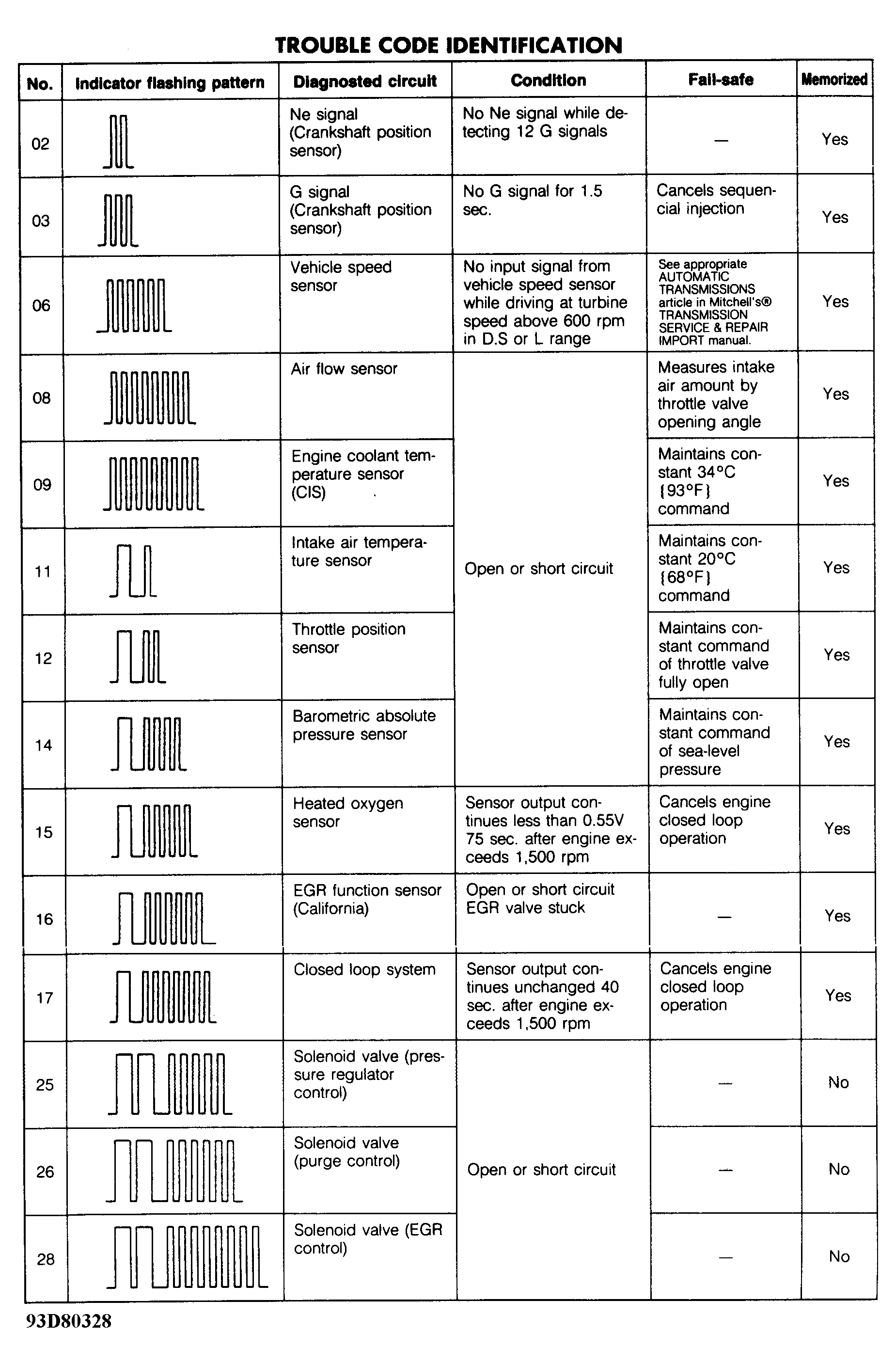

Fig 1: Trouble Code Identification

Courtesy of MAZDA MOTORS CORP.

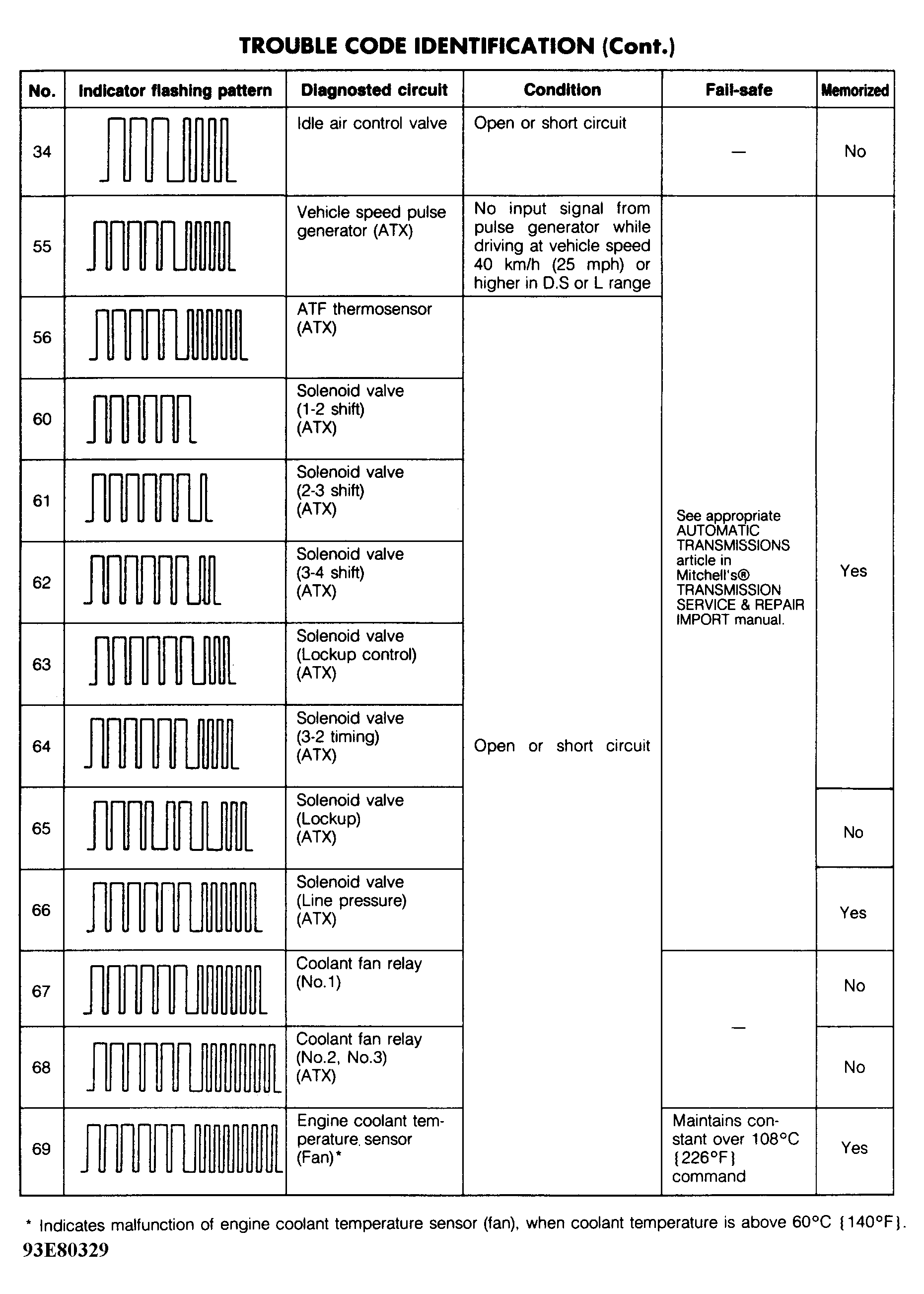

Fig 2: Trouble Code Identification (Cont.)

Courtesy of MAZDA MOTORS CORP.
