Code 28: (Solenoid Valve - EGR)

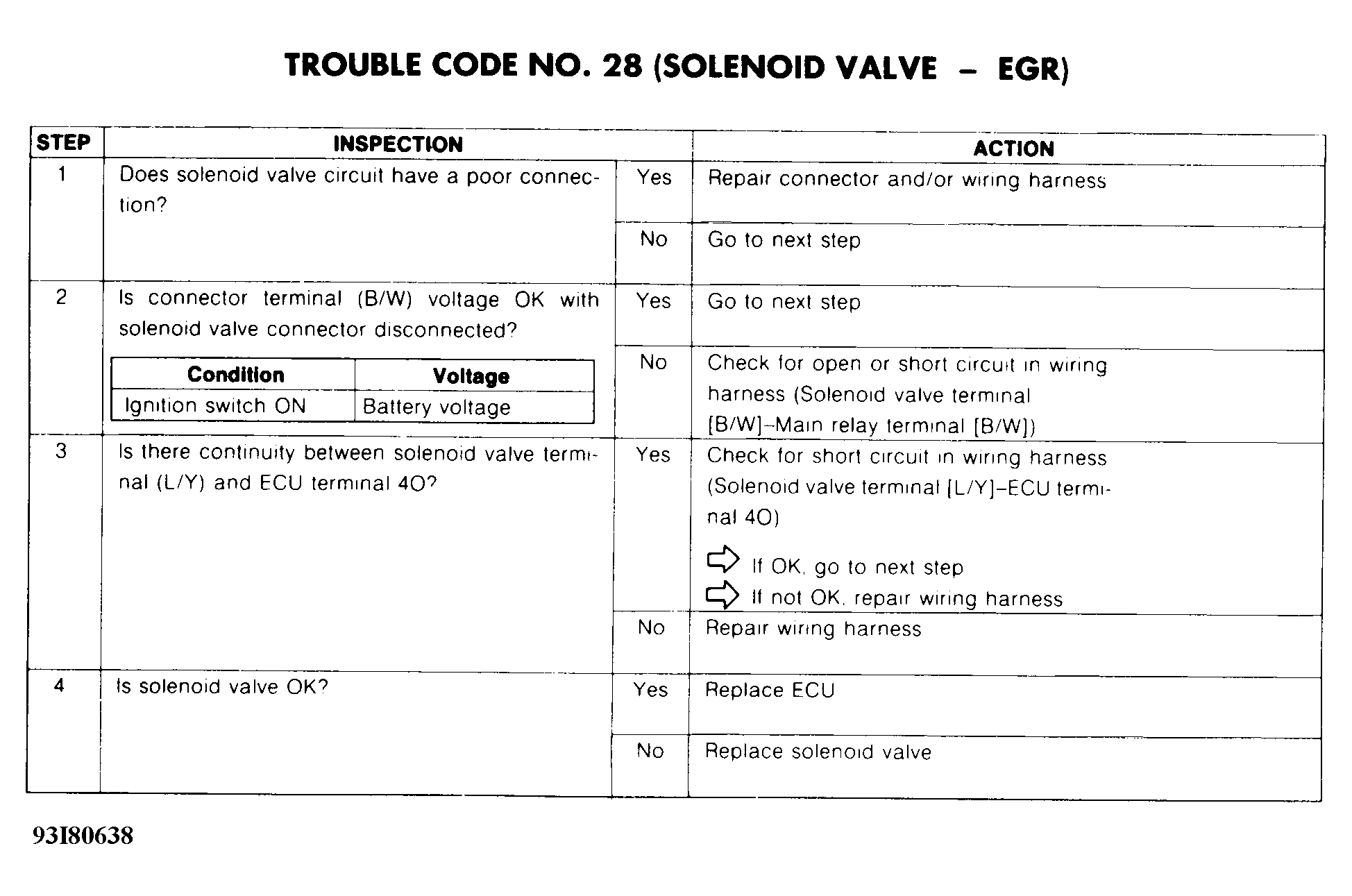

Fig 1: Trouble Code No. 28 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

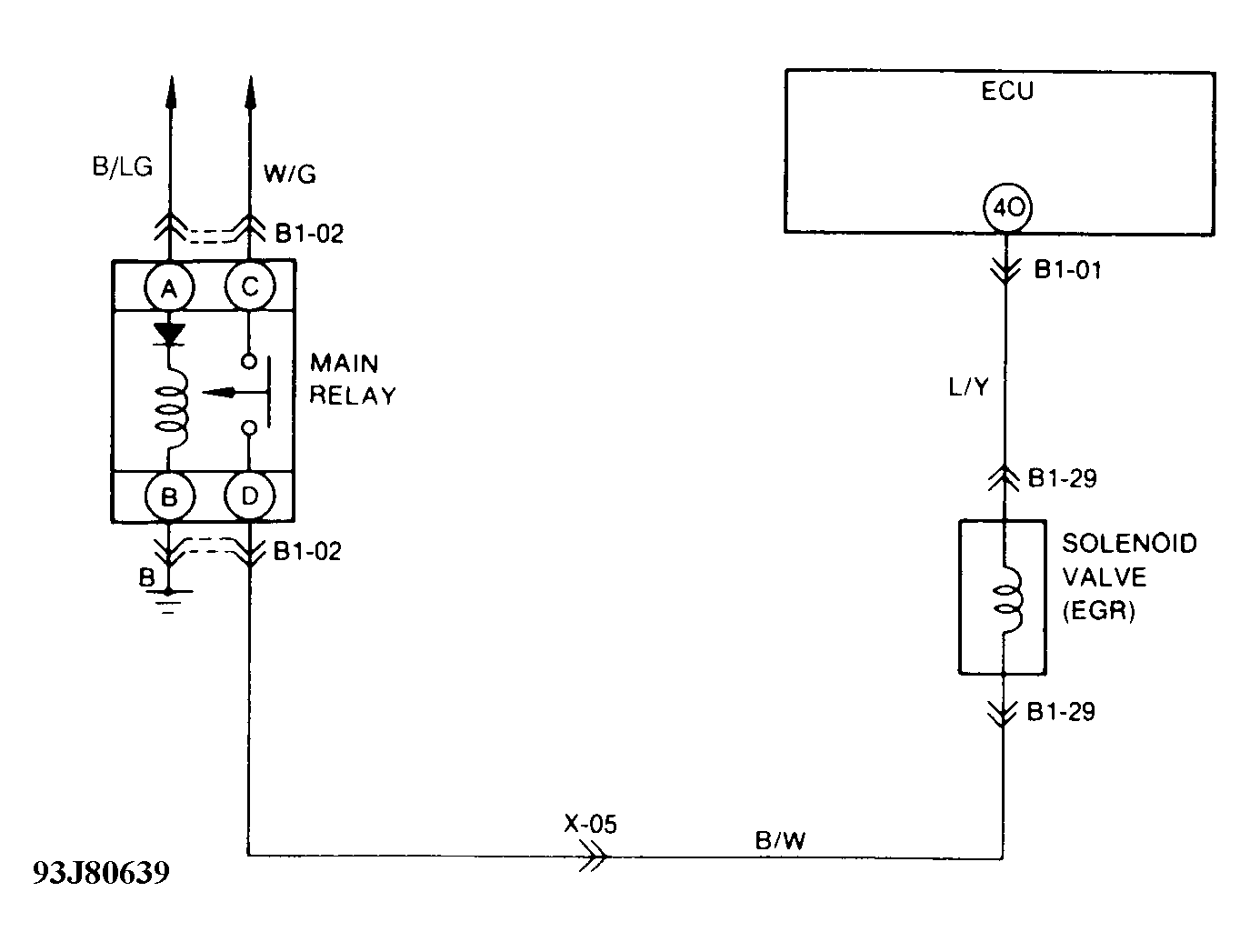

Fig 2: Trouble Code No. 28 - Schematic

Courtesy of MAZDA MOTORS CORP.
