Code 34: (Solenoid Valve - Idle Speed Control)

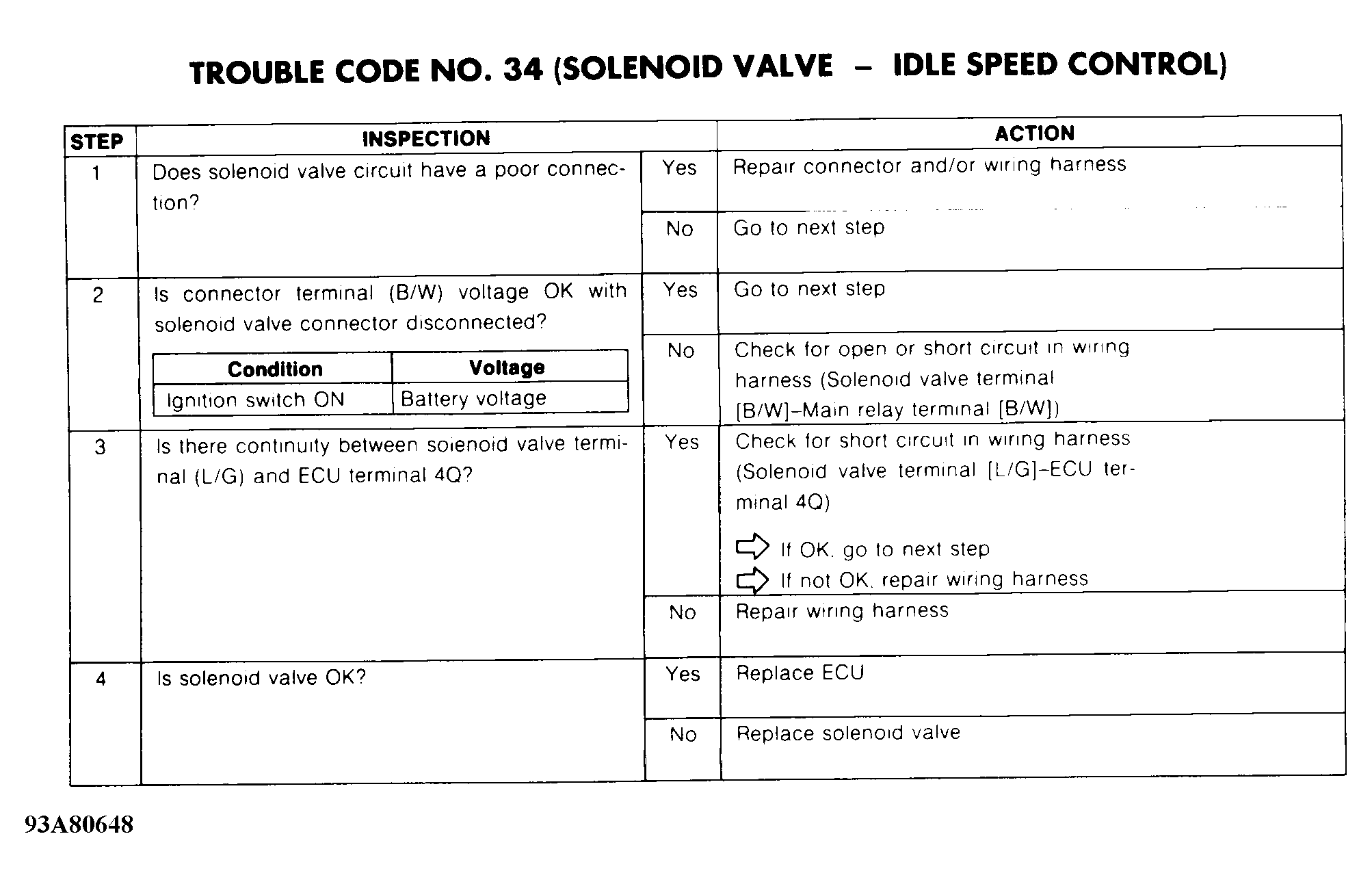

Fig 1: Trouble Code No. 34 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

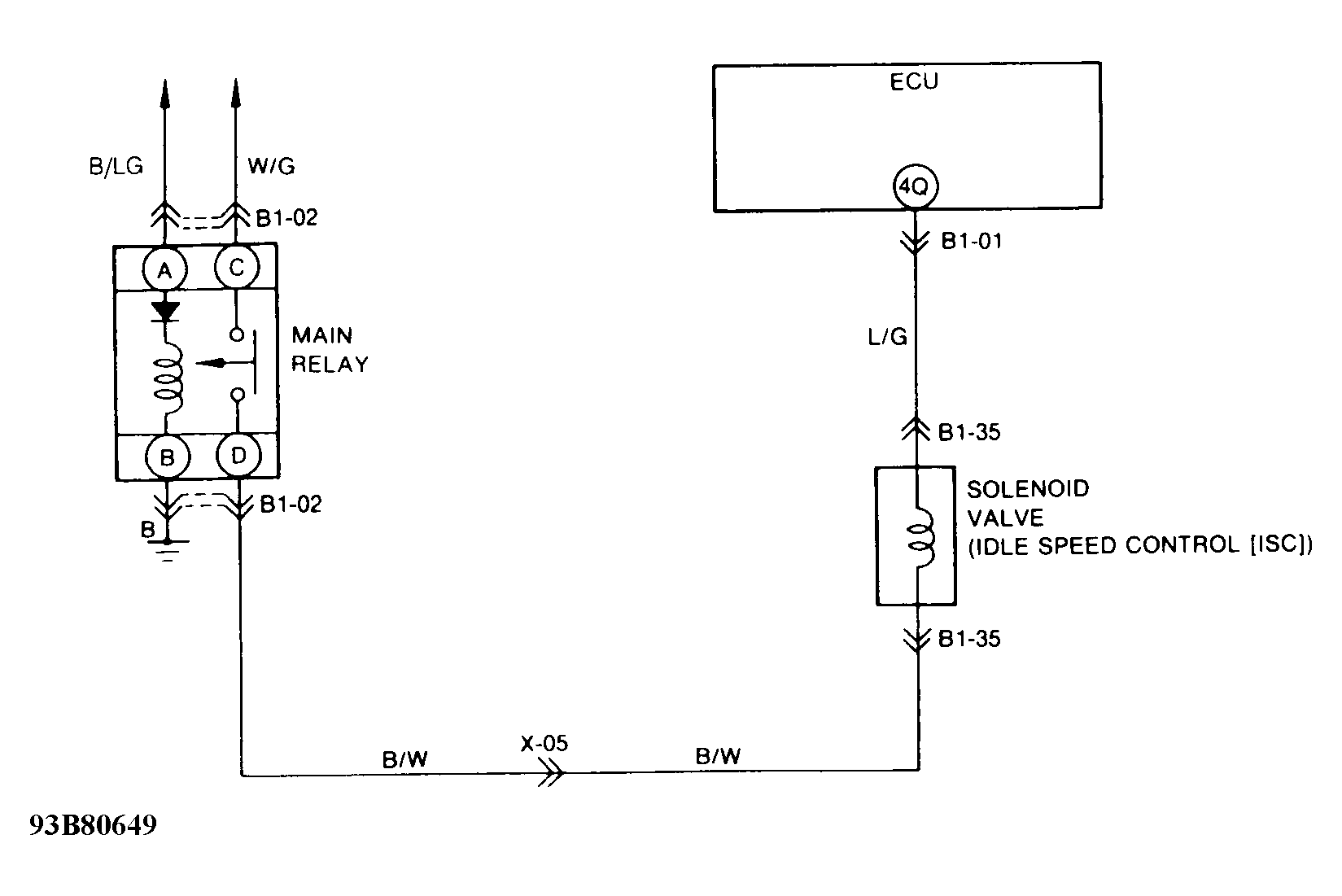

Fig 2: Trouble Code No. 34 - Schematic

Courtesy of MAZDA MOTORS CORP.
