Code 40: (Solenoid Valve - Purge Control)

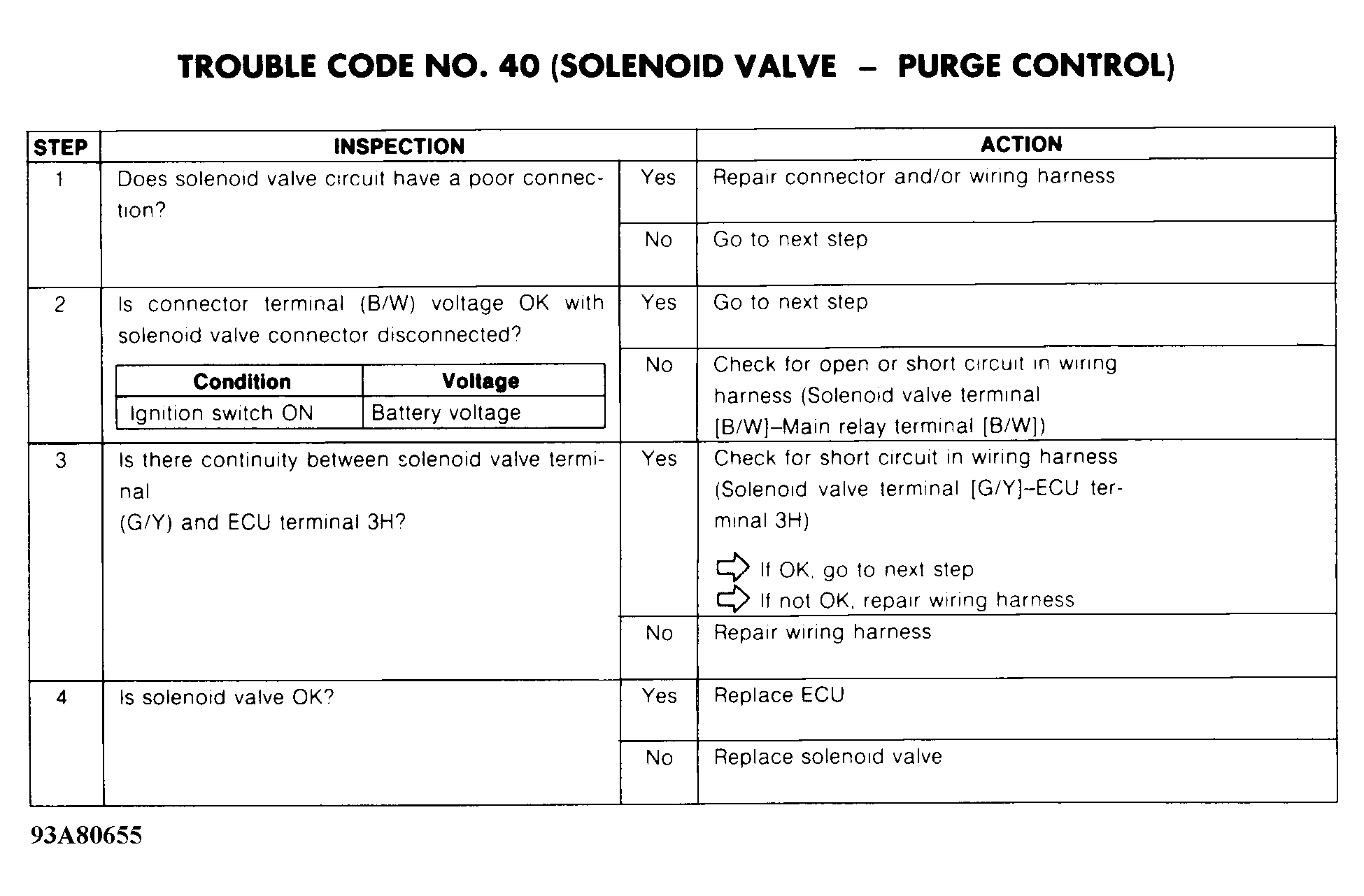

Fig 1: Trouble Code No. 40 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

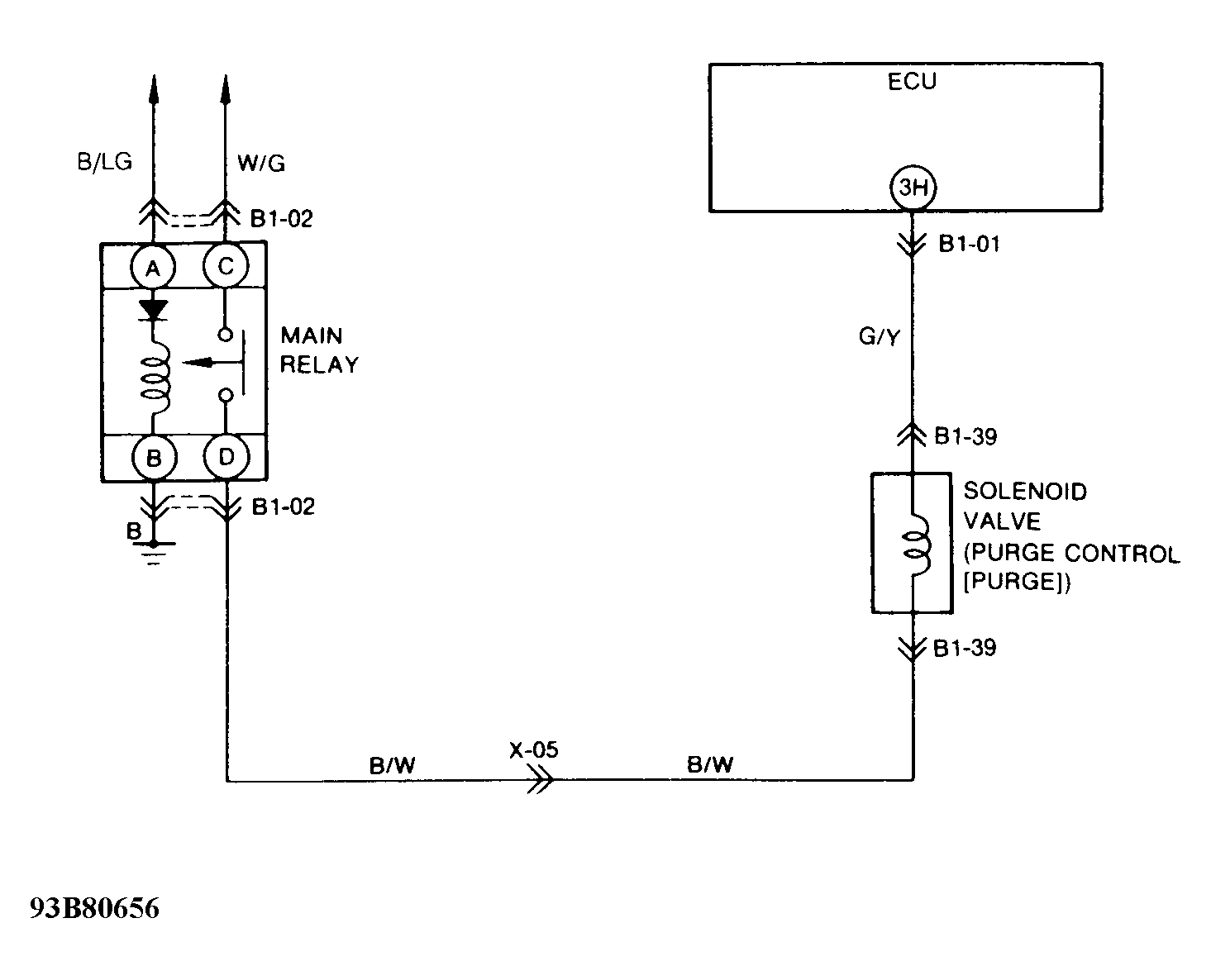

Fig 2: Trouble Code No. 40 - Schematic

Courtesy of MAZDA MOTORS CORP.
