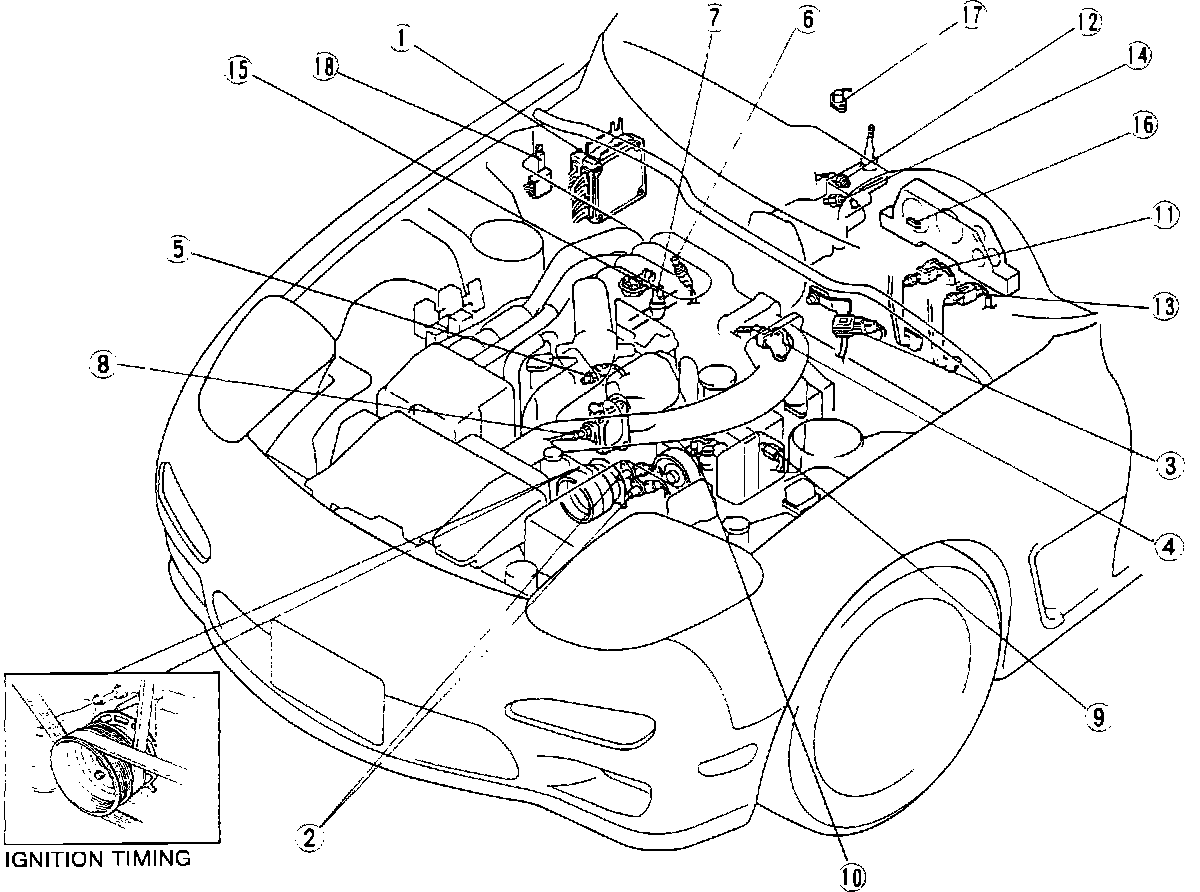

Electric Load Sensor: Locations

Component Locations (Input Devices):

1. Engine Control Unit (ECU)
2. Crank angle sensor
3. Pressure sensor
4. Throttle sensor
5. Water thermosensor
6. Intake air thermosensor
7. Fuel thermosensor
8. Oxygen sensor
9. Knock sensor
10. P/S pressure switch
11. Stoplight switch
12. Neutral switch (M/T)
13. Clutch switch
14. 1-2 switch
15. EGR switch (California only)
16. Mileage switch
17. Heat hazard sensor
18. E/L unit
