Computers and Control Systems: Locations

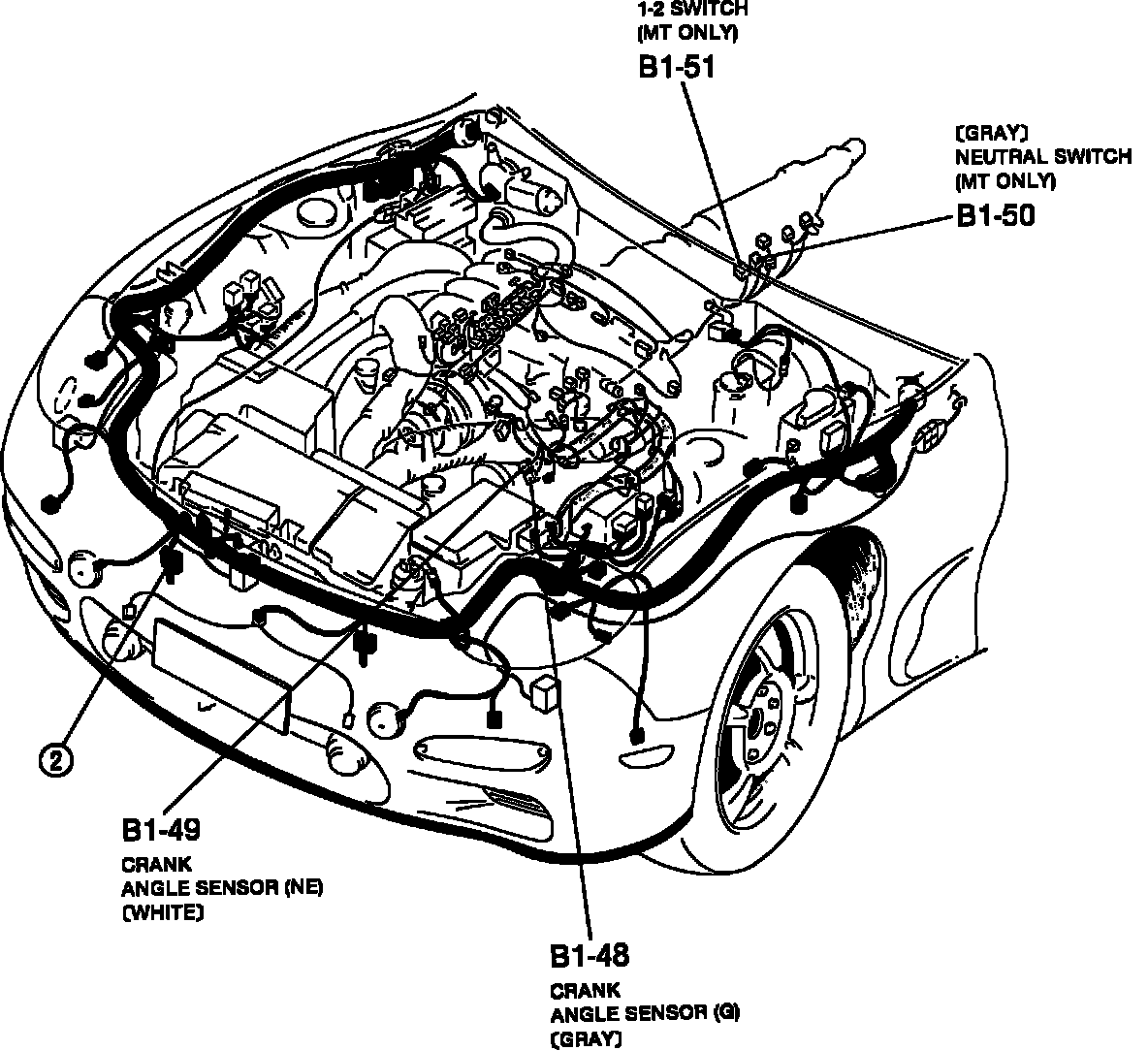

Harness And Connector Locations (Part 1):

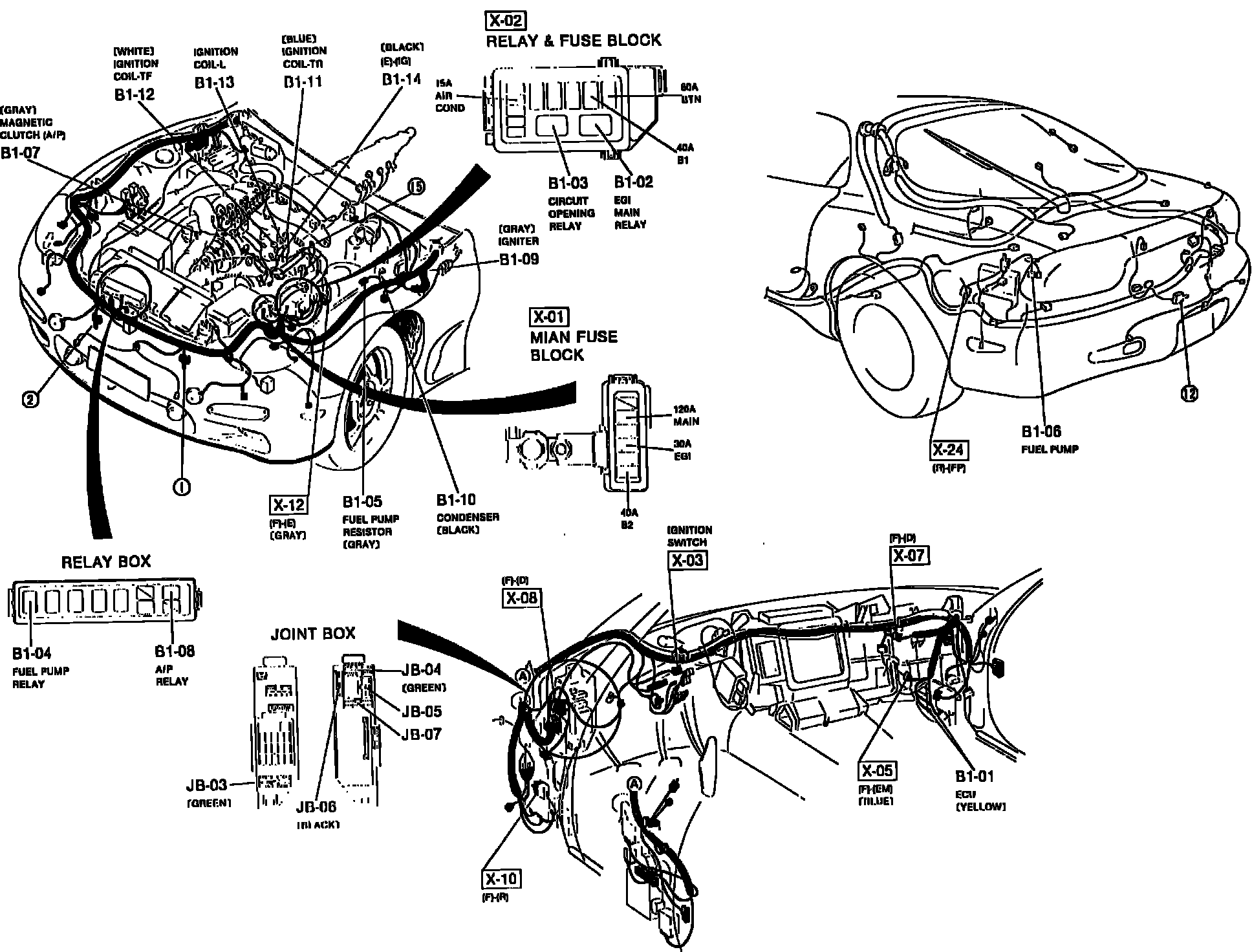

Harness And Connector Locations (Part 2):

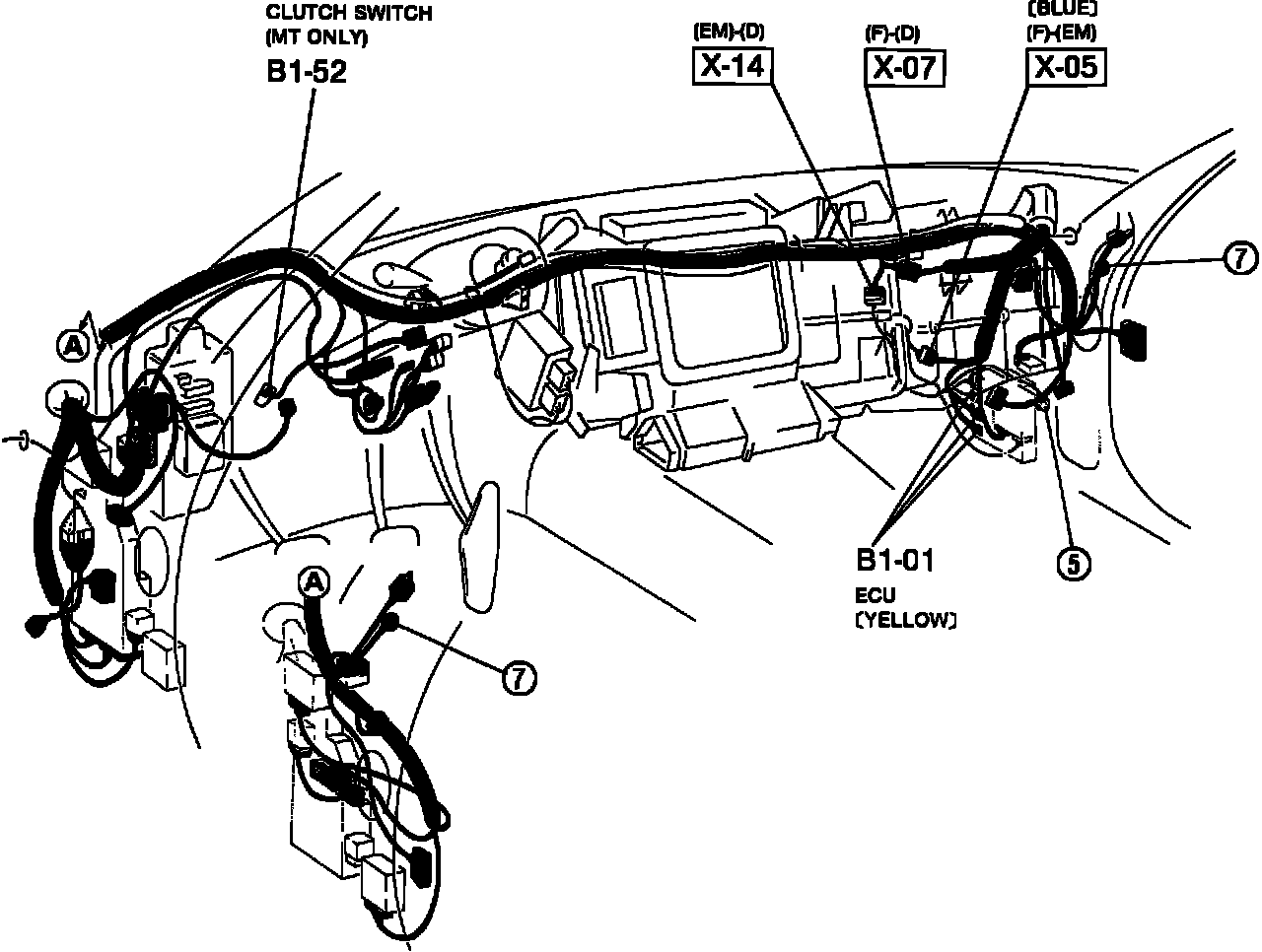

Harness And Connector Locations (Part 3):

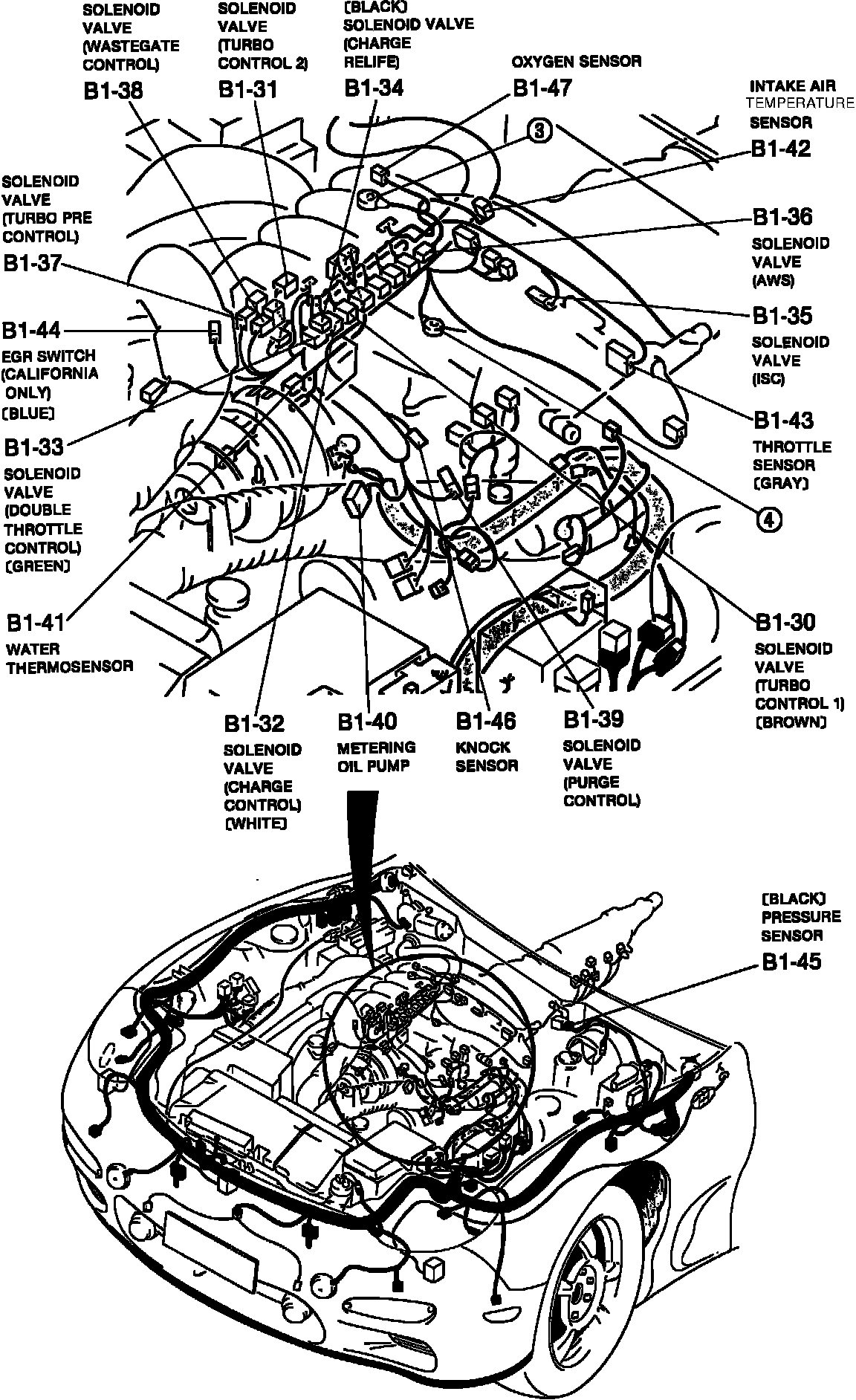

Harness And Connector Locations (Part 4):

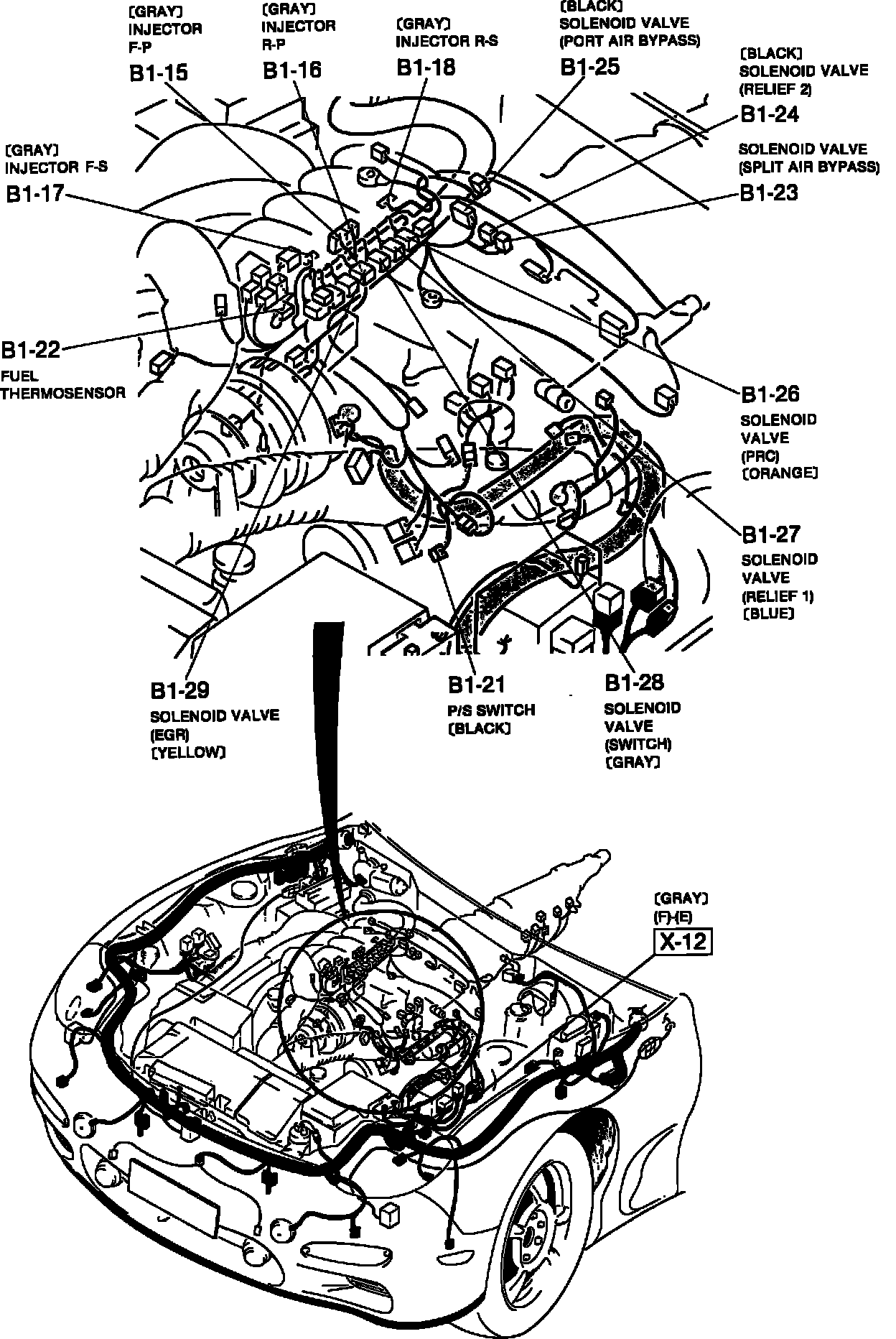

Harness And Connector Locations (Part 5):
