Main Relay (Computer/Fuel System): Testing and Inspection

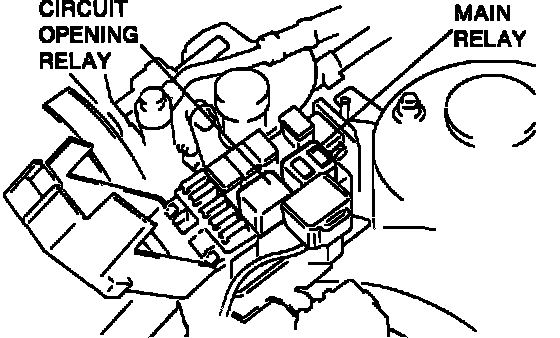

Circuit Opening And Main Relays:

Main Relay Testing:

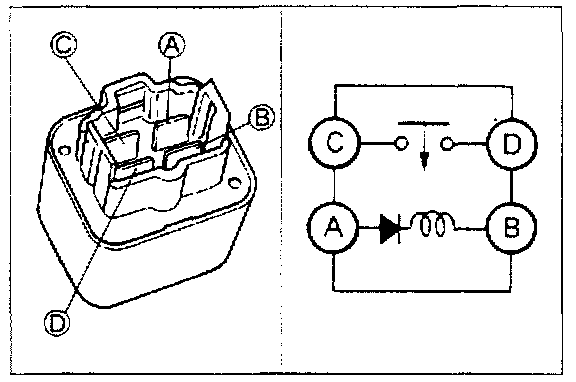

1. Unplug relay. Apply battery voltage across terminals A and B.
2. Check that continuity exists across terminals C and D.
3. Disconnect voltage. There should be no continuity across terminals C and D.
4. Replace relay if not as specified.
