Scan Tool Testing and Procedures

Switch Monitor Function:

NOTE: This test requires use of Mazda Special Service Tools (SST). To determine if aftermarket "Scan" tools will perform this function, check with manufacturer.

1. Connect System Selector (SST #49 B019 9A0) to diagnosis connector.
2. Set system select to position "1."
3. Set "TEST SW" to "SELF-TEST."
4. Connect Self-Diagnosis Checker to System Selector and a ground.
5. Set Self-Diagnosis Checker select switch to position "A."
6. Turn ignition switch "ON."

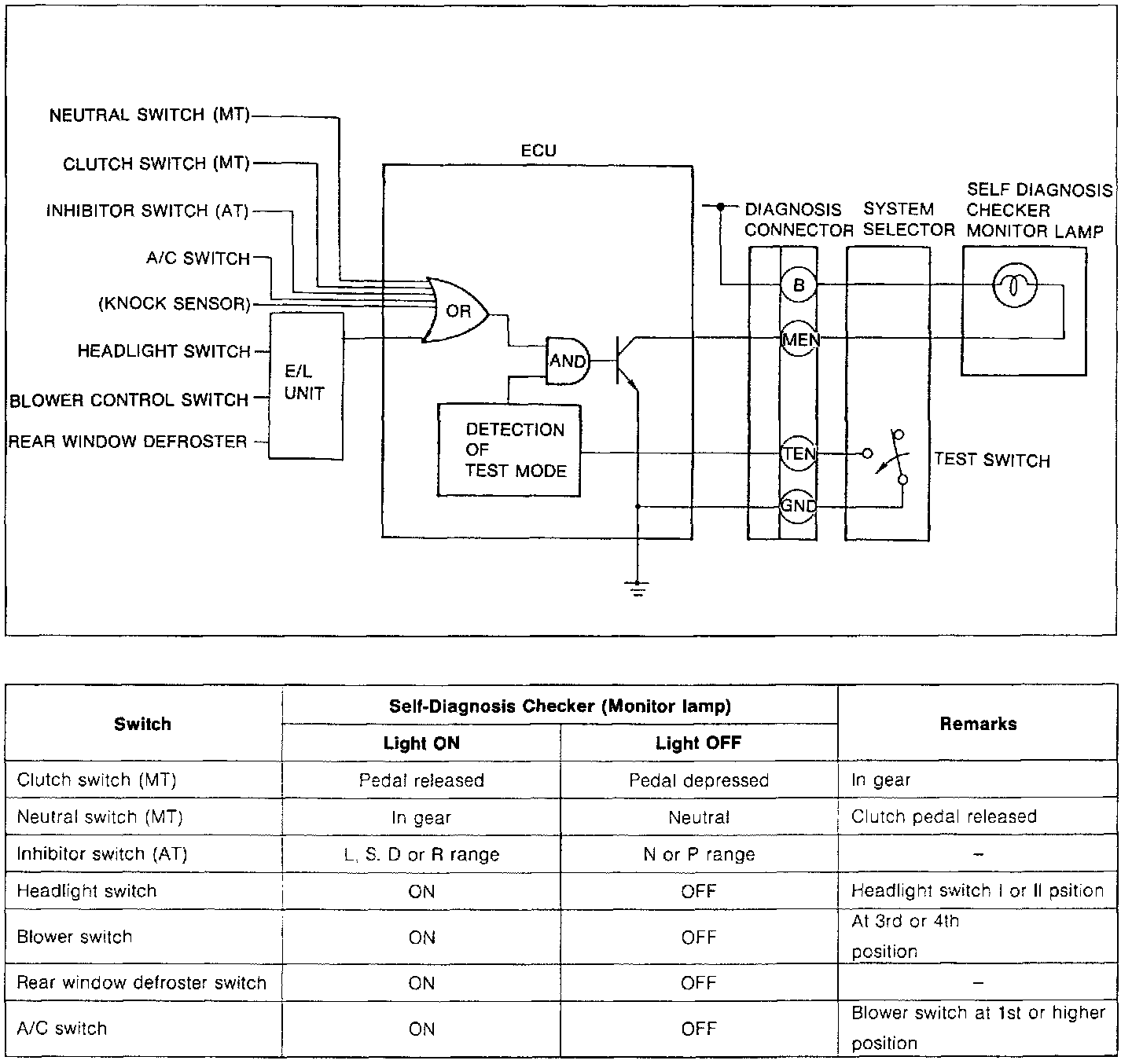

7. Check if monitor lamp illuminates when each switch is made to function as described on image chart:

CAUTION: When any switch is activated, monitor lamp will stay "ON." Do not start engine.

^ If malfunctions are detected, check individual switches with these charts:

SWITCH CHECK CHARTS

Part 1

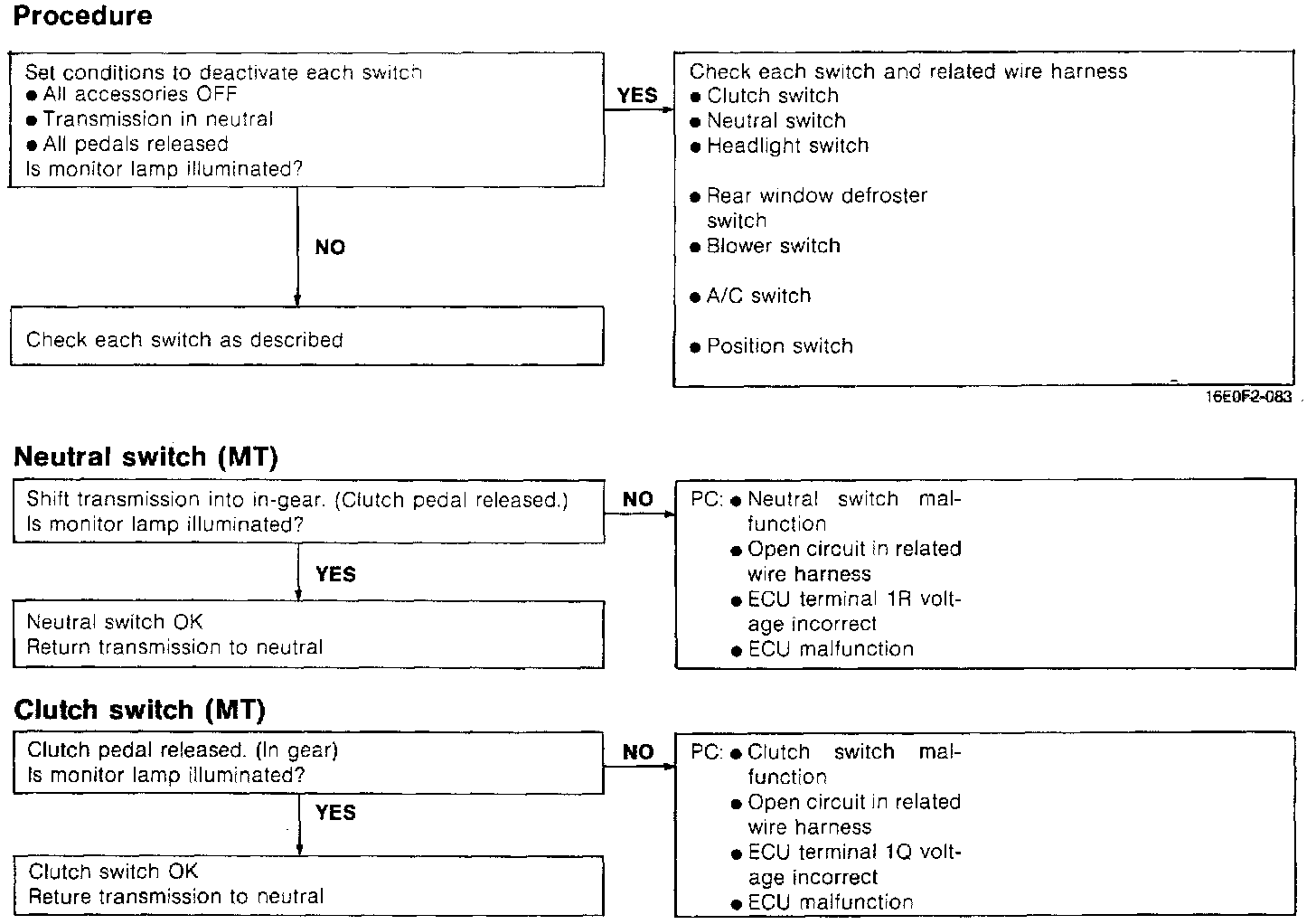

Switch Check Chart (Part 1):

^ Neutral switch (M/T)
^ Clutch switch (M/T)

Part 2

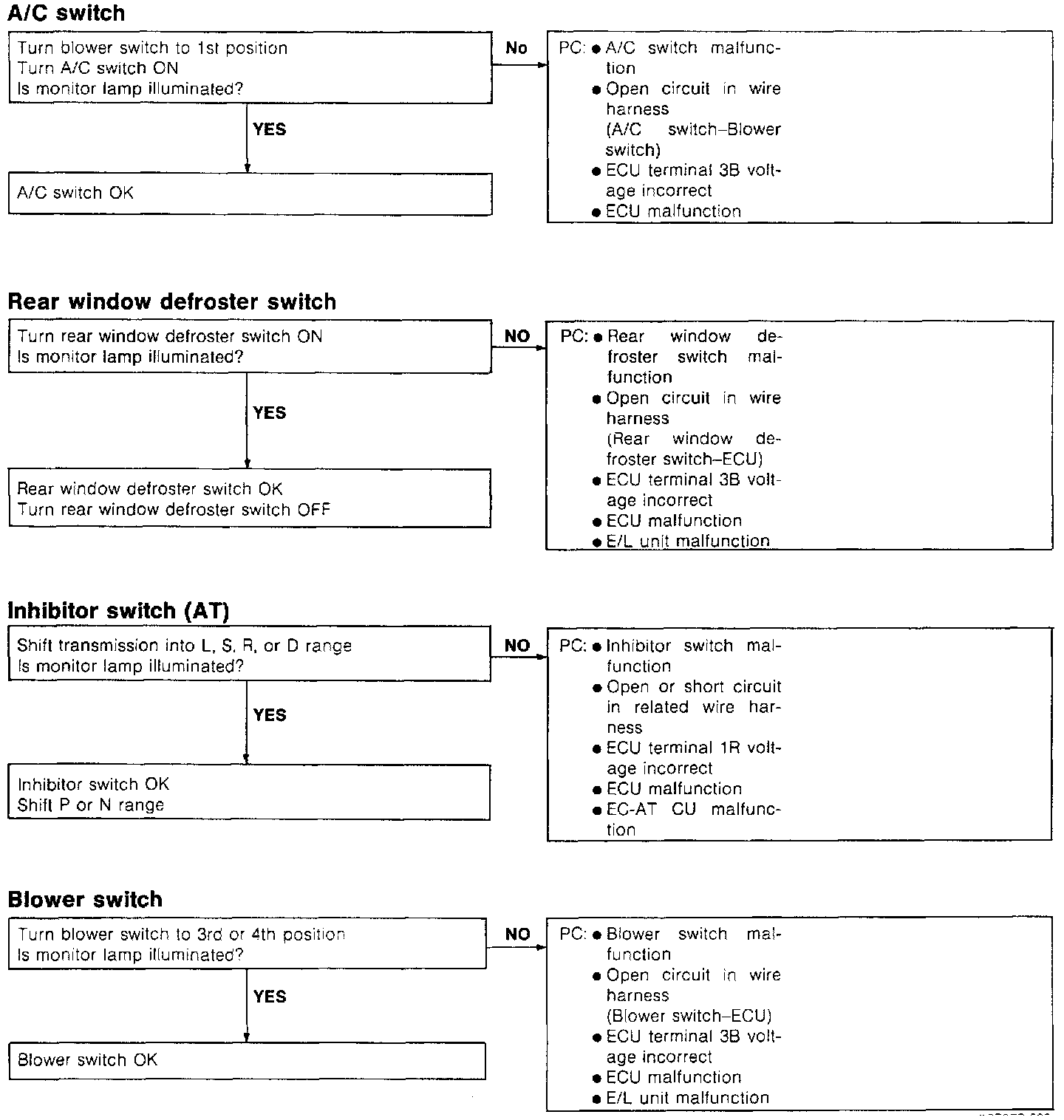

Switch Check Chart (Part 2):

^ A/C switch
^ Rear window defroster switch
^ Inhibitor switch (A/T)
^ Blower switch
