Mazda
>>
1993
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Control Module, A/T
>>
Part 1 of 5
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Part 1 of 5

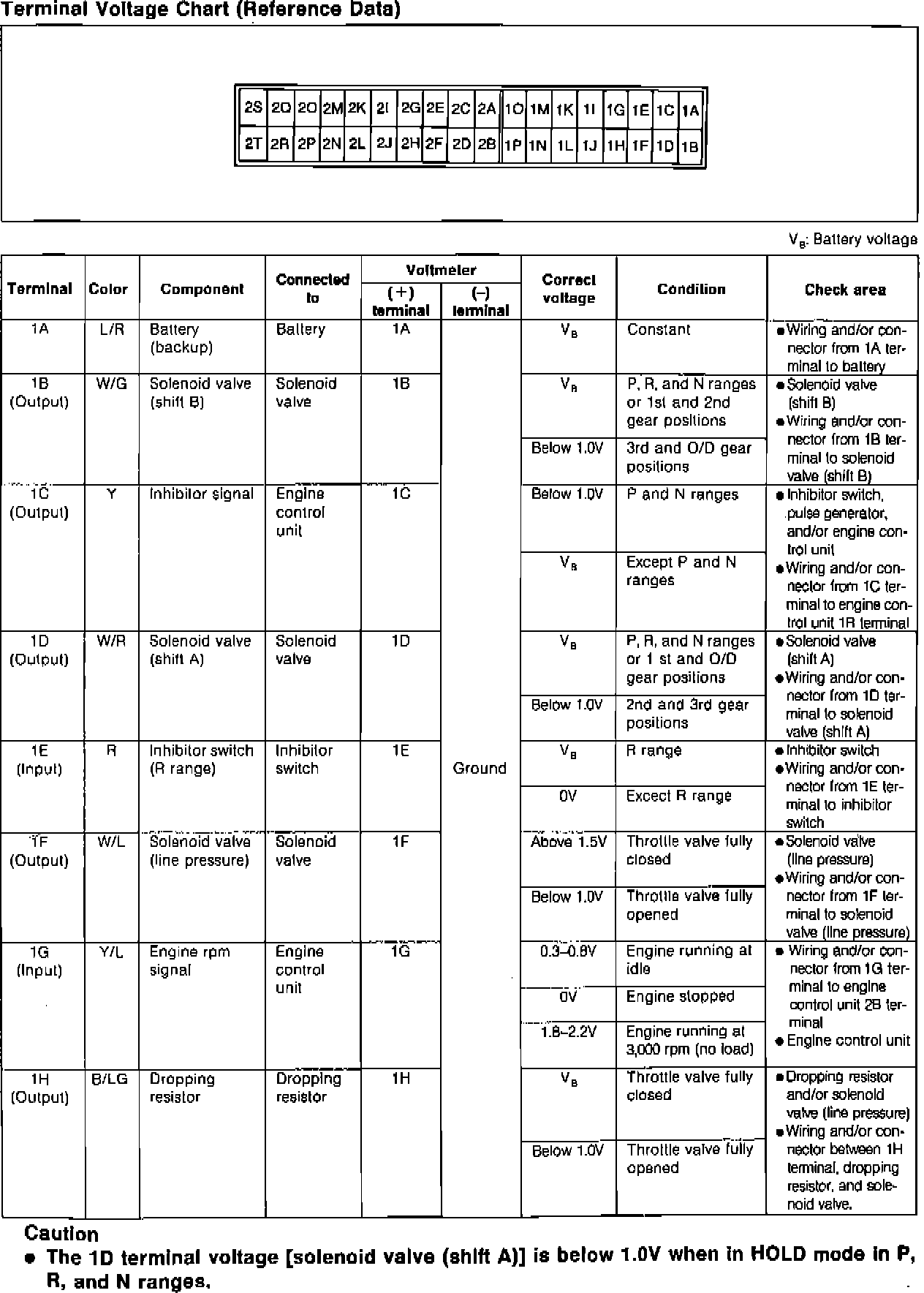

Automatic Transmission Terminal Voltage Chart:
