Engine Control Module

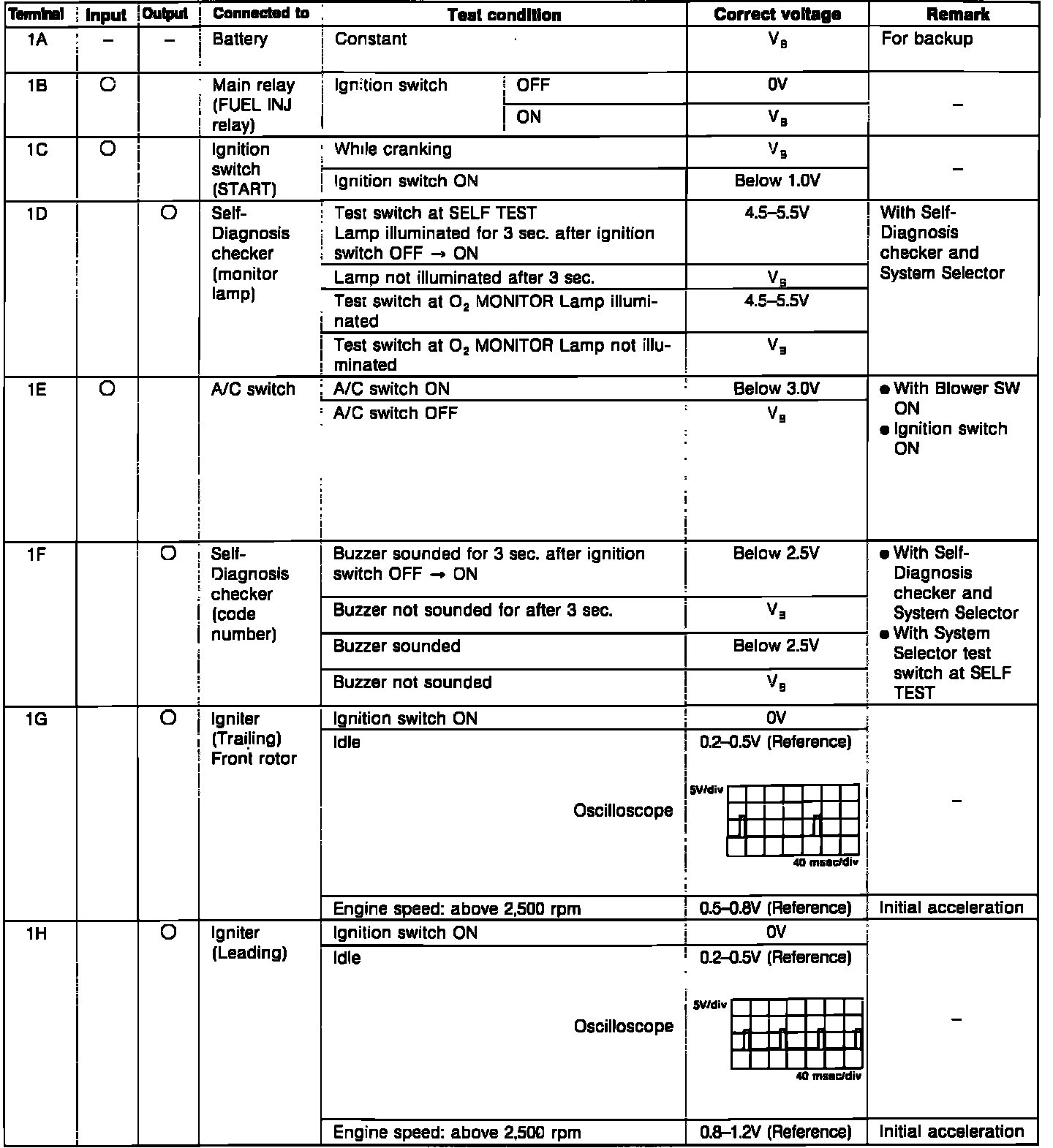

Pins 1A - 1H

ECU Pin Voltage Chart (Part 1):

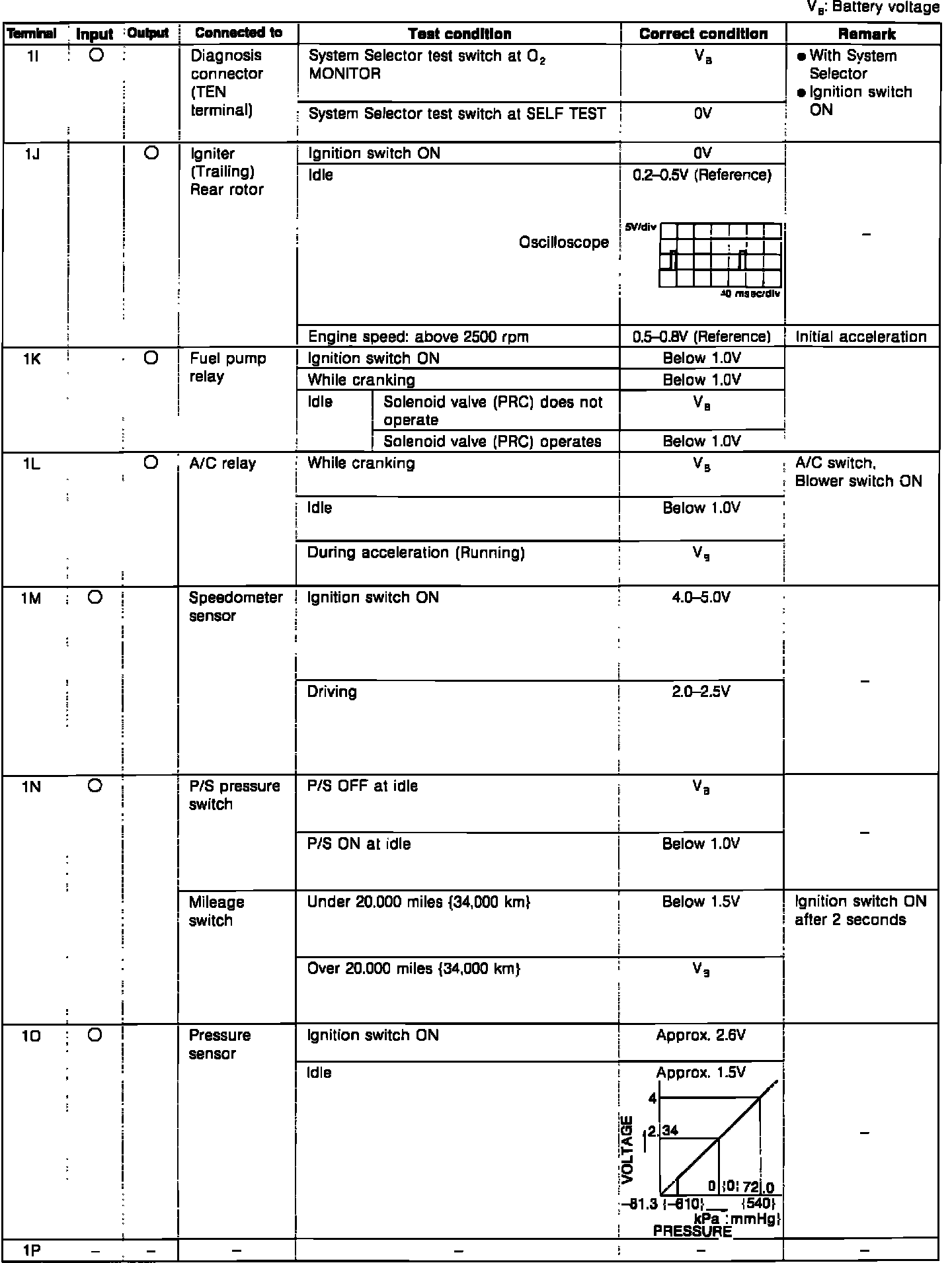

Pins 1I - 1P

ECU Pin Voltage Chart (Part 2):

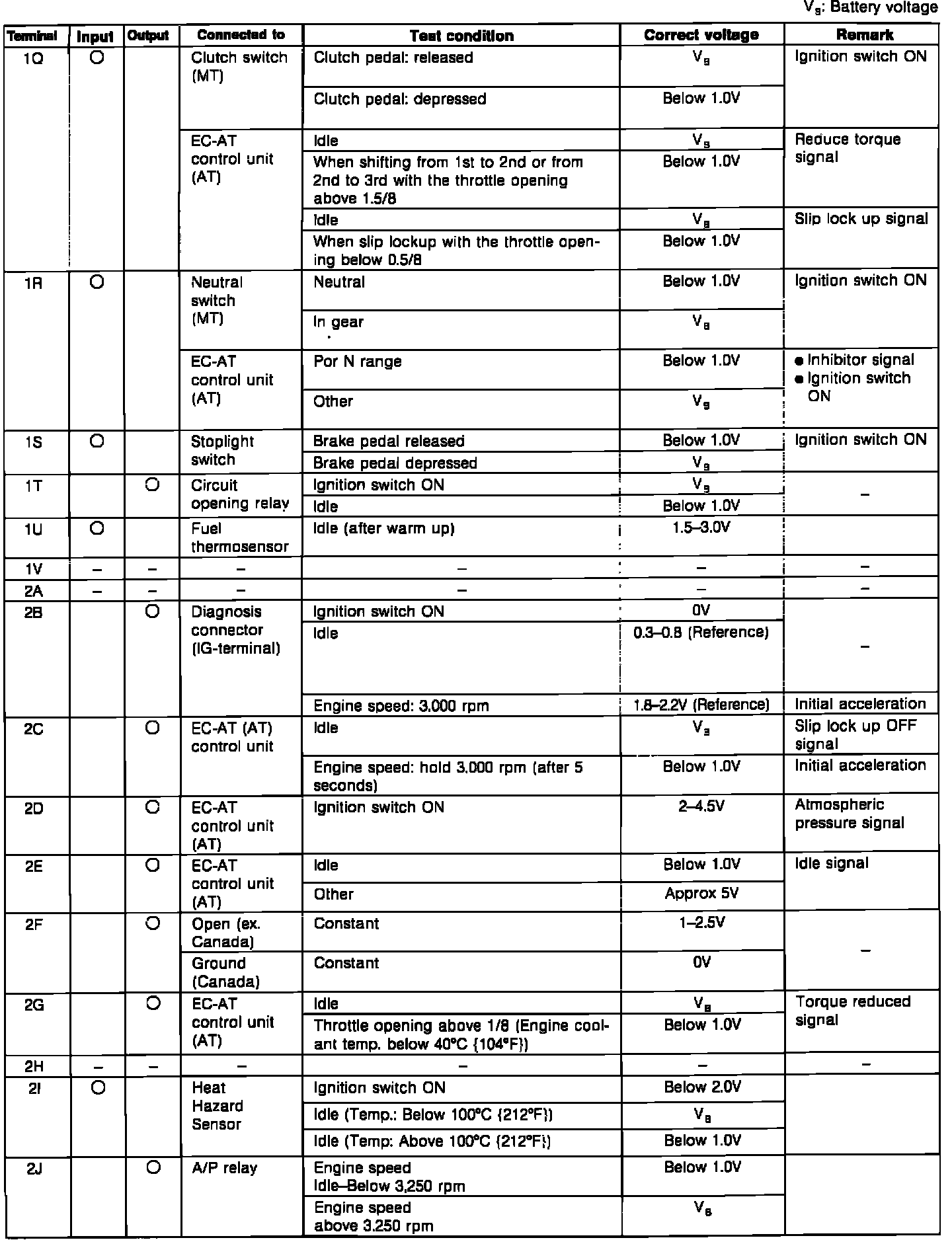

Pins 1Q - 2J

ECU Pin Voltage Chart (Part 3):

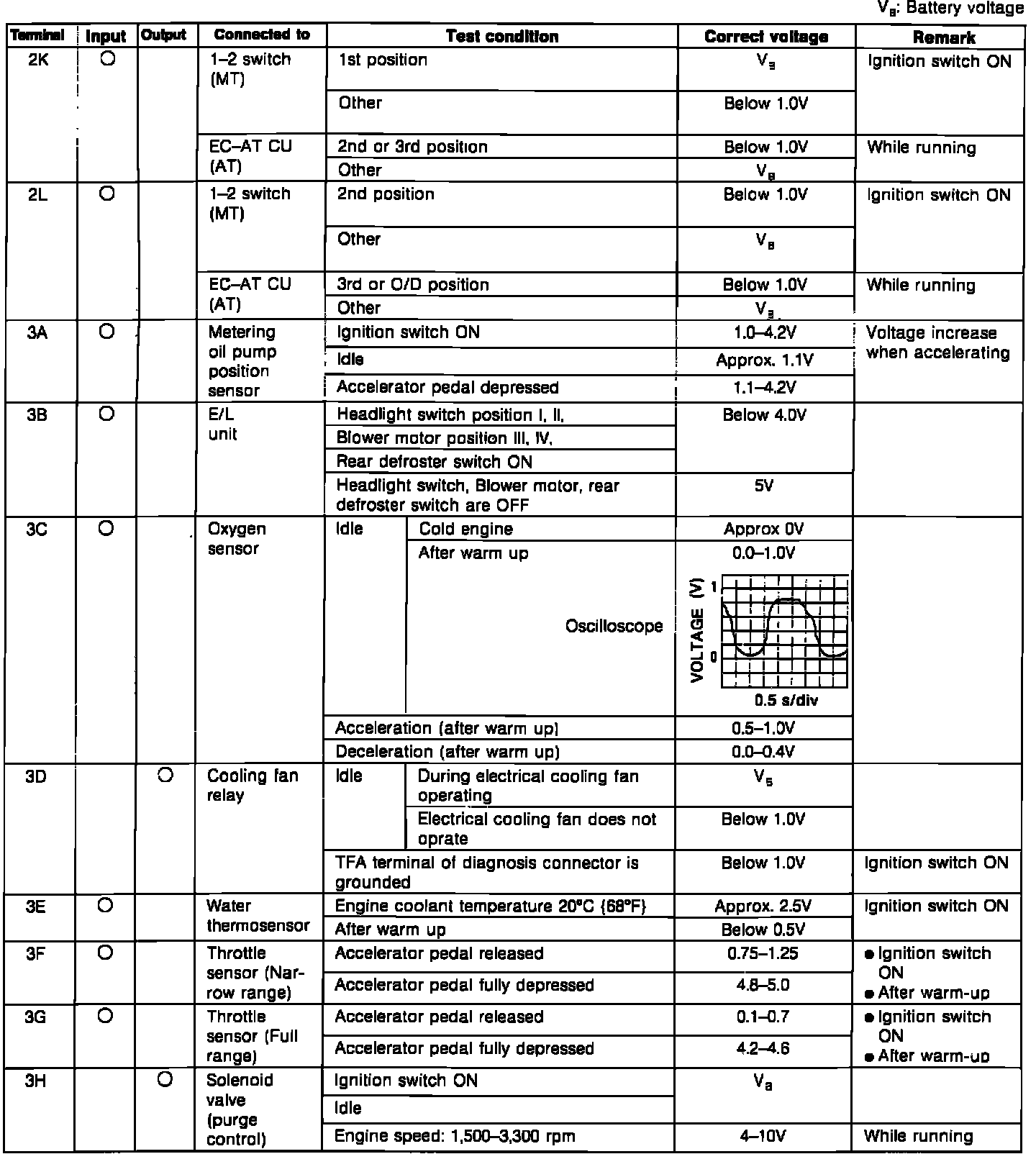

Pins 2K - 3H

ECU Pin Voltage Chart (Part 4):

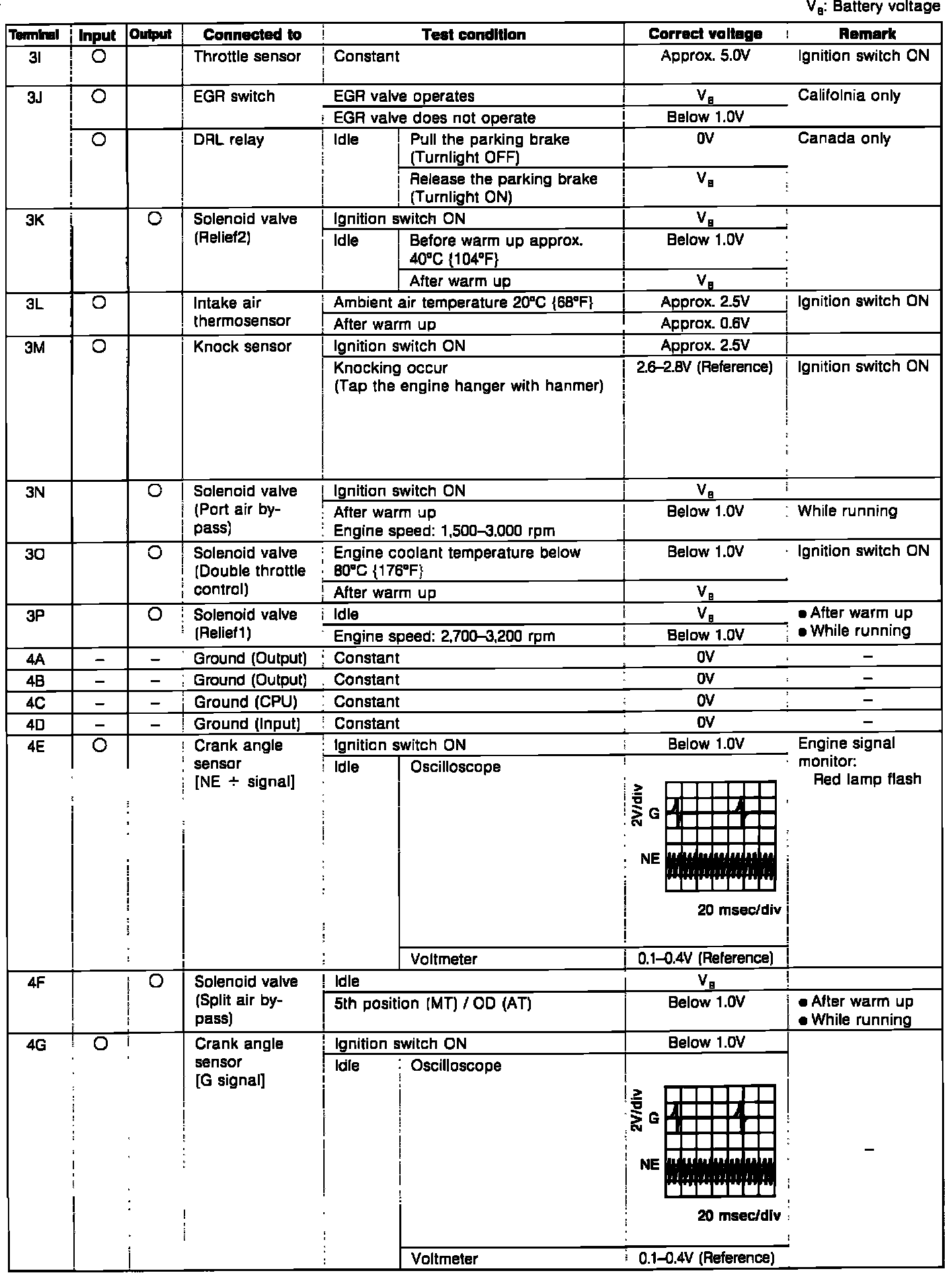

Pins 3I - 4G

ECU Pin Voltage Chart (Part 5):

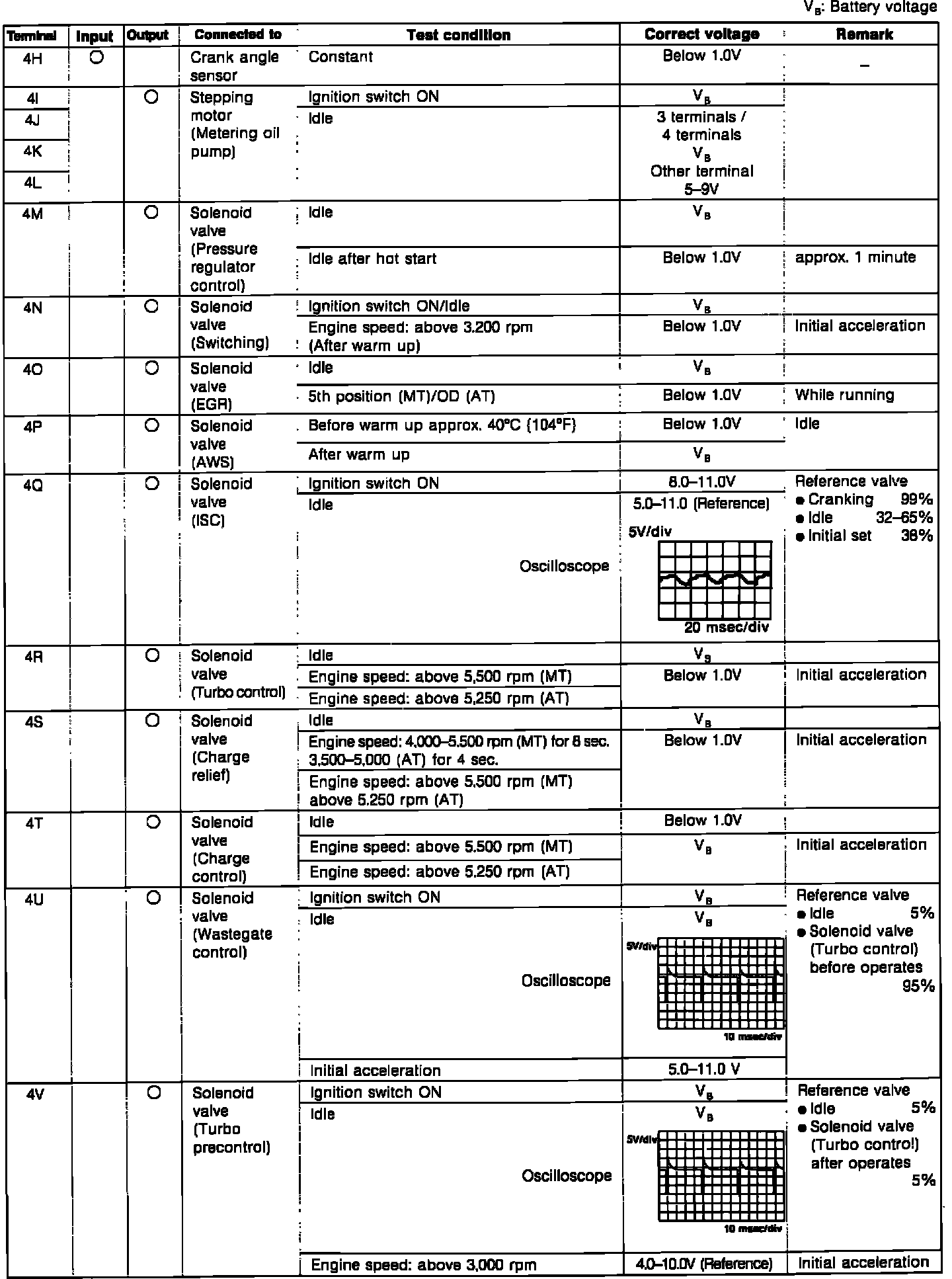

Pins 4H - 4V

ECU Pin Voltage Chart (Part 6):

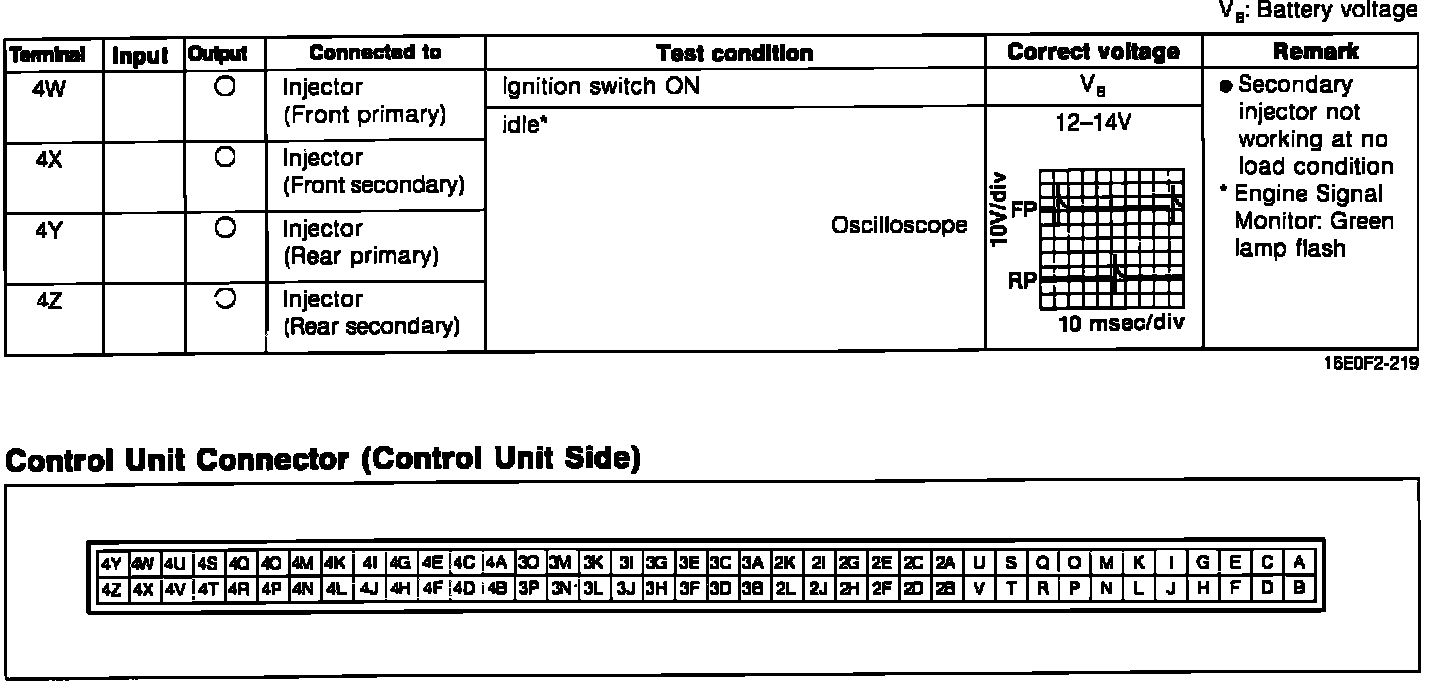

Pins 4W - 4Z and ECU Connector ID

ECU Pin Voltage Chart (Part 7):
