Code 12: (Throttle Position Sensor)

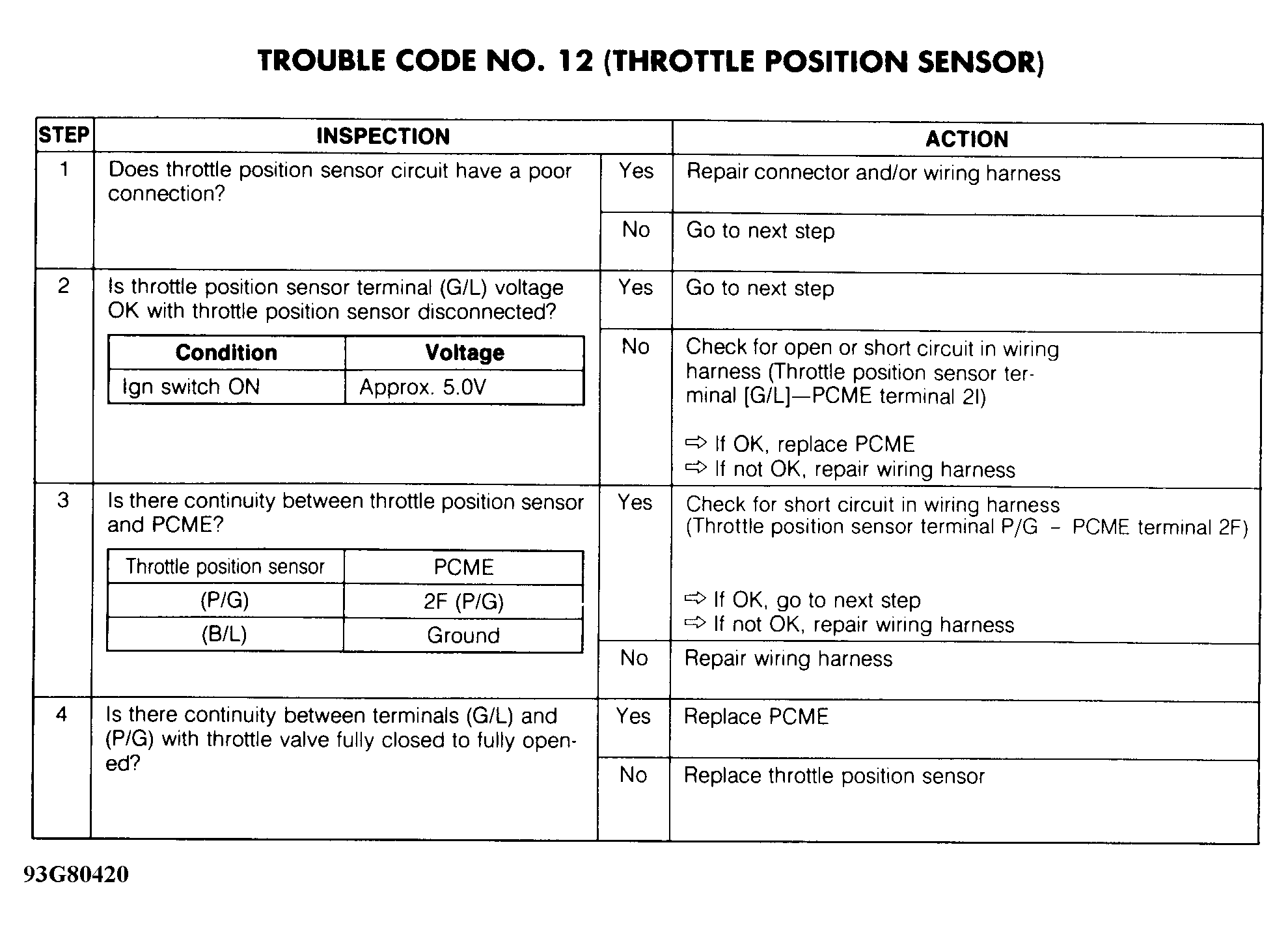

Fig 1: Trouble Code No. 12 Diagnostic Chart (Throttle Position Sensor)
G93G80420

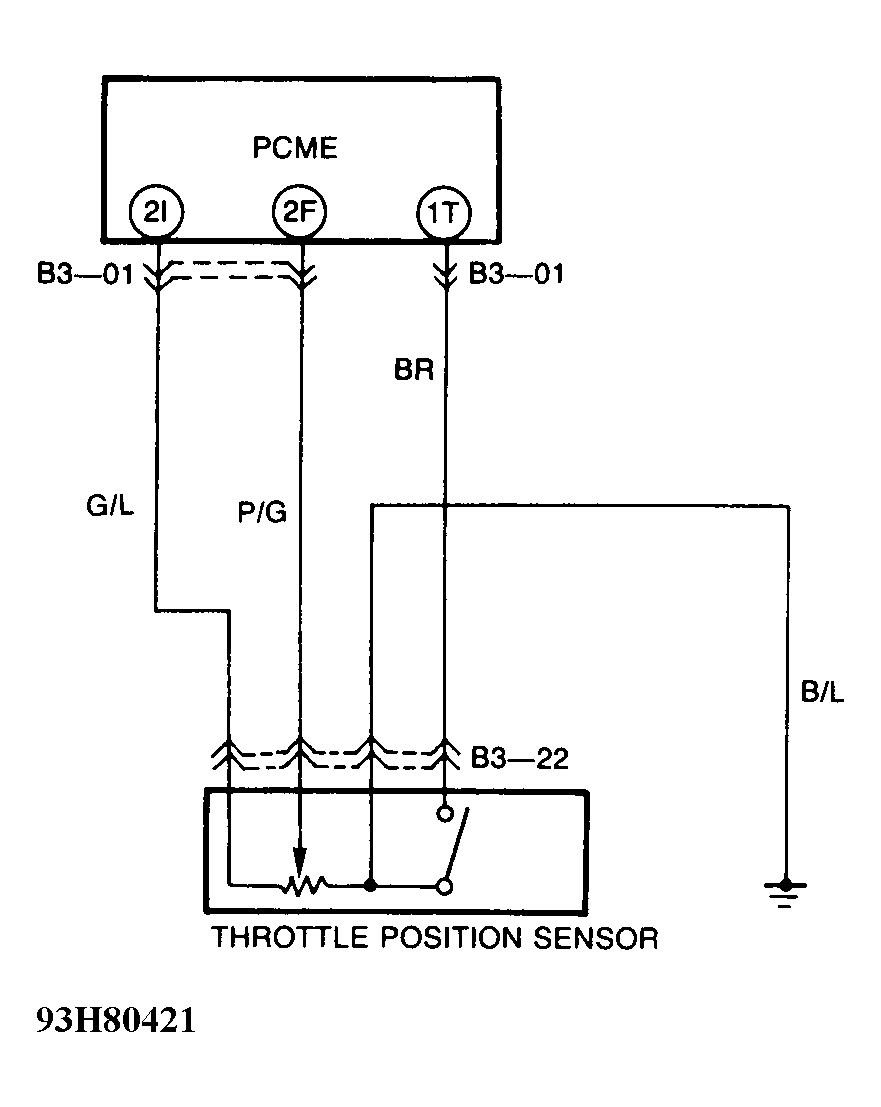

Fig 2: Trouble Code No. 12 Schematic (Throttle Position Sensor)
G93H80421
