Code 16: (EGR Function Sensor)

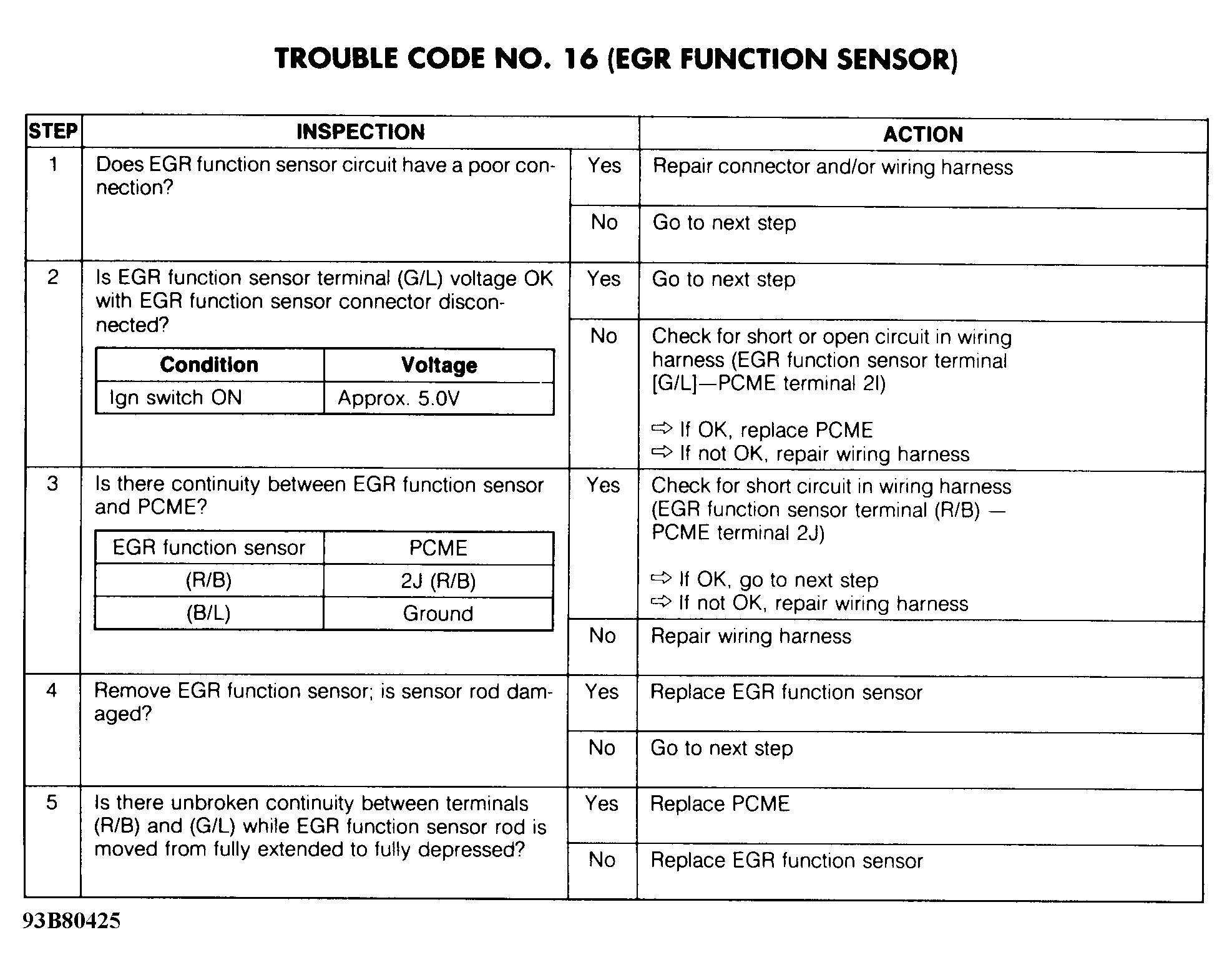

Fig 1: Trouble Code No. 16 Diagnostic Chart (EGR Function Sensor)
G93B80425

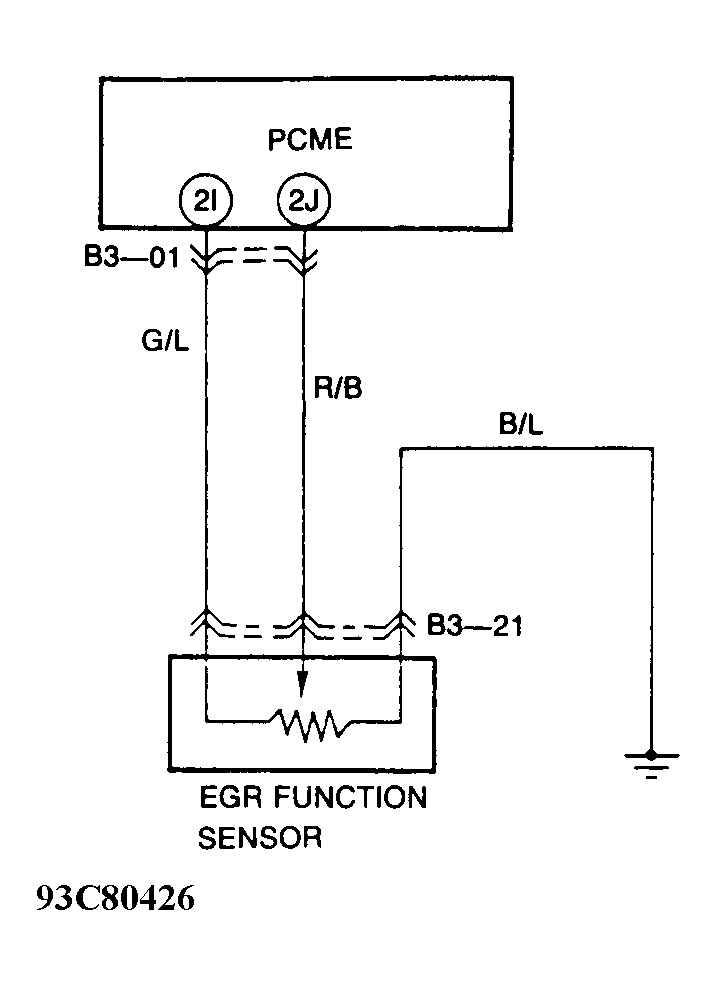

Fig 2: Trouble Code No. 16 Schematic (EGR Function Sensor)
G93C80426
