Code 5: (Knock Sensor)

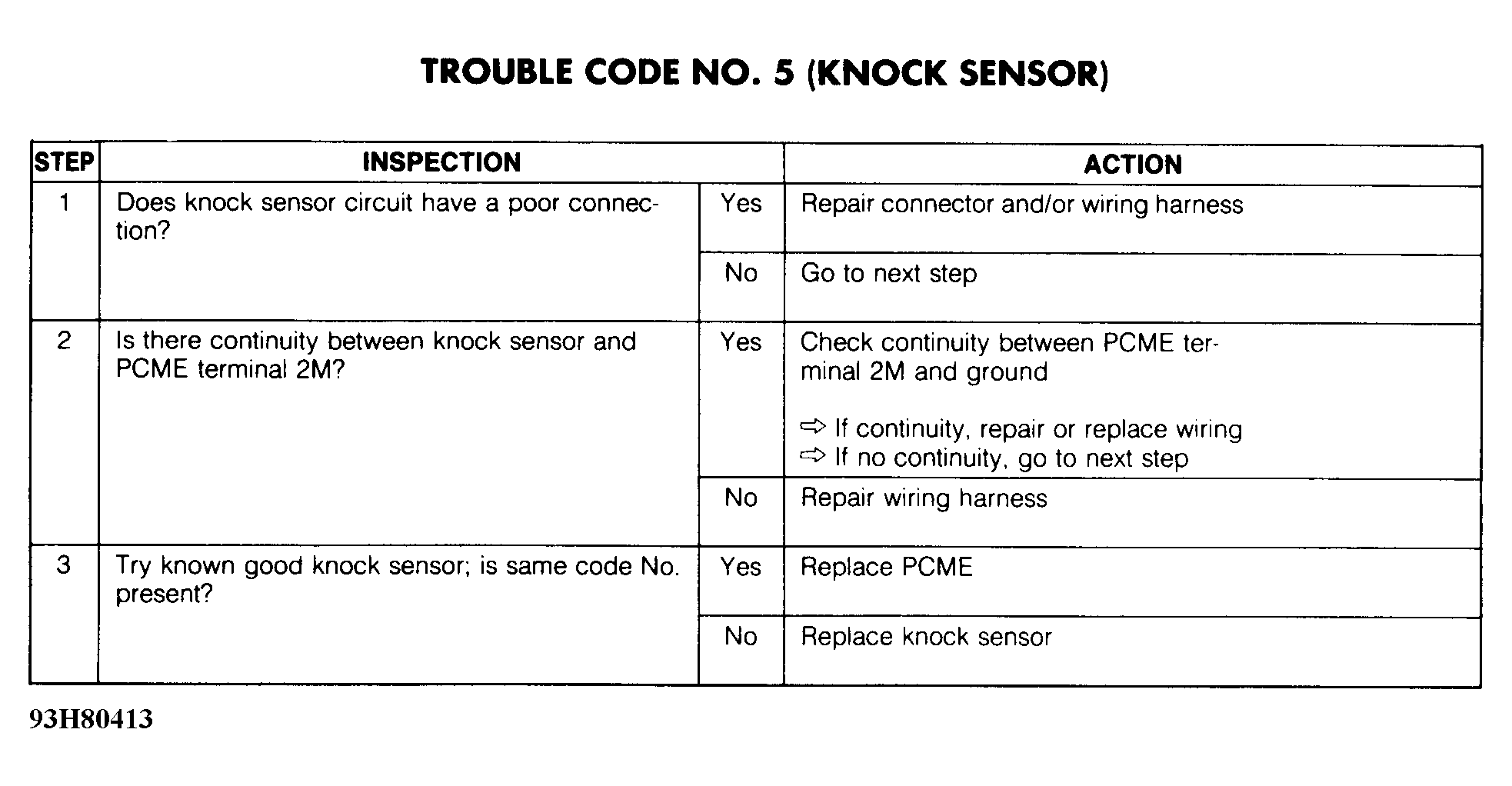

Fig 1: Trouble Code No. 5 Diagnostic Chart (Knock Sensor)

G93H80413

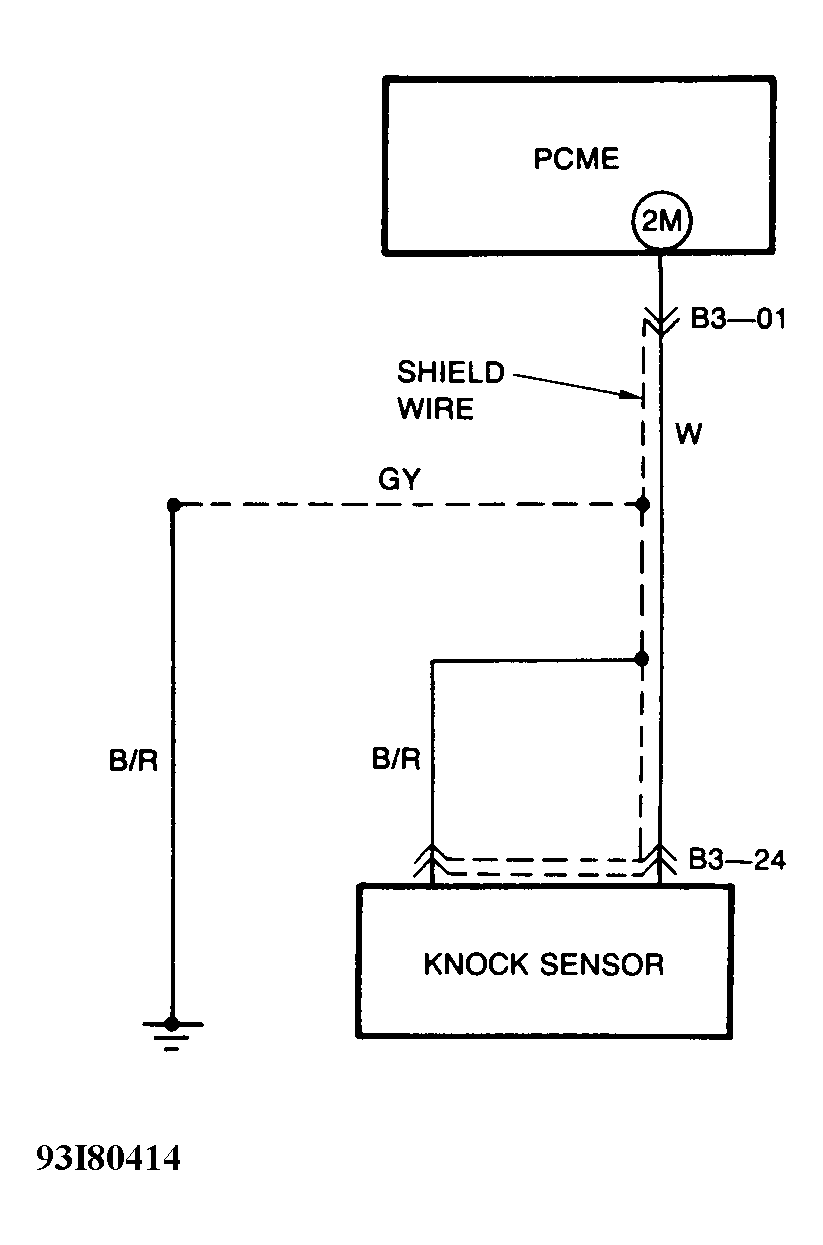

Fig 2: Trouble Code No. 5 Schematic (Knock Sensor)

G93I80414
