Driver Door

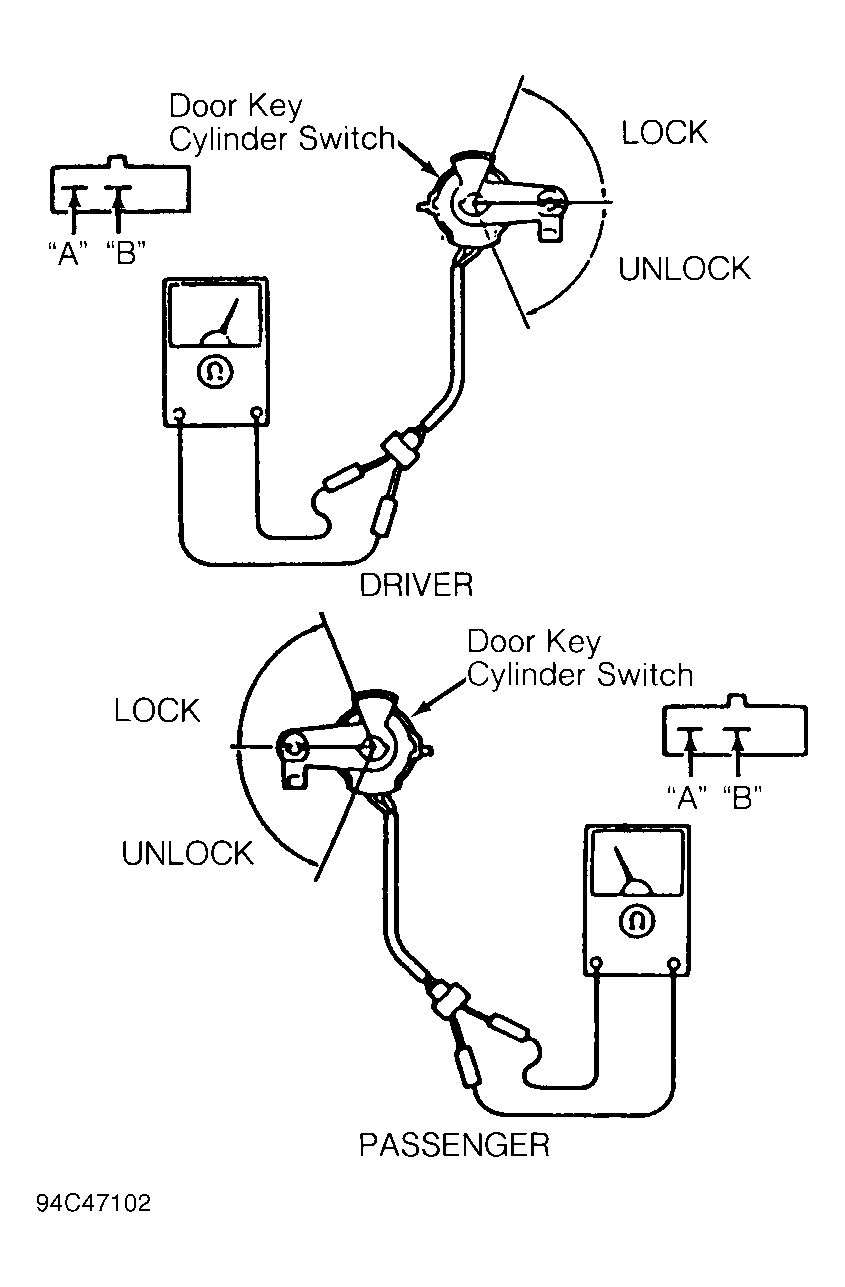

Remove door trim panel. Remove door key cylinder switch. Check continuity between terminals "A" and "B" of door key cylinder switch 3-pin connector. SeeFigure . With door key cylinder switch held in unlocked position, continuity should exist. With door key cylinder switch held in locked position, continuity should not exist. If continuity is not as specified, replace door key cylinder switch.
