Crankshaft Position Sensor: Installation

  1. Position crankshaft position sensor wires behind inner timing belt cover. Hold crankshaft position sensor in place. Install bolts finger tight. DO NOT  tighten. Reconnect wiring to engine harness retainer.
  2. Place Crankshaft Sensor Positioner (49 UN01 069) over crankshaft position sensor. Rotate crankshaft until outer vane of crankshaft pulley hub assembly engages both sides of crankshaft sensor positioner. SeeFig 2 . Tighten crankshaft position sensor screws.

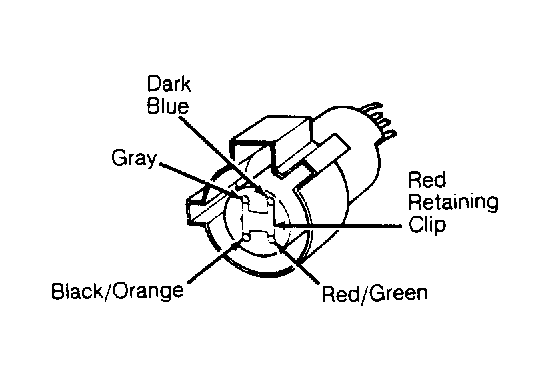

    Fig 1: Locating Crankshaft Sensor Connector Terminals (B2300)
    G90A15487Courtesy of MAZDA MOTORS CORP.

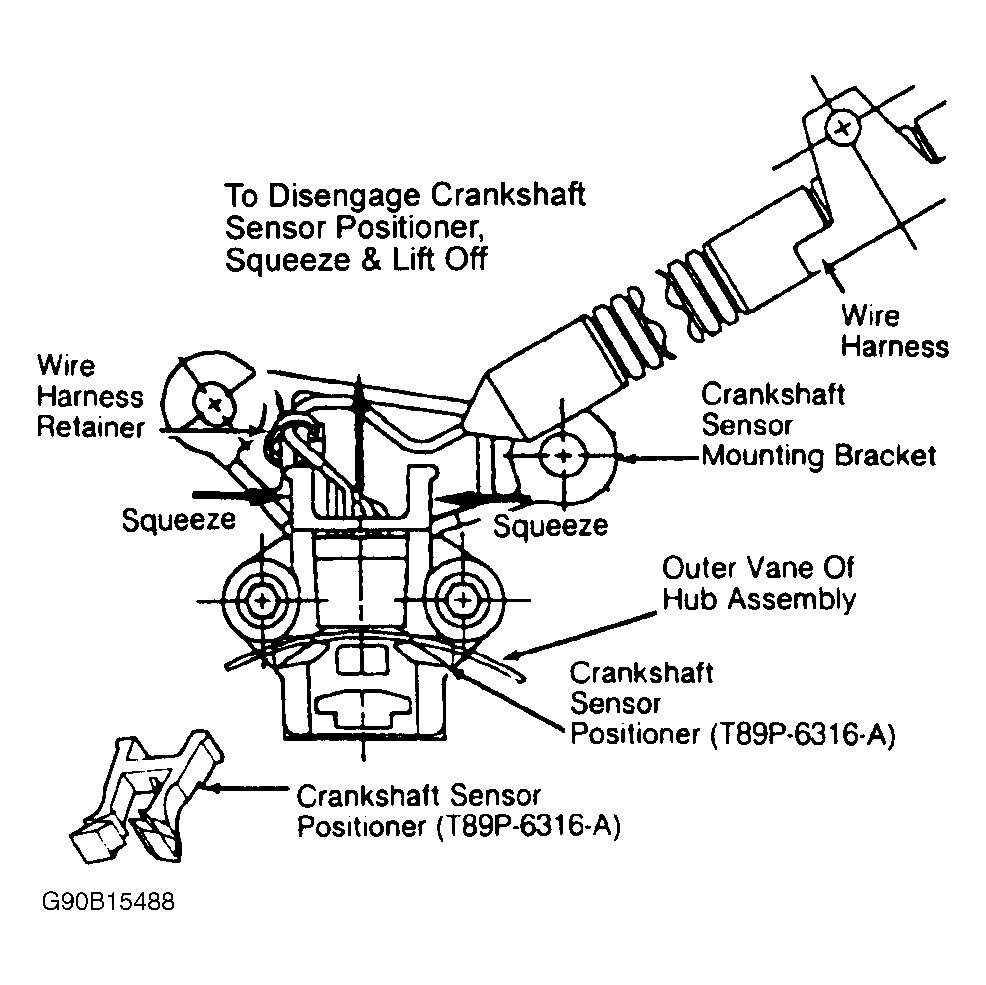

    Fig 2: Aligning Crankshaft Sensor (B2300)
    G90B15488Courtesy of FORD MOTOR CO.
    NOTE: Always turn engine in direction of normal rotation (clockwise as viewed from front of engine).
  3. Rotate crankshaft until vane on crankshaft pulley hub assembly is no longer engaged in crankshaft sensor positioner. Remove crankshaft positioner. Install NEW plastic wire harness retainer, and trim excess. Install wiring into sensor connector and secure with Red retainer. To complete installation, reverse removal procedures.
