Code 1: (Ignition Signal)

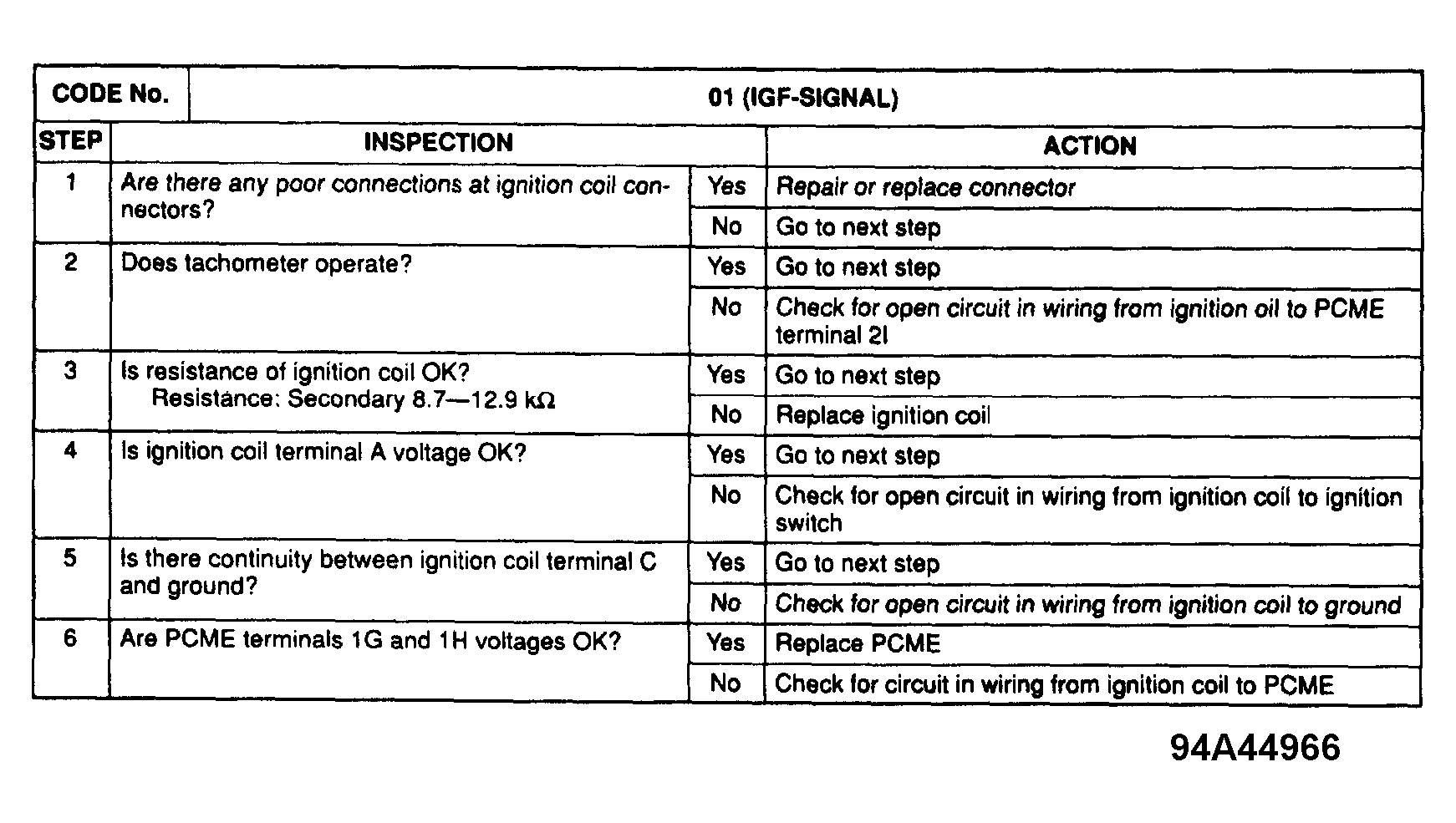

Fig 1: Trouble Code No. 1 Diagnostic Chart (Ignition Signal)
G94A44966Courtesy of MAZDA MOTORS CORP.

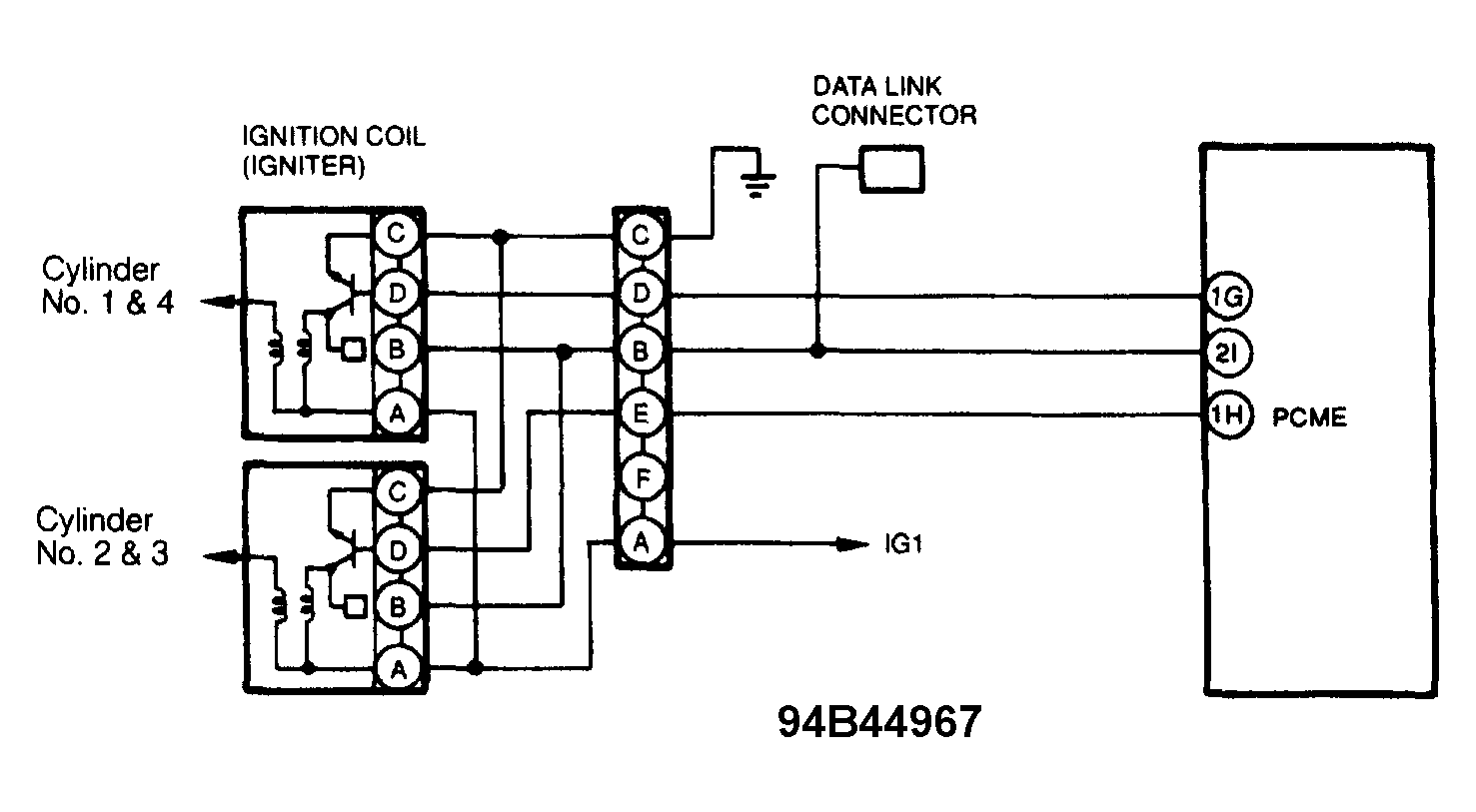

Fig 2: Trouble Code No. 1 Ignition System Circuit Diagram
G94B44967Courtesy of MAZDA MOTORS CORP.
