Code 16: (EGR Function Sensor) CKT Diagram

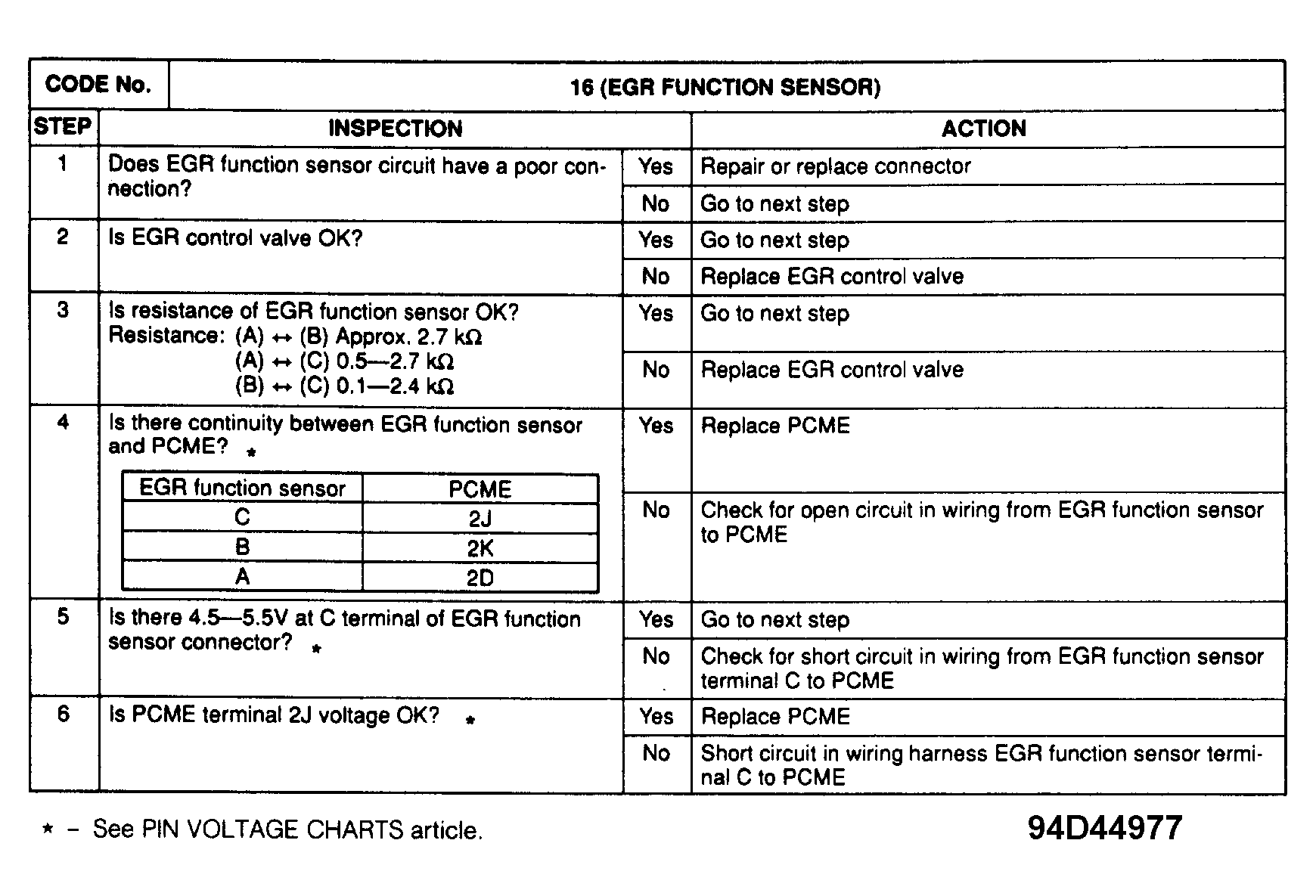

Fig 1: Trouble Code No. 16 Diagnostic Chart (EGR Function Sensor)
G94D44977

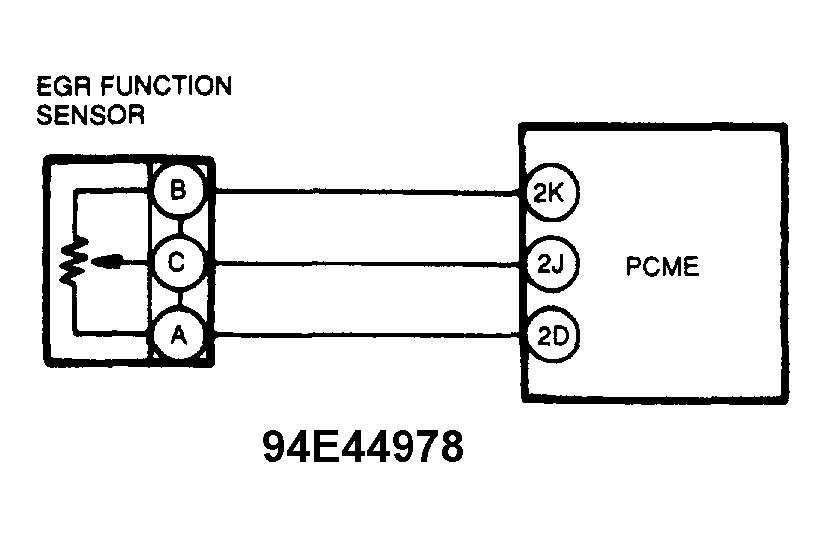

Fig 2: Trouble Code No. 16 Circuit Diagram (Miata)
G94E44978Courtesy of MAZDA MOTORS CORP.
