Speed Sensor

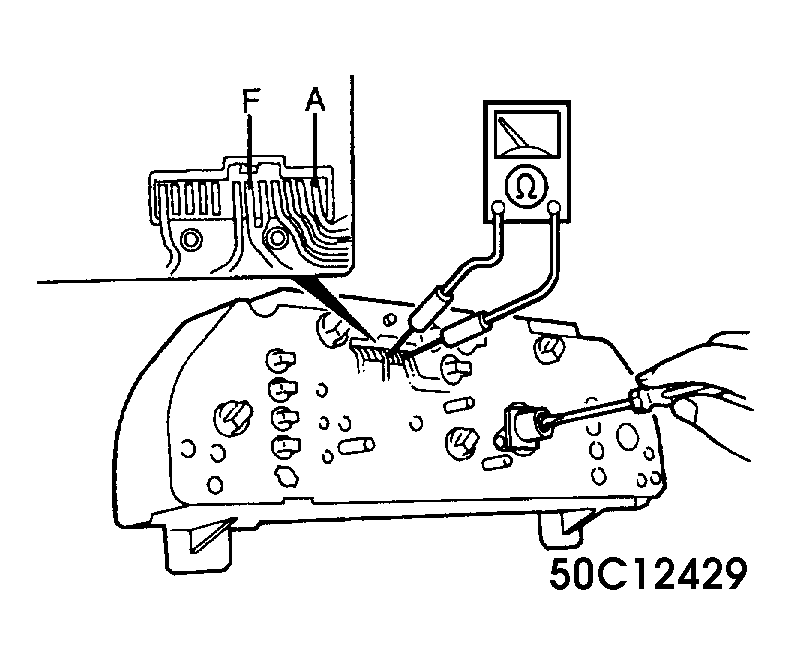

  1. Remove instrument cluster. Check for continuity between terminals "A" and "F" while rotating speedometer cable shaft. See Fig 1 .
  2. If there are not four pulses per shaft rotation, replace speedometer.
Fig 1: Warning Switch
G50C12429
