Code 8: Volume Air Flow Sensor

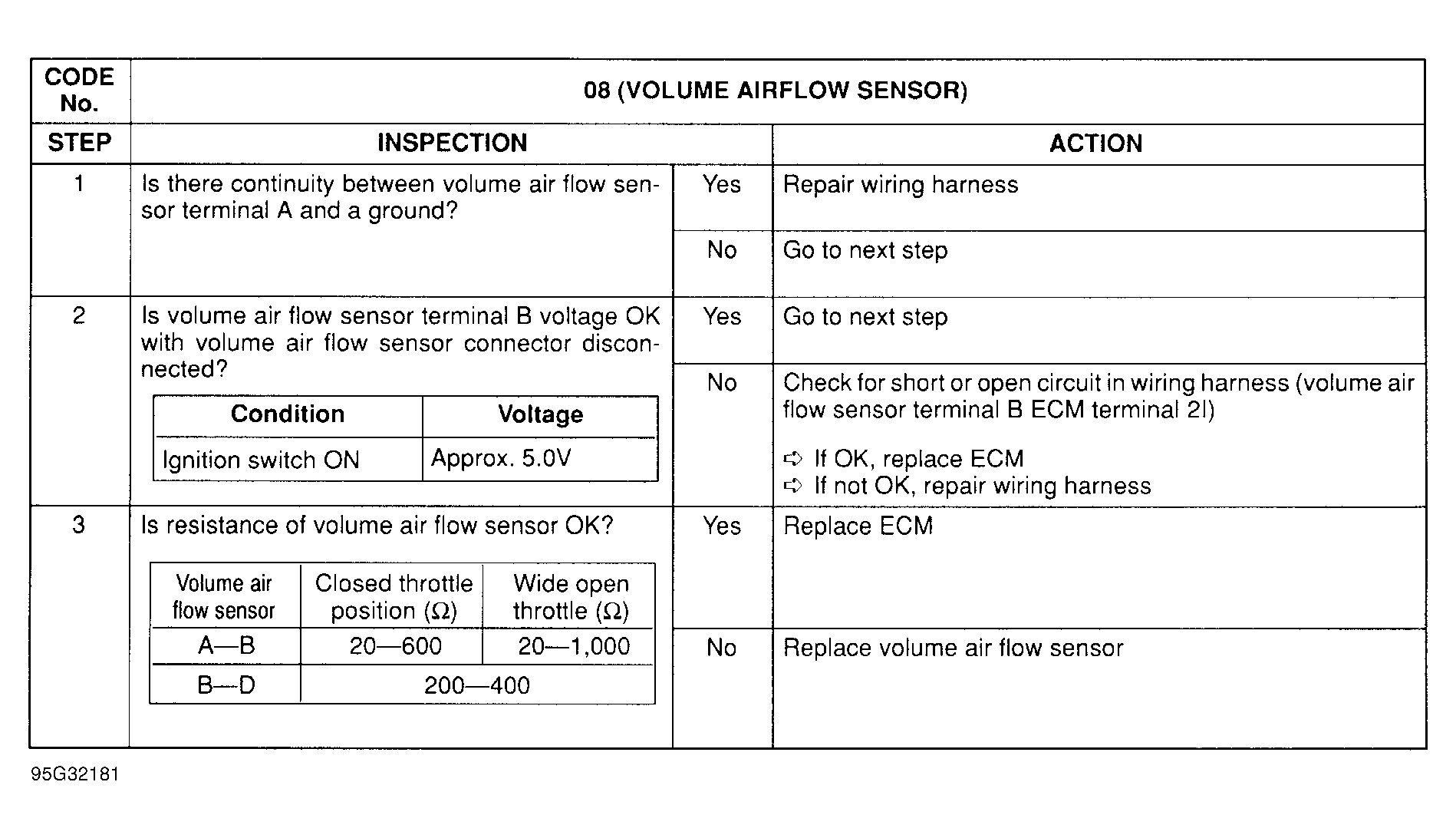

Fig 1: Trouble Code No. 8 Volume Air Flow Sensor
G95G32181

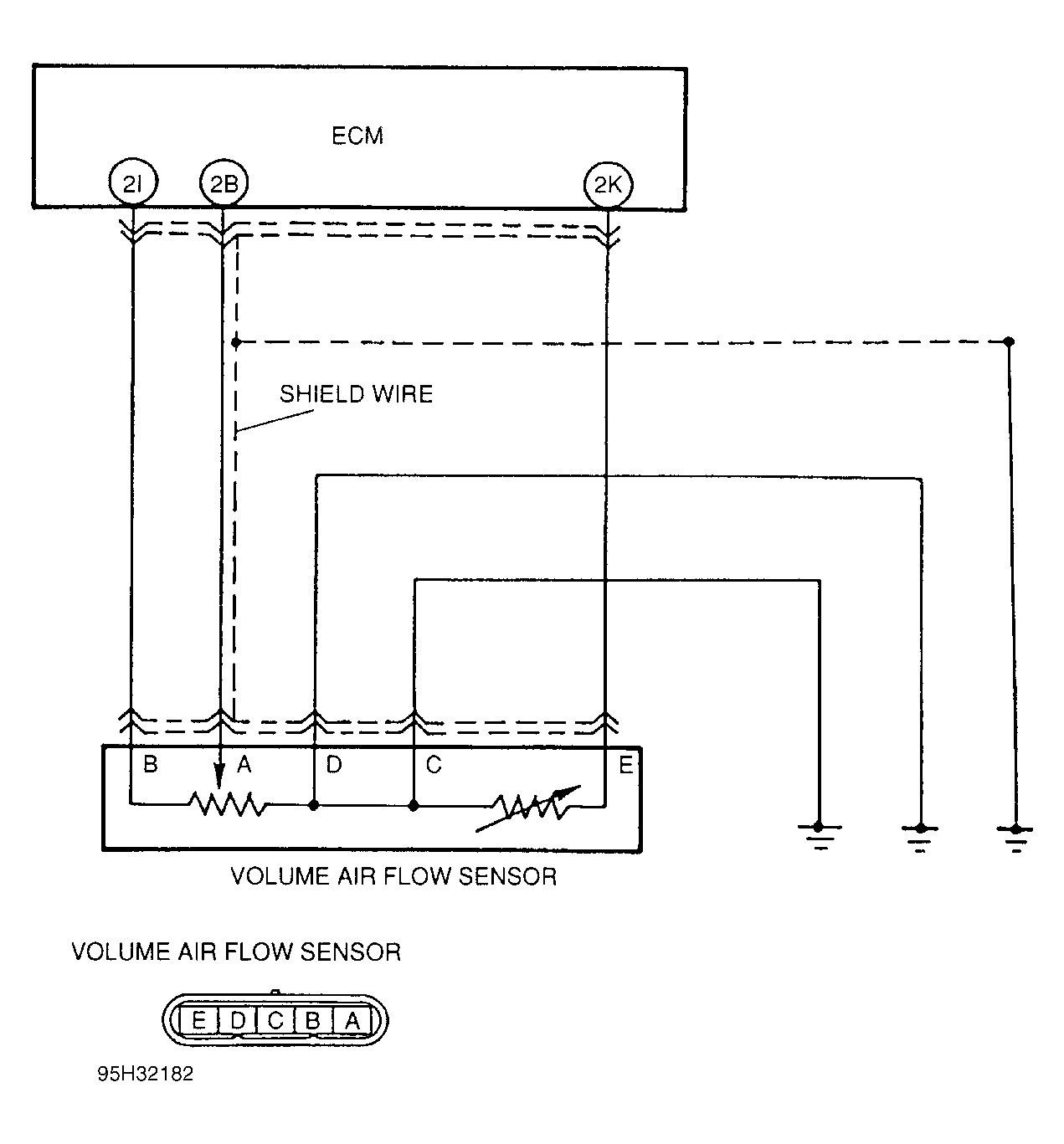

Fig 2: Trouble Code No. 8 Volume Air Flow Sensor Circuit Diagram
G95H32182
