Code 25: Pressure Regulator Control Solenoid Valve

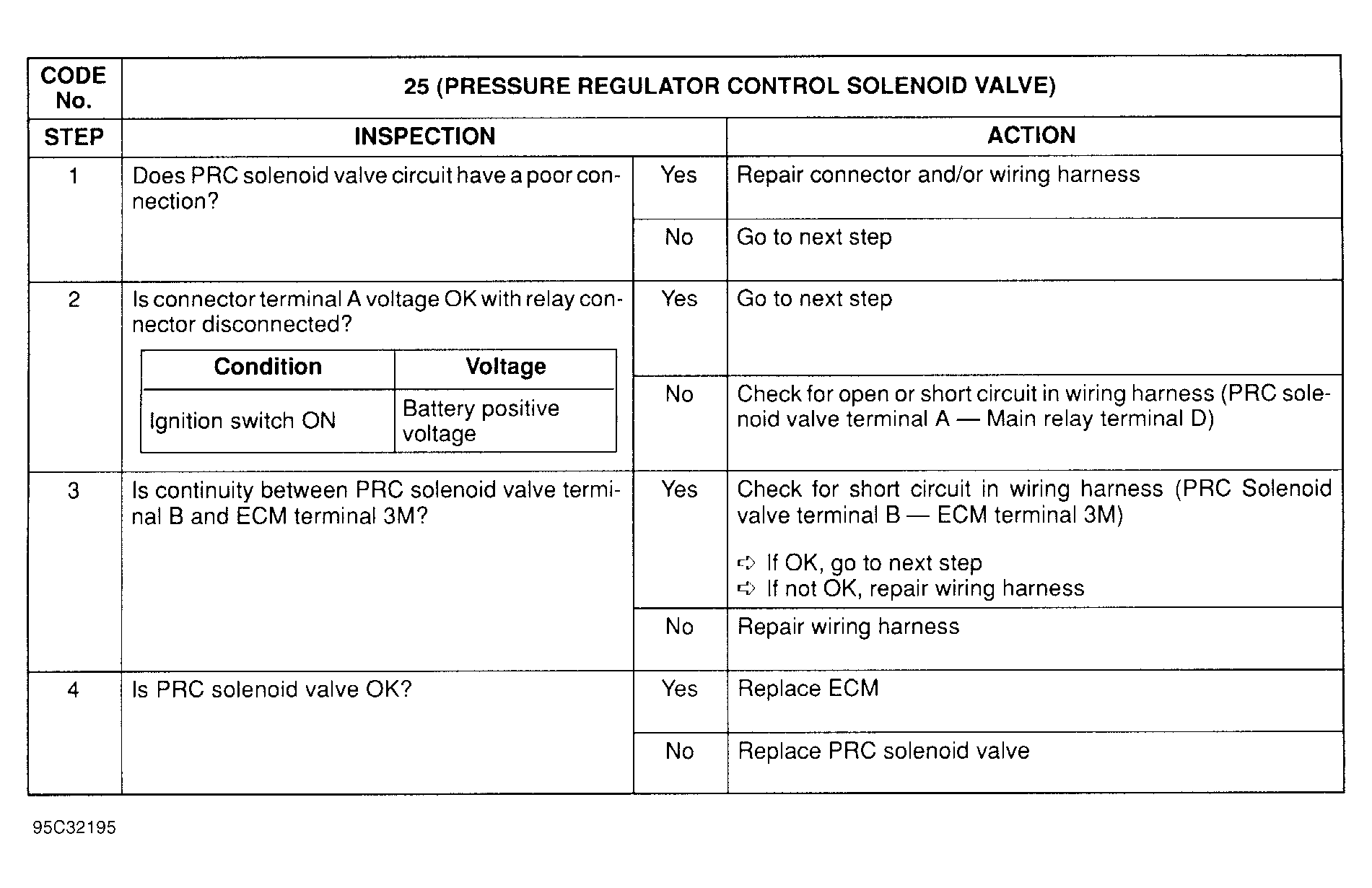

Fig 1: Trouble Code No. 25 Pressure Regulator Control Solenoid Valve
G95C32195

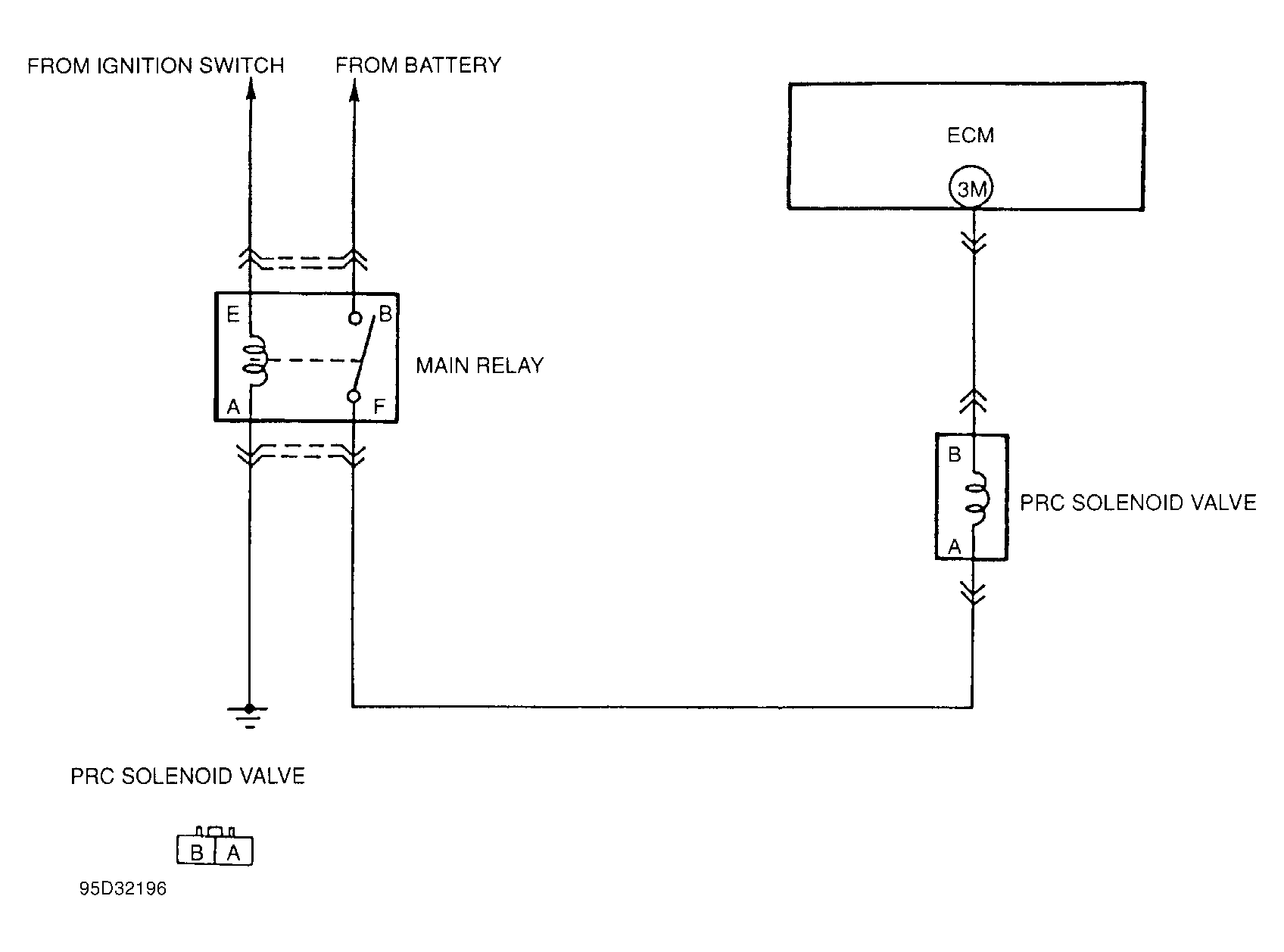

Fig 2: Trouble Code No. 25 Pressure Regulator Control Solenoid Valve Circuit Diagram
G95D32196
