Relay Locations

RELAY LOCATIONS

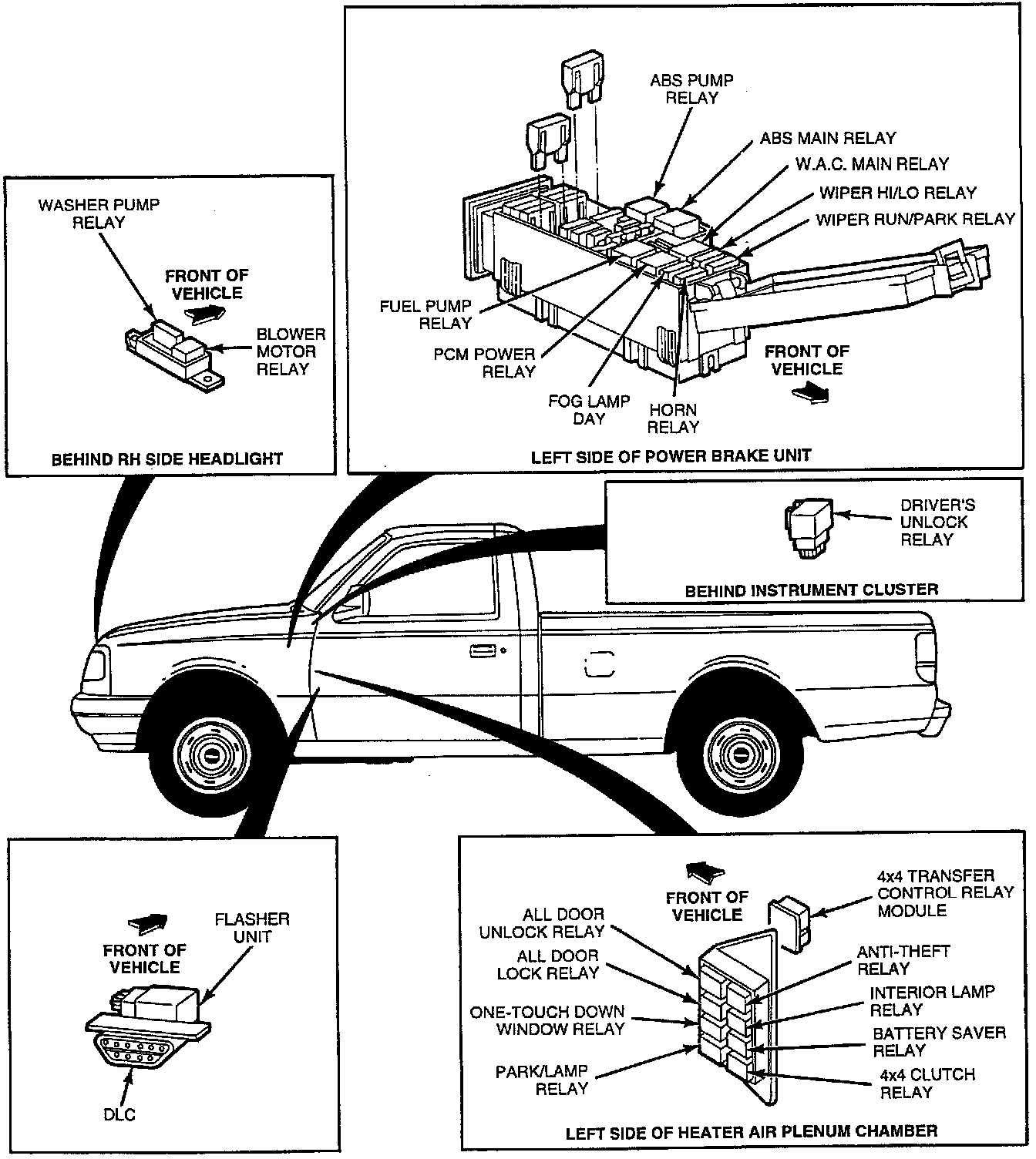

In engine compartment:
^ Fuel pump relay
^ PCM power relay
^ ABS pump relay
^ ABS main relay
^ W.A.C. relay
^ Fog lamp relay
^ Horn relay
^ Wiper hi/lo relay
^ Wiper run/park relay
^ Washer pump relay
^ Blower motor relay

In passenger compartment:
^ Flasher unit
^ 4x4 transfer control relay module
^ Driver's unlock relay
^ Anti-theft relay
^ Interior lamp relay
^ Battery saver relay
^ 4x4 clutch relay
^ All door lock relay
^ All door unlock relay
^ One-touch down window relay
^ Park/lamp relay
