Vacuum Diagrams: Introduction

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in BASIC TESTING article. This will assist in identifying improperly routed vacuum hoses which cause driveability and/or computer indicated malfunctions.

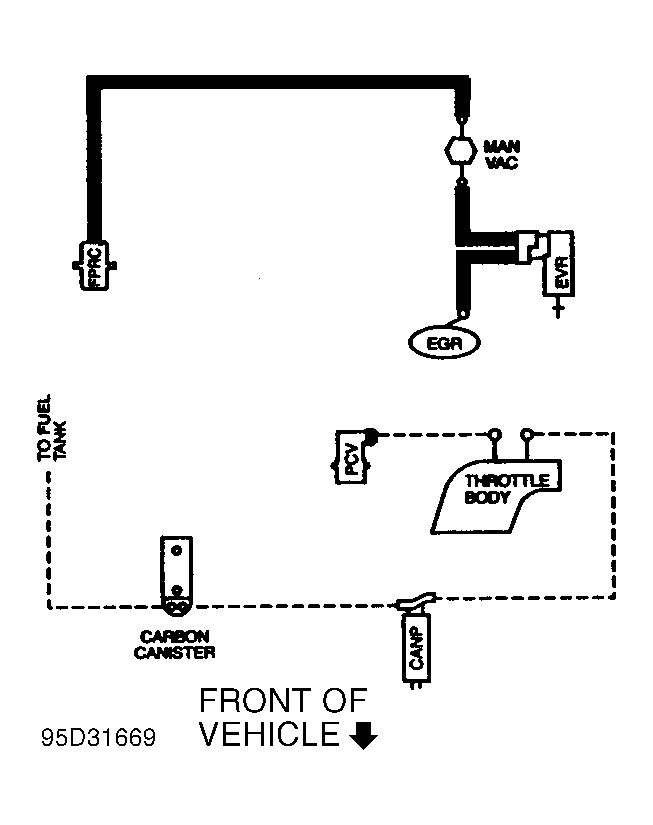

Fig 1: Vacuum Diagram (B2300)

Courtesy of FORD MOTOR CO.

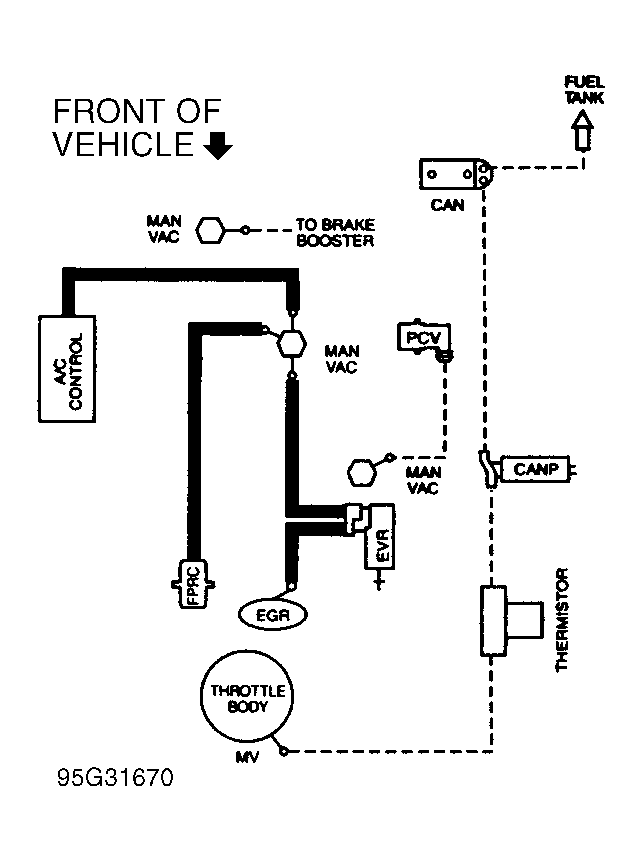

Fig 2: Vacuum Diagram (B3000)

Courtesy of FORD MOTOR CO.

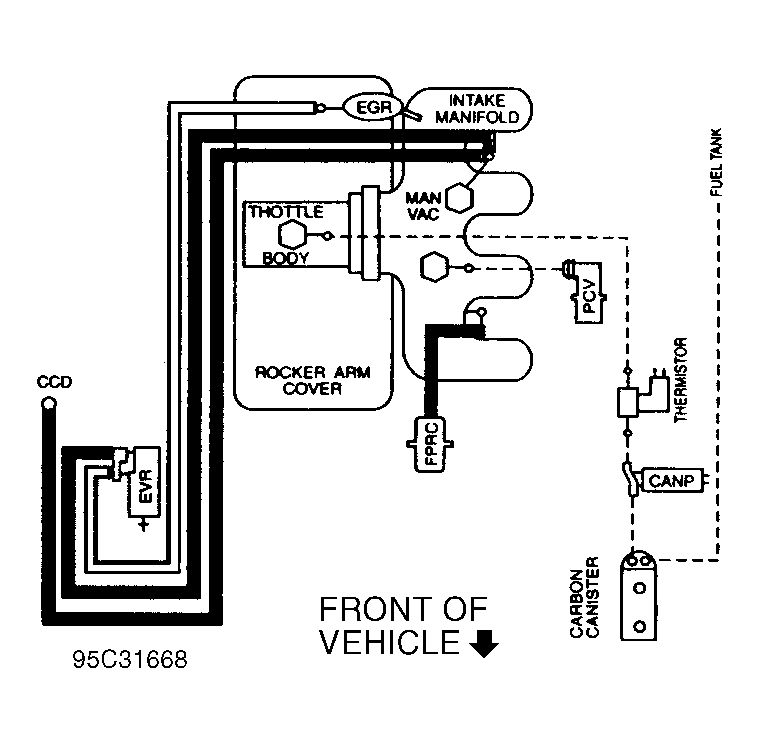

Fig 3: Vacuum Diagram (B4000)

Courtesy of FORD MOTOR CO.
