Abs Control Module Test

ABS Control Module (CM) is located behind left side of instrument panel. Unless indicated otherwise, test with ignition on and ABS control module connector connected. Measure voltage between ground and applicable terminal of ABS CM connector. If voltage is not as specified, check appropriate component listed under INSPECTION POINT. See Fig 1 -6. If components are okay, replace ABS CM.

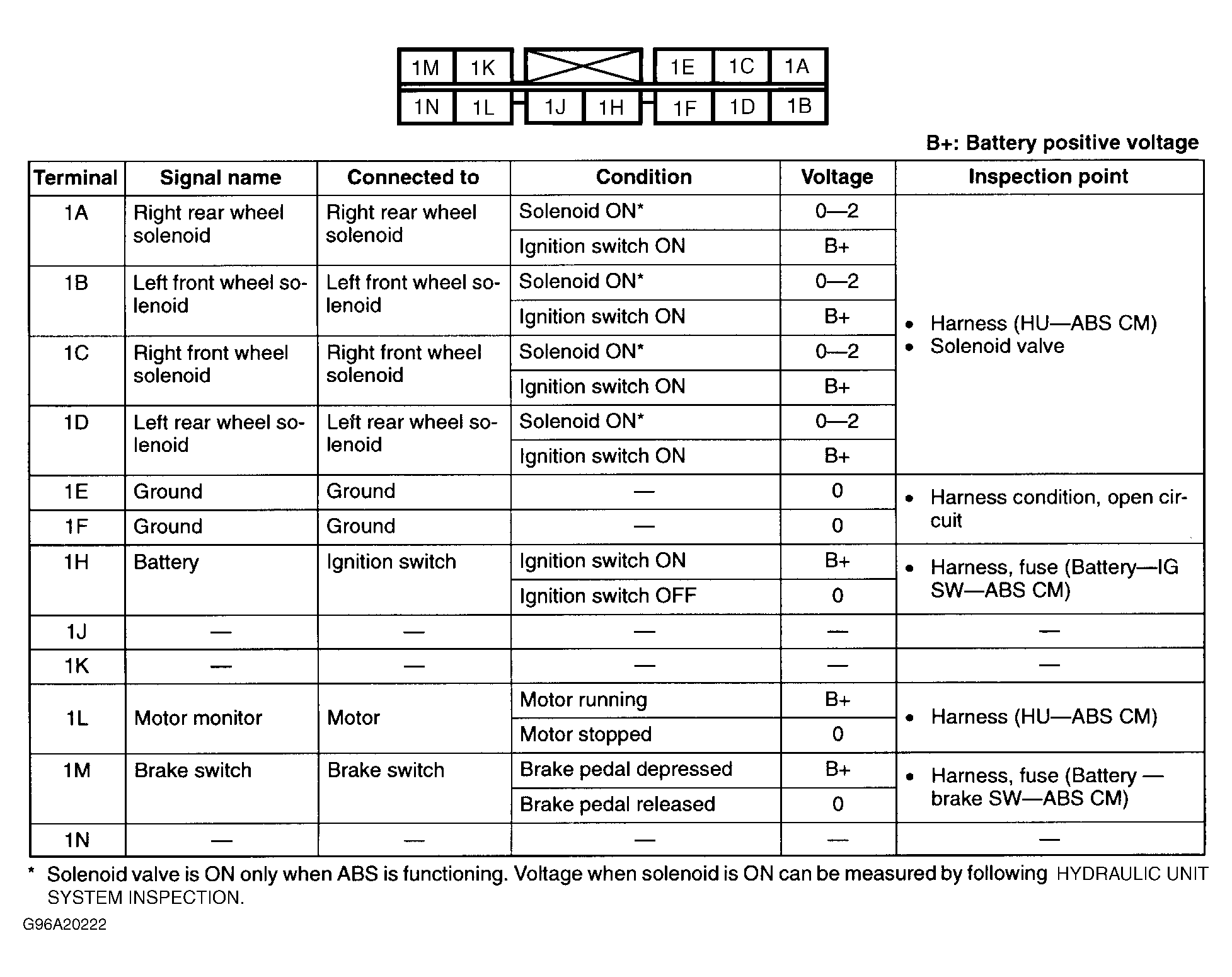

Fig 1: Testing ABS Control Module (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

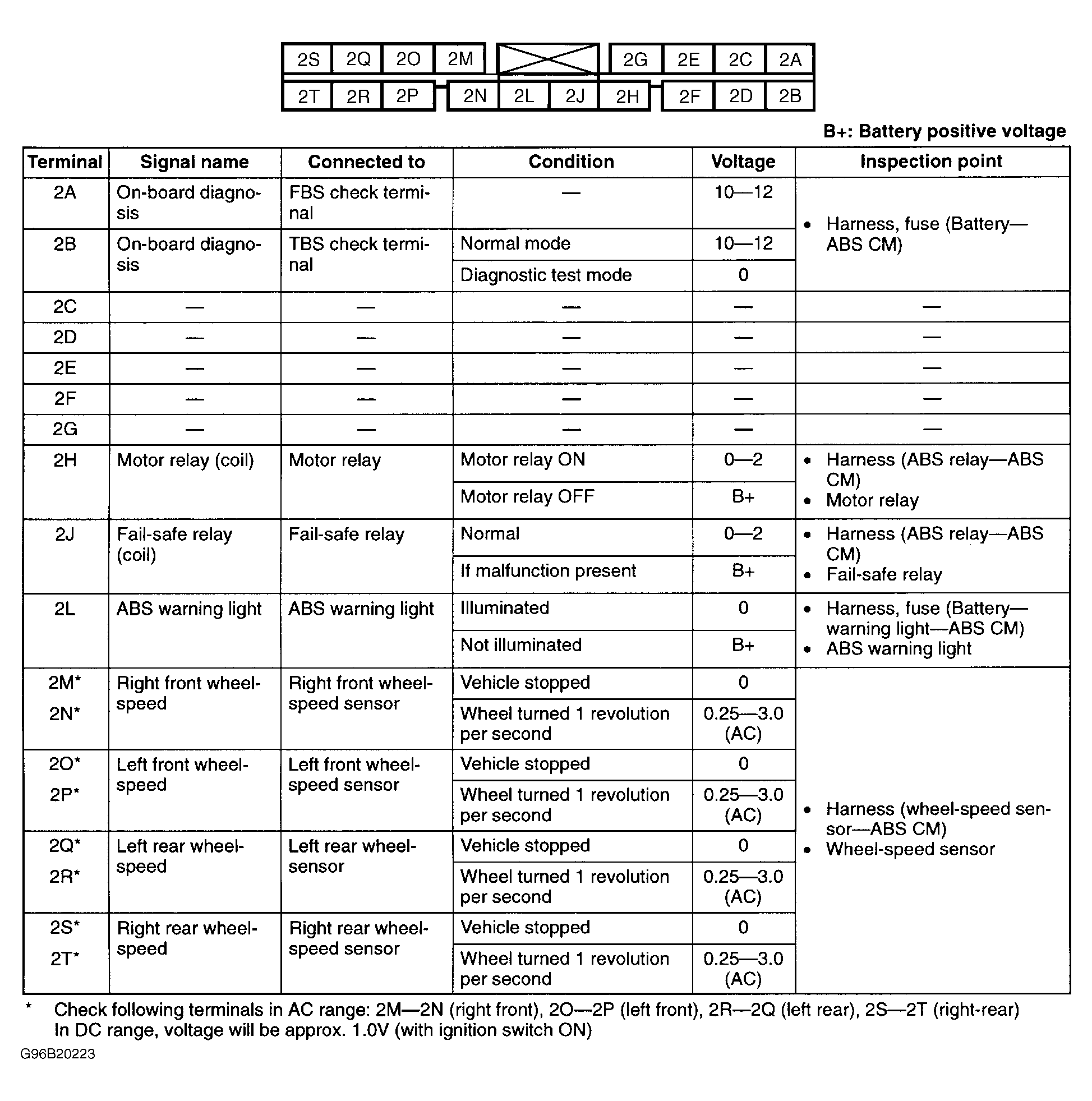

Fig 2: Testing ABS Control Module (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
