Trouble Code Identification Charts: Notes

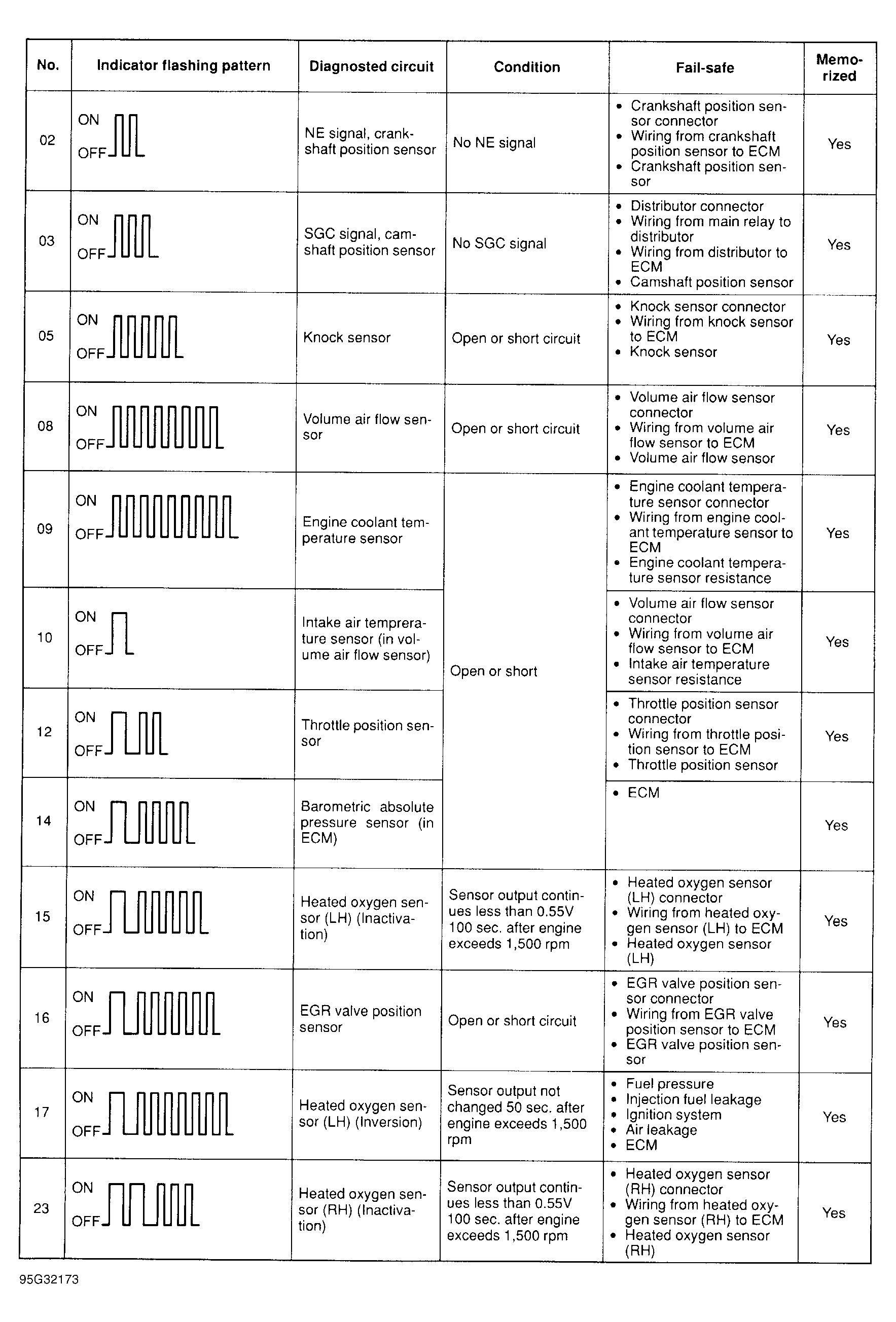

Fig 1: Diagnostic Trouble Code Definition Chart
G95G32173Courtesy of MAZDA MOTORS CORP.

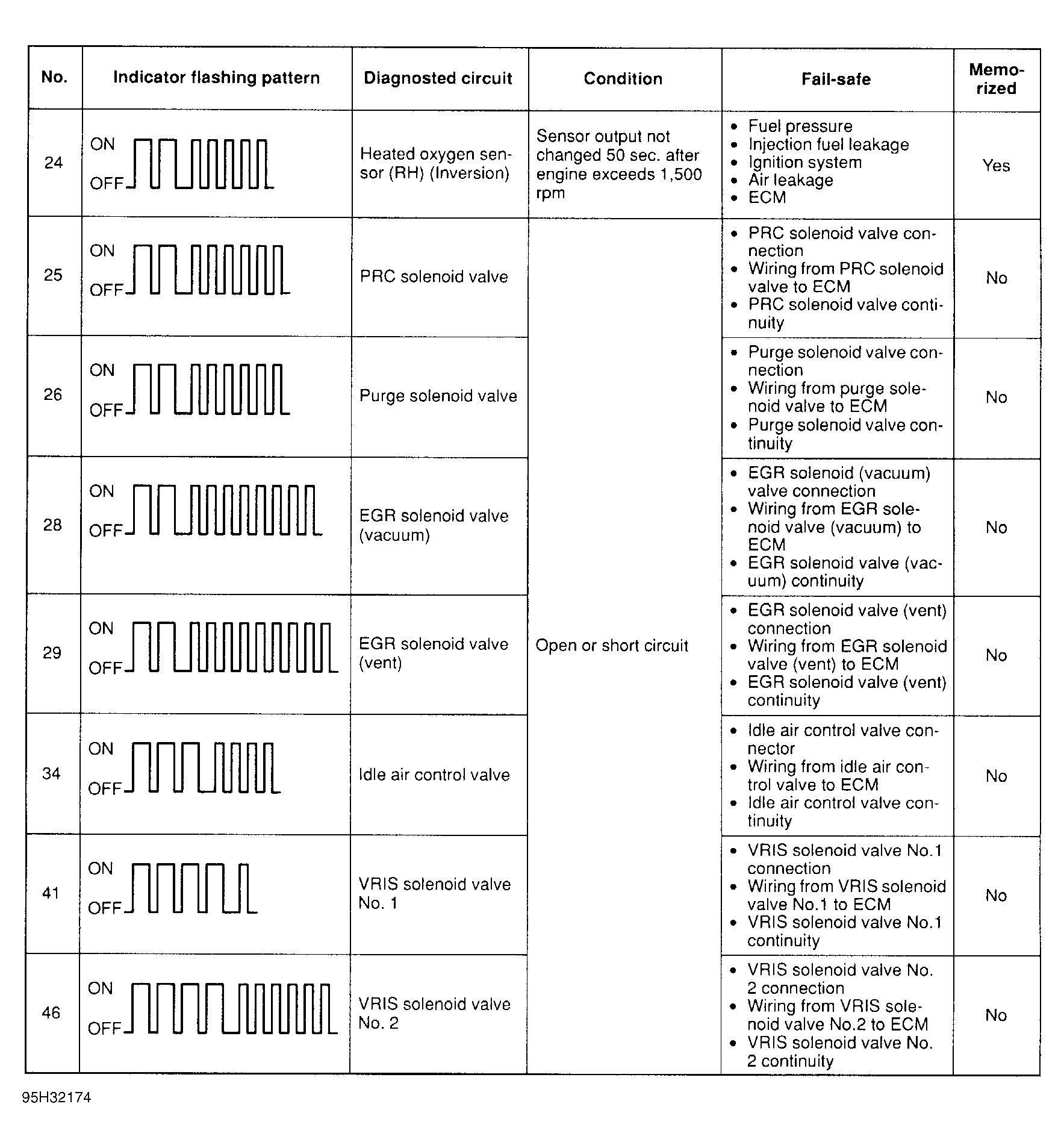

Fig 2: Trouble Code No. 2 (Distributor - SGT Signal)
G95H32174Courtesy of MAZDA MOTORS CORP.
